Ignition Switch

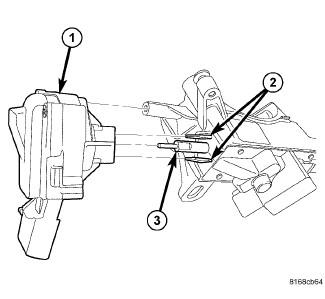

- Ensure the ignition switch is in the RUN position and the actuator shaft in the lock housing is in the RUN position.CAUTION:
Use care when installing the ignition switch on the lock cylinder housing to avoid damaging the key-in plunger (3).
- Align the ignition switch with the key-in plunger (3), actuator shaft and retaining tabs (2) located on the lock cylinder housing. Carefully install the switch, snapping it into place over the retaining tabs.
- Install the ignition switch (2) mounting screw (1). Tighten the screw to 2 N.m (18 in. lbs.).
