2012 Jeep Compass Limited, FWD, Automatic CVTFACTORY OEM SERVICE PROCEDURE
Diesel Engine

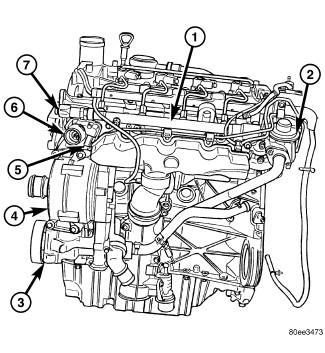

| 1 - FUEL RAIL |
| 2 - EGR VALVE |
| 3 - POWER STEERING PUMP |
| 4 - GENERATOR |
| 5 - COOLANT TEMPERATURE SENSOR |
| 6 - THERMOSTAT HOUSING |
| 7 - FUEL RAIL PRESSURE SENSOR |
- Disconnect negative battery cable.
- Remove engine cover. Refer to REMOVAL or REMOVAL .
- Partially drain coolant system below pressurized coolant recovery container. Refer to STANDARD PROCEDURE .
- Unplug coolant temperature sensor electrical connector.NOTE:
Capture any residual coolant that may flow.
- Remove coolant temperature sensor (5).
