2012 Jeep Compass 4WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Fuel Level Sending Unit And Sensor - Installation
INSTALLATION
CAUTION: Do not touch the terminals or the resistor card.
CAUTION: Do not handle the new fuel level sending unit by the float arm.
1. Position the new fuel level sending unit to the fuel pump module reservoir.

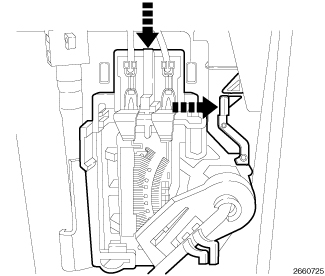

2. Gently push the fuel level sending unit down until the snap tab (2) engages.

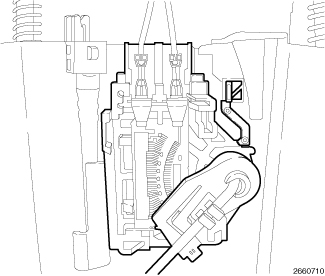

CAUTION: Ensure the fuel level sending unit wires are routed so they do not get pinched between the coils of the spring when the module is completely compressed.

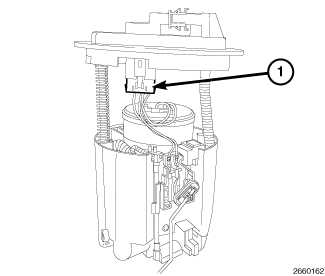

3. Connect the fuel level sending unit electrical connector.
4. Install the fuel pump module Fuel Tank - Installation.
