2012 Jeep Compass 2WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Timing Components: Service and Repair
STANDARD PROCEDURE - VALVE TIMING VERIFICATION
CAUTION: Painted or colored chain links are used during initial engine assembly and can not be relied upon for valve timing verification. These markings are in different locations for early production, late production and service parts. Only use TDC marks, cylinder head cover sealing surface and camshaft sprocket marks to verify valve timing or engine damage may result.
1. Remove engine cover.
2. Remove cylinder head cover Cylinder Head Cover(s) - Removal.

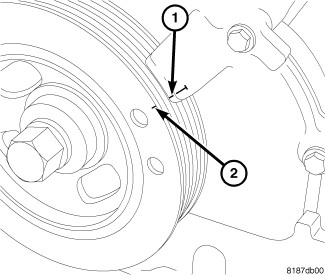

3. Set engine to TDC (1,2).

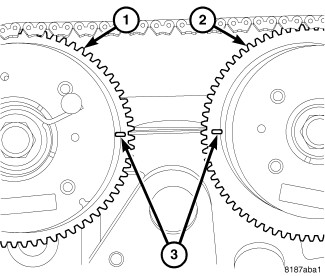

4. The marks on the camshaft sprockets (3) should be in line with the cylinder head cover sealing surface.
5. Install cylinder head cover Cylinder Head Cover(s) - Installation.
6. Install the engine cover.
