2012 Jeep Compass 2WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Component Tests and General Diagnostics
DIAGNOSIS AND TESTING - REMOTE KEYLESS ENTRY TRANSMITTER

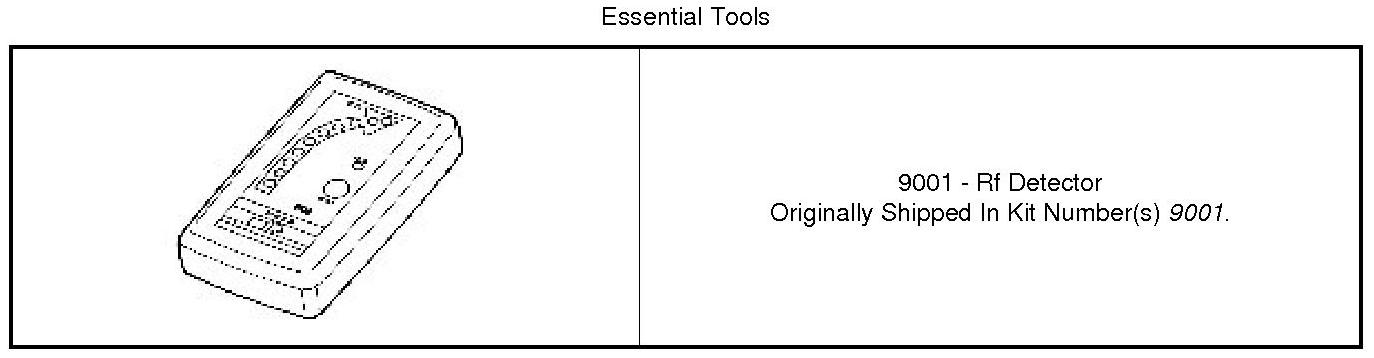

Special Tools:

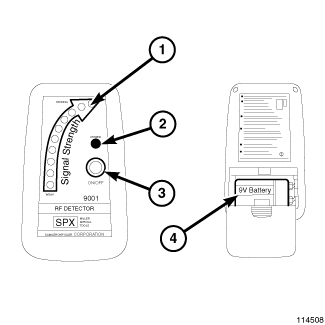

Figure 1 - RF DETECTOR 9001
Using special tool , first test to ensure that the transmitter is functioning. Typical testing distance is 2.5 centimeters (1 inch) for Asian transmitters and 30.5 centimeters (12 inches) for all others. To test, position the transmitter as shown. Press any transmitter button, then test each button individually. The tool will beep if a radio signal strength that lights five or more LEDs is detected. Repeat this test three times. If transmitter fails any of the test refer to the Diagnostic information.
