2011 Jeep Wrangler V6-3.8L
Power Inverter Module - Installation
2011 Jeep Wrangler V6-3.8LSECTION Power Inverter Module - Installation
INSTALLATION

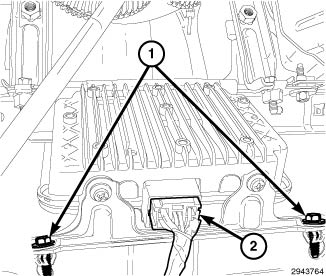

1. Install the power inverter module, install the lower power inverter retainers (1) and connect the wiring connector (2).

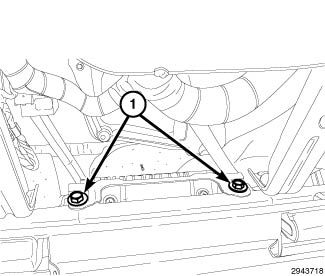

2. Install the upper power inverter retainers (1).

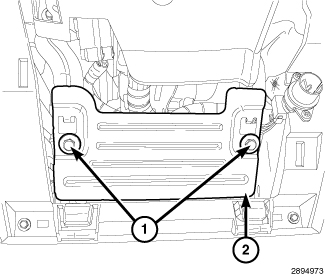

3. Install the reinforcement plate and retainers.

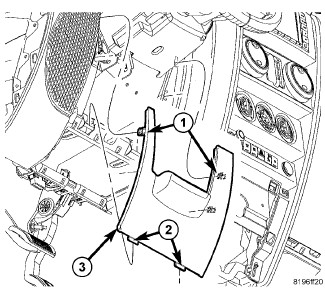

4. Install the steering column opening cover Steering Column Opening Cover - Installation.
5. Connect the negative battery cable.
