2011 Jeep Compass Limited, FWD, StandardFACTORY OEM SERVICE PROCEDURE
Diesel Engine

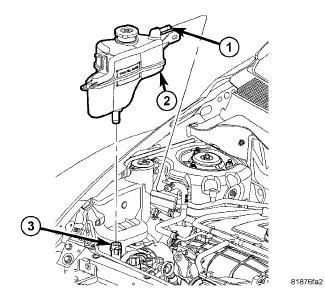

| 1 - RETURN FITTING |
| 2 - PRESSURE CONTAINER |
| 3 - COOLANT HOSE |
- Lower the pressure container (2) into the engine compartment and connect the coolant hose (3) at bottom of the pressure container (2).
- Position the pressure container (2) and install the mounting bolts. Tighten the mounting bolts to 4 N.m (35 lbs. in.).
- Connect the coolant return hose to the coolant recovery container (2).
- Refill the cooling system. Refer to Standard Procedure .
