2011 Jeep Compass Base, 2.0 A, Standard

PLUG, Glow: Installation: Installation

2011 Jeep Compass Base, 2.0 A, StandardSECTION Installation

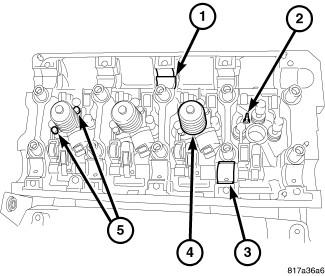

Fig 1: Glow Plugs

Courtesy of CHRYSLER LLC

Clean glow plug bay and install glow plug.
Tighten glow plugs to 10 N.m (89 lbs. in.).
Connect glow plug electrical connector.
Install cylinder head cover.
Install engine cover.
Connect negative battery cable.
