2011 Jeep Compass 4WD L4-2.0LFACTORY OEM SERVICE PROCEDURE
Engine Specifications
2.0L ENGINE

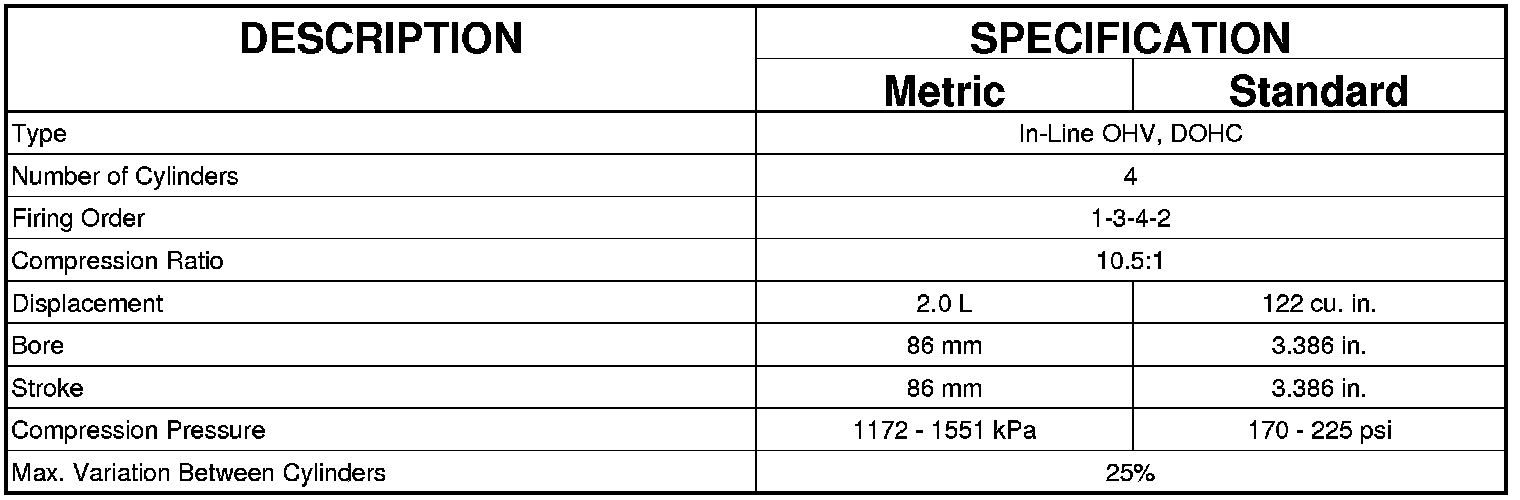

GENERAL SPECIFICATIONS

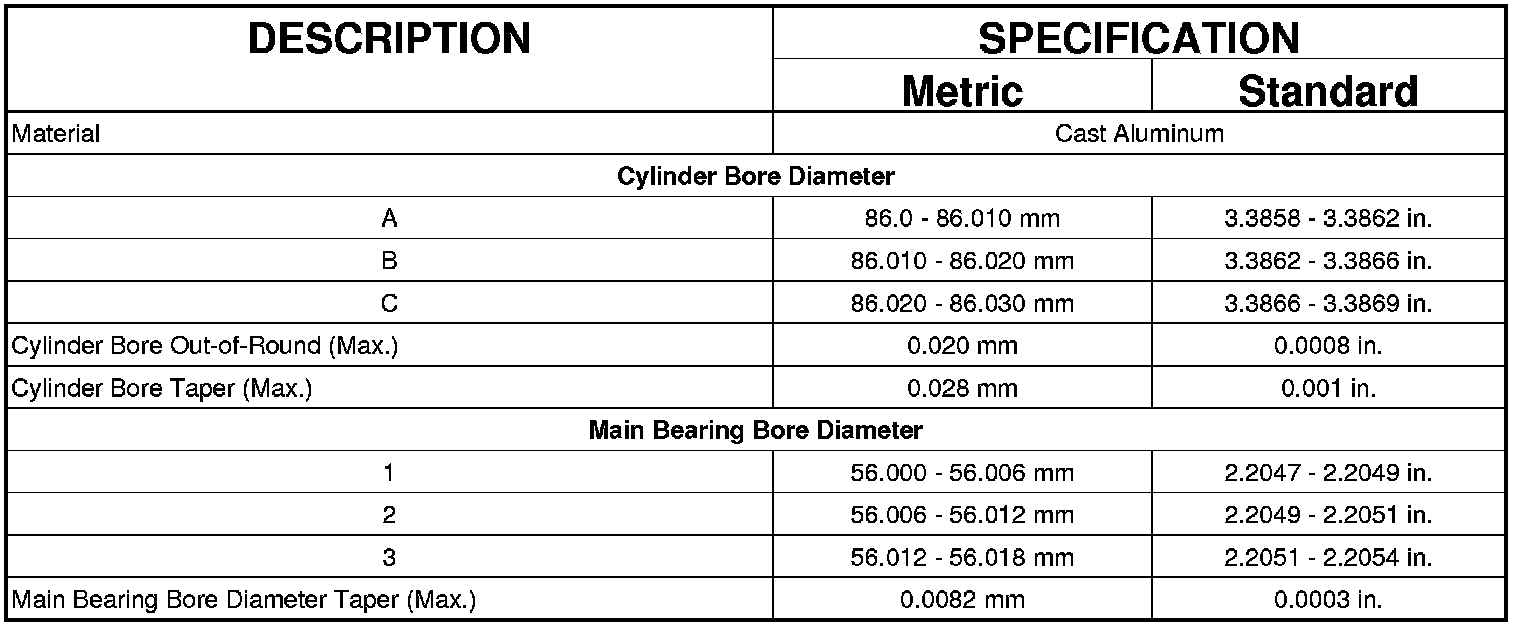

CYLINDER BLOCK

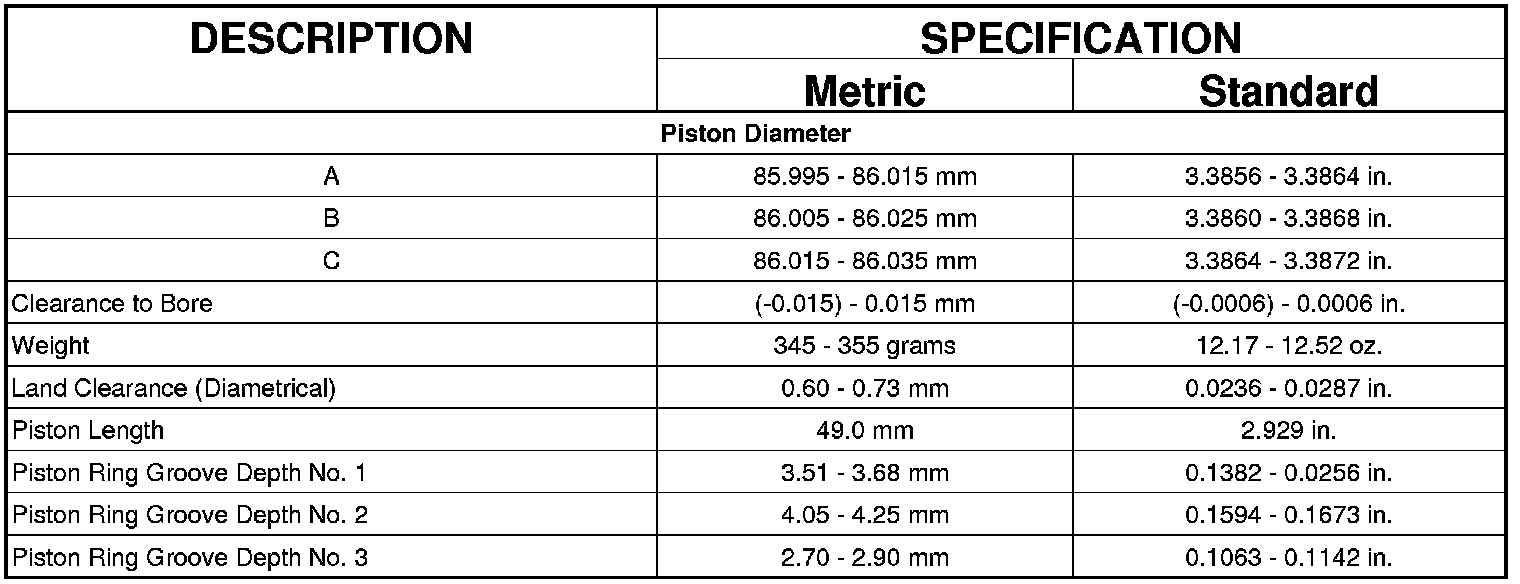

PISTONS

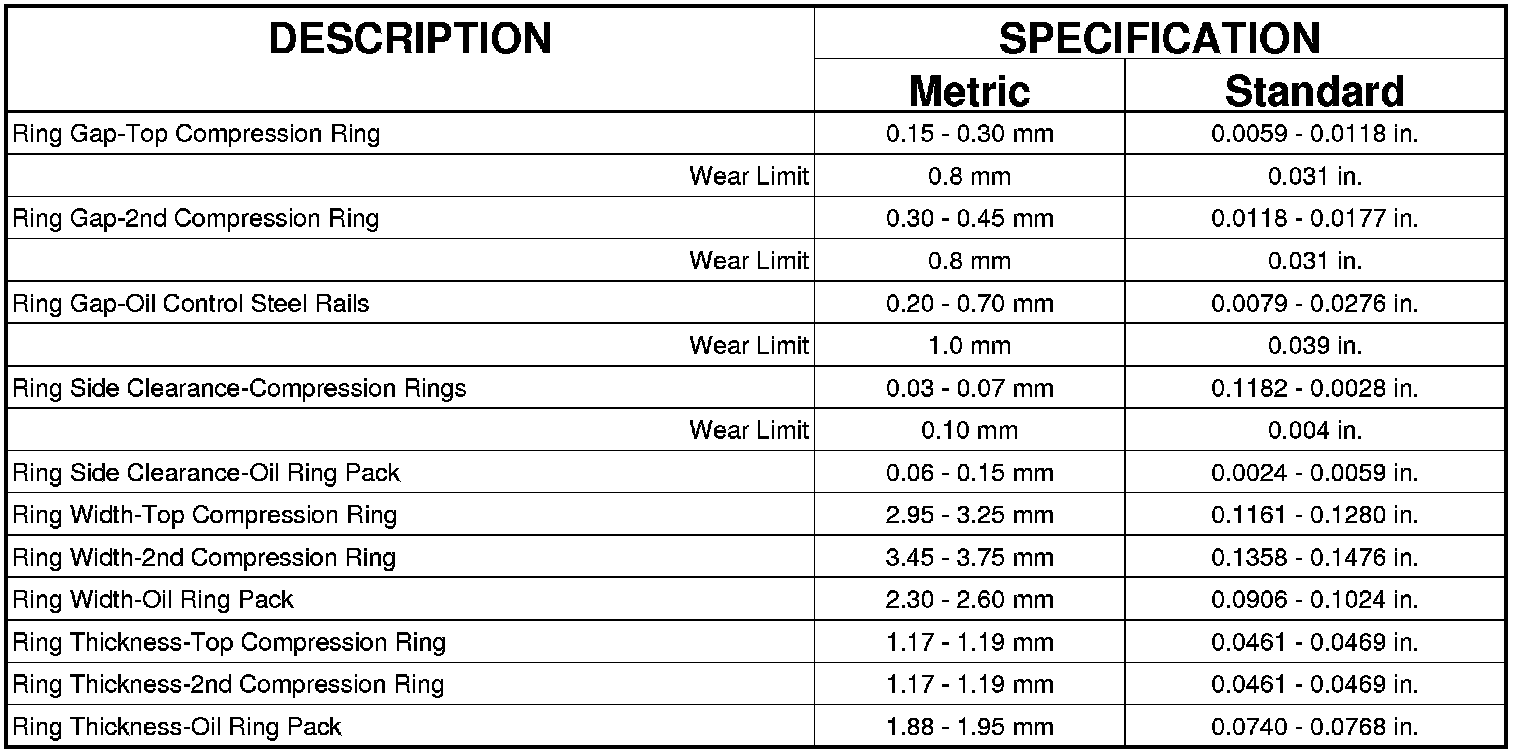

PISTON RINGS

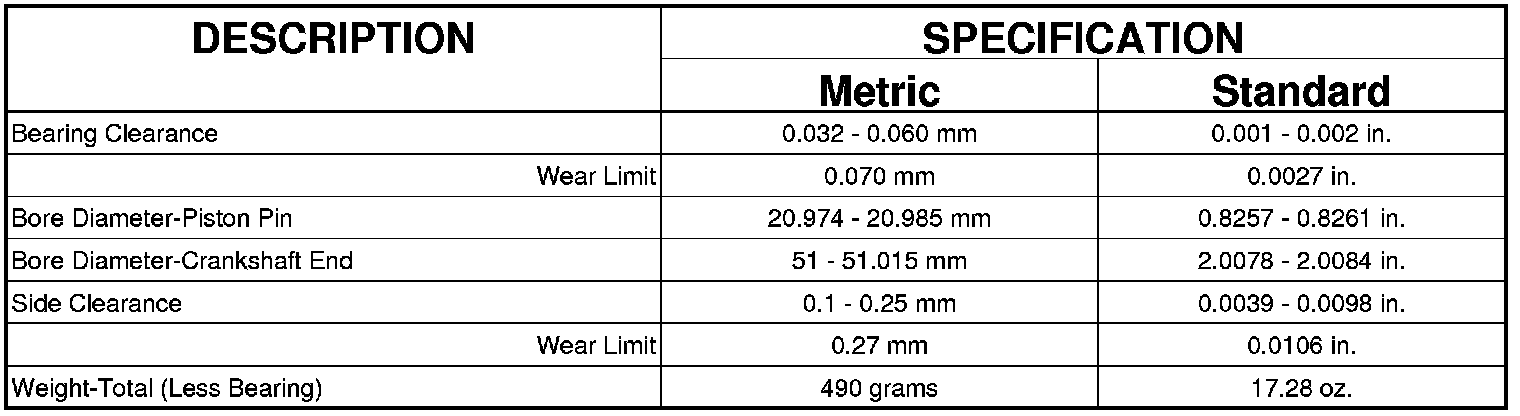

CONNECTING ROD

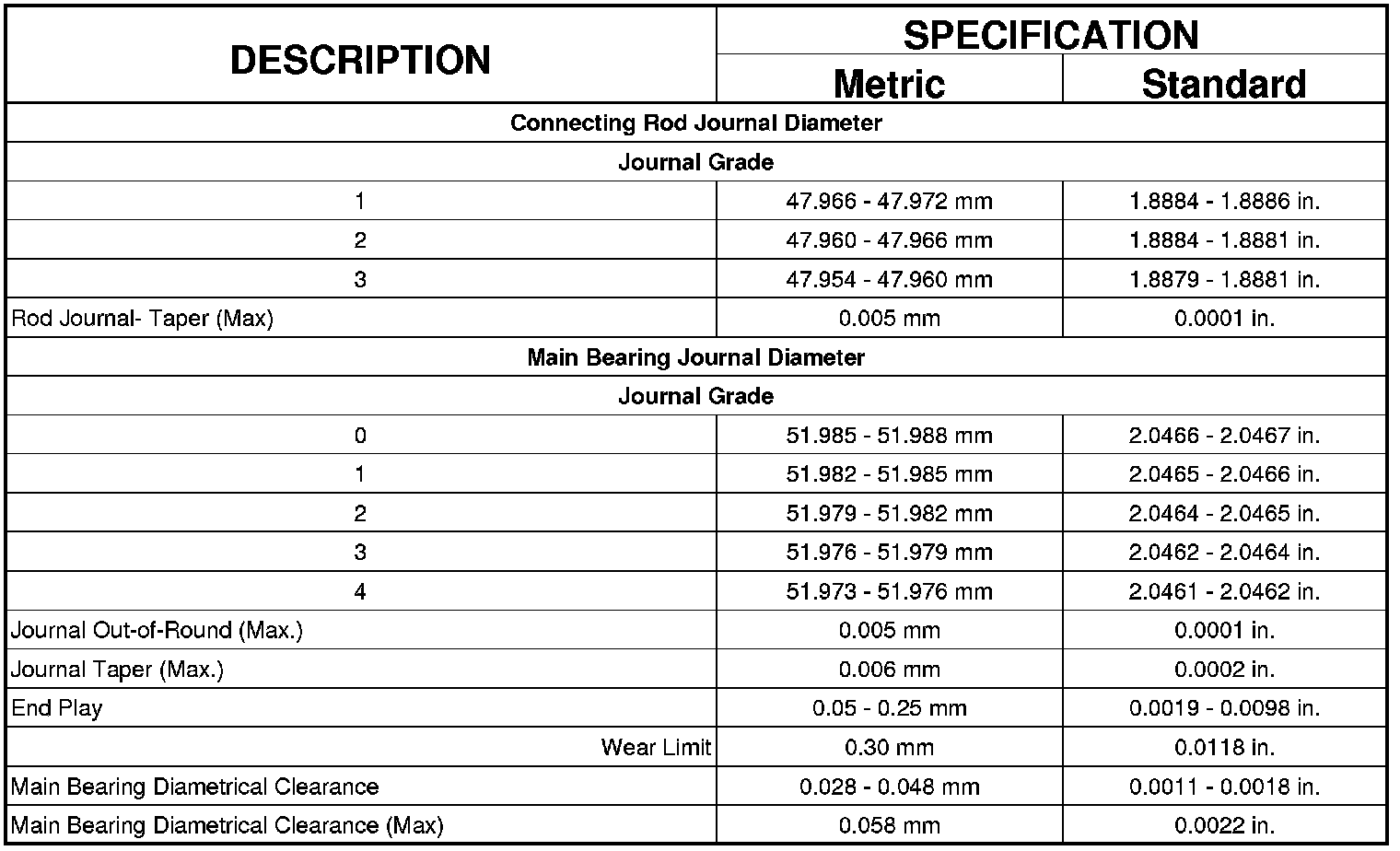

CRANKSHAFT

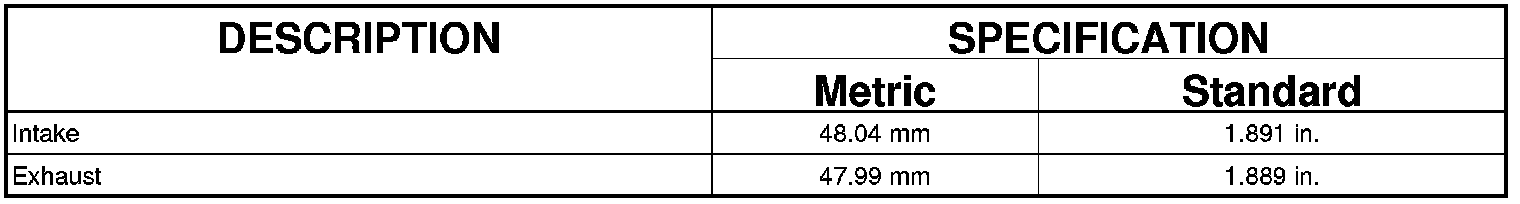

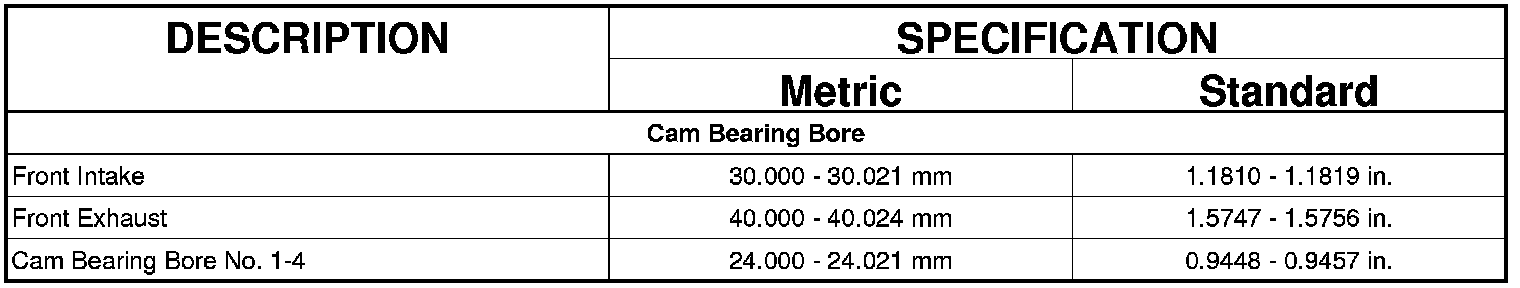

CYLINDER HEAD CAMSHAFT BEARING BORE DIAMETER

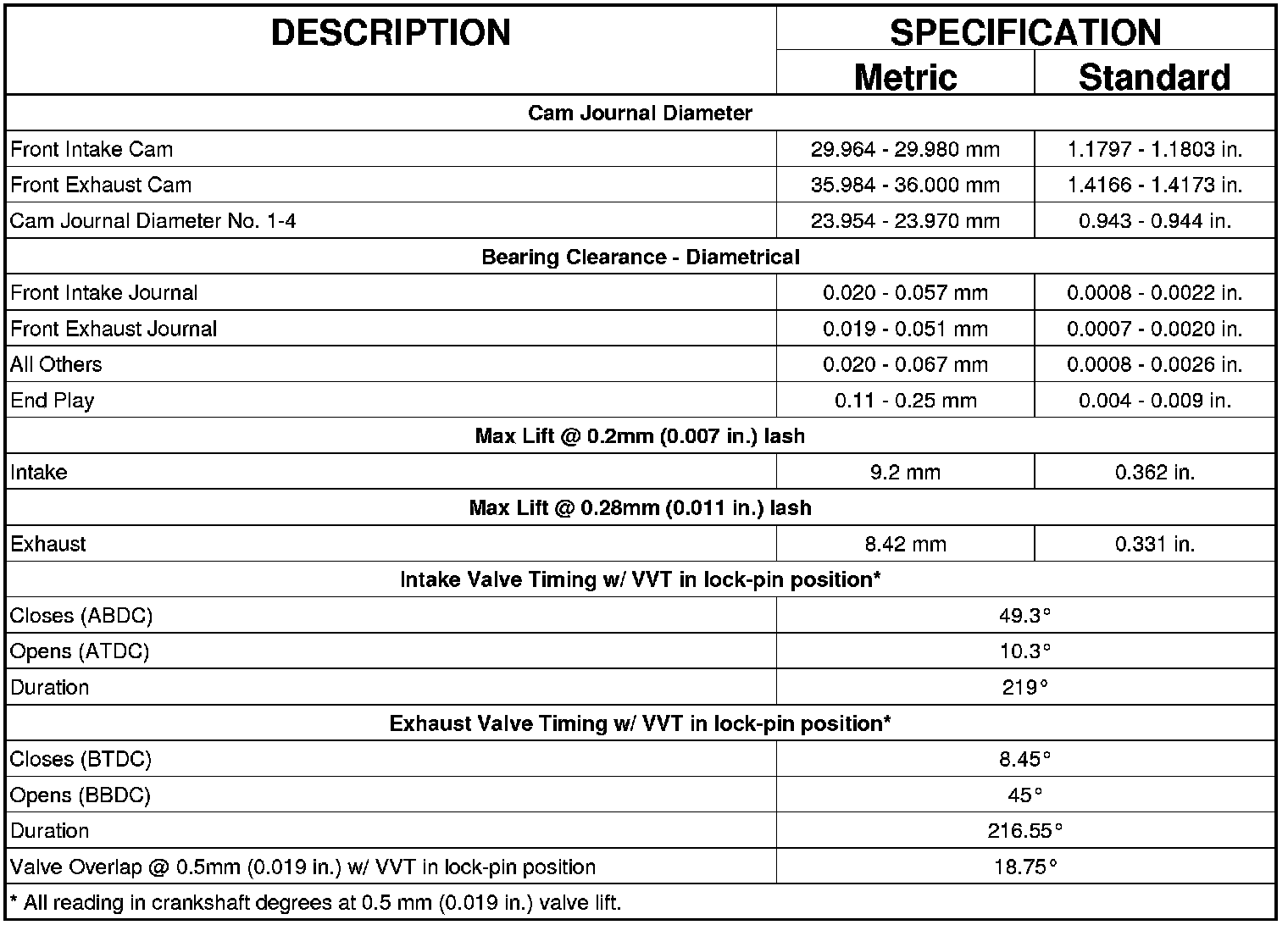

CAMSHAFT

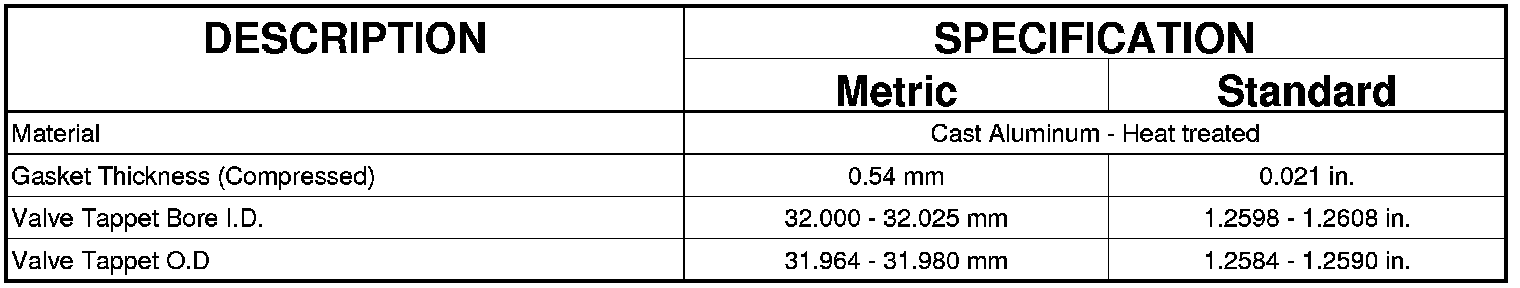

CYLINDER HEAD

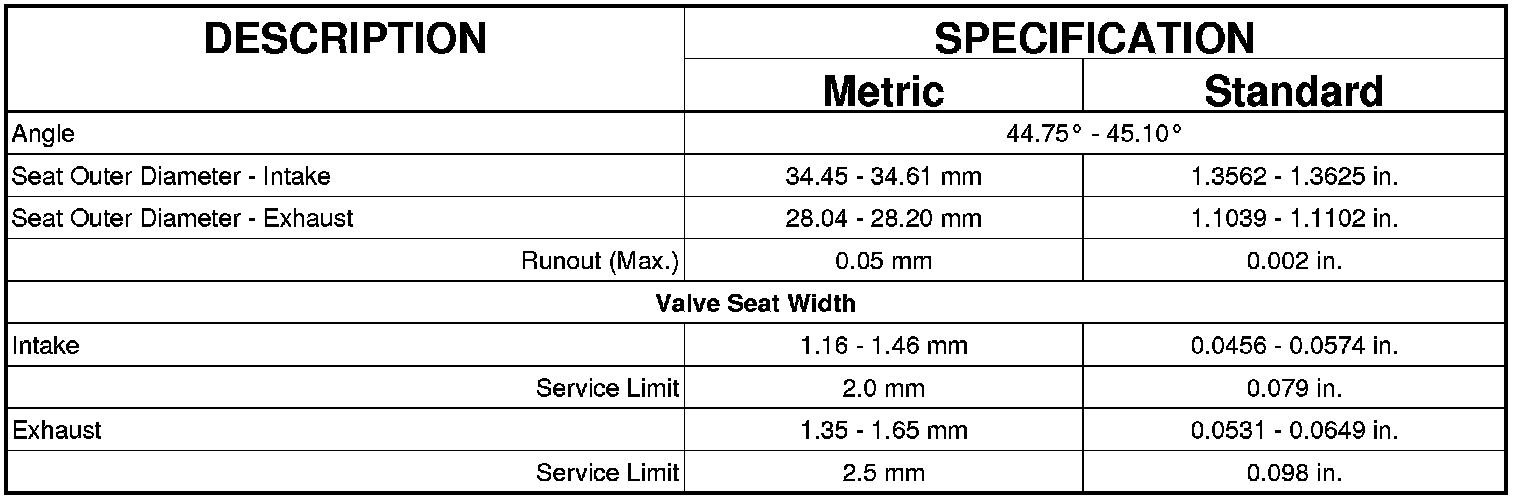

VALVE SEAT

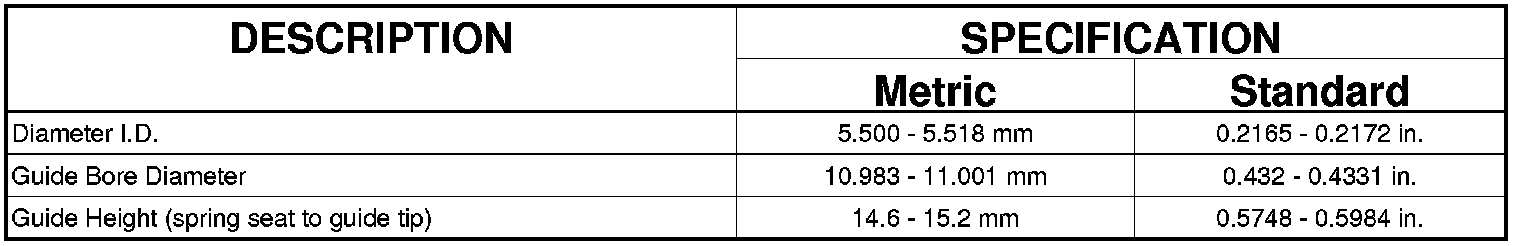

VALVE GUIDE

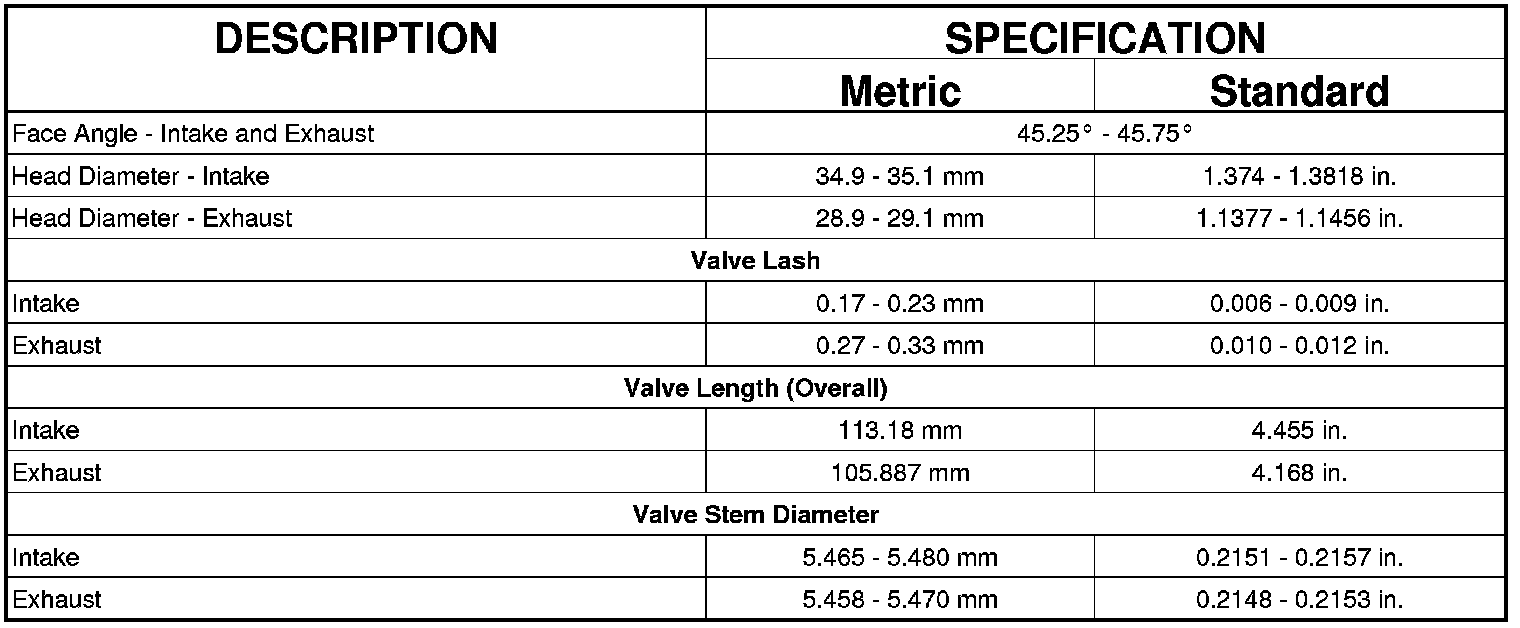

VALVES

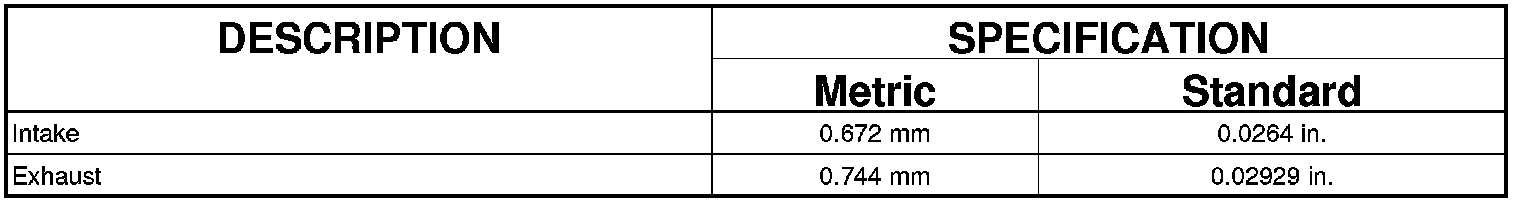

VALVE MARGIN
VALVE STEM TIP

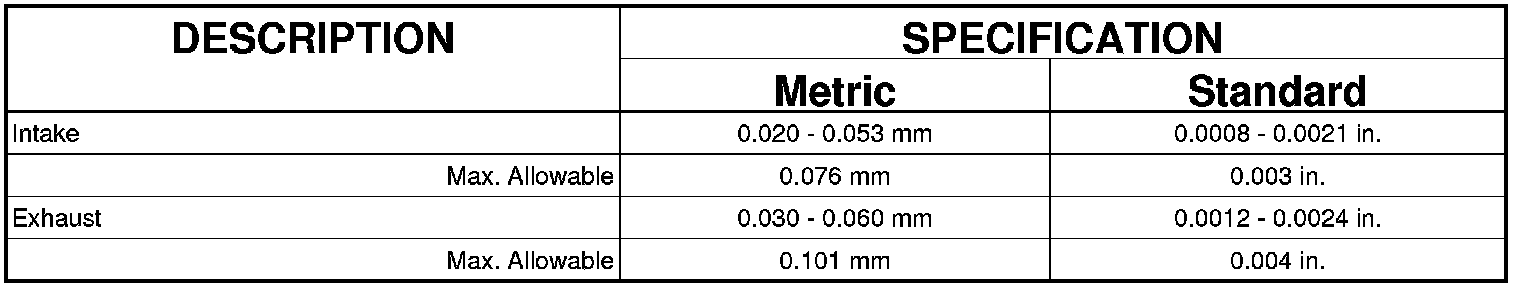

VALVE STEM TO GUIDE CLEARANCE

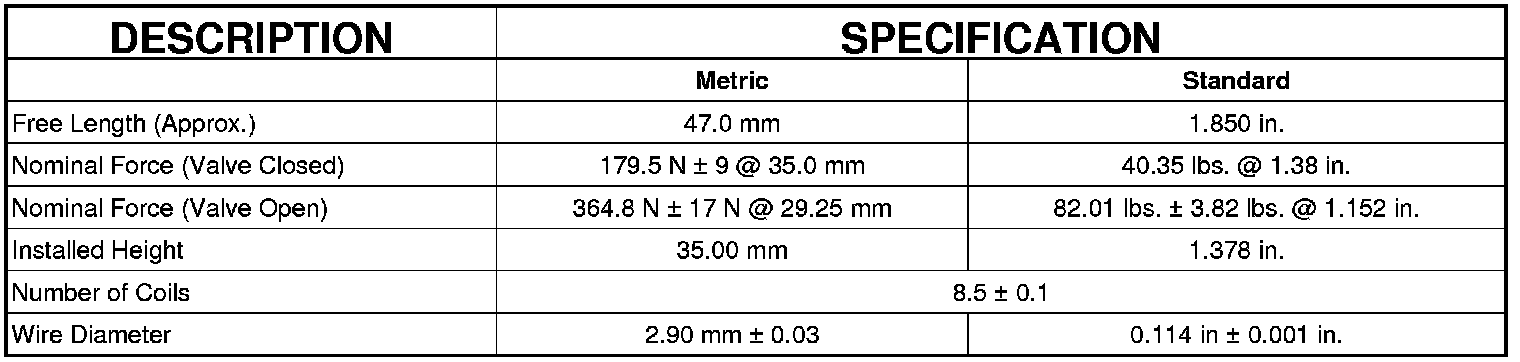

VALVE SPRINGS

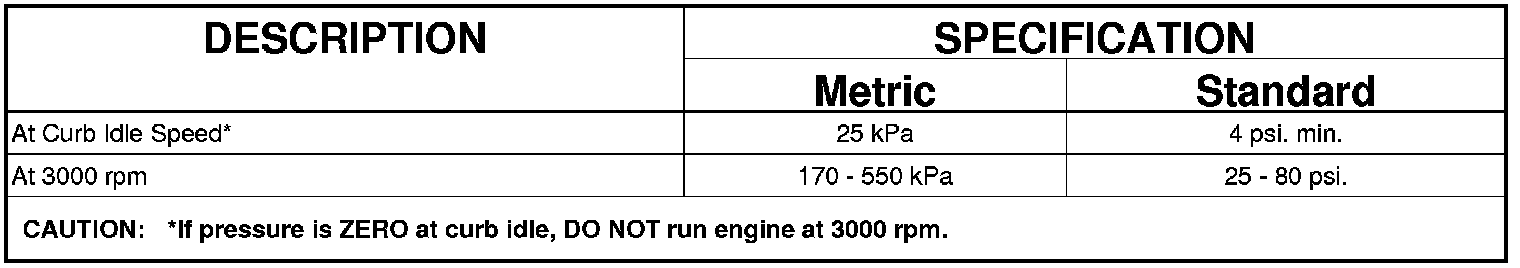

OIL PRESSURE
