2011 Jeep Compass 2WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Transmission Control Module - Removal
REMOVAL
NOTE: LHD model shown in illustrations. RHD model TCM located in similar area on Left side of interior.
1. Remove the steering column opening cover (5), Steering Column Opening Cover - Removal

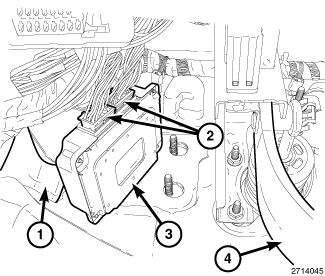

2. The TCM (3) is located to the right of the left kick panel (1).
3. Unplug the two electrical connectors (2) at the TCM (3).

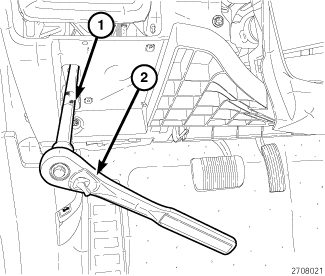

4. Using a ratchet (2) and a long extension (1) remove the two nuts that hold the TCM to the bulkhead.

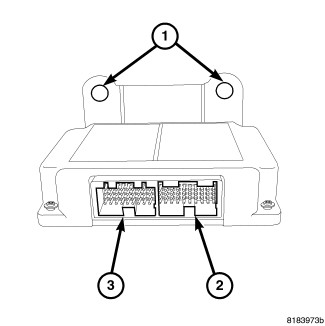

5. Slide the TCM off the mounting studs (1) and remove from the vehicle.
