2011 Jeep Compass 2WD L4-2.4L
Alignment
2011 Jeep Compass 2WD L4-2.4LSECTION Alignment
WHEEL ALIGNMENT
NOTE: All specifications are given in degrees.
NOTE: All wheel alignments are to be set with the vehicle at curb height Service and Repair .

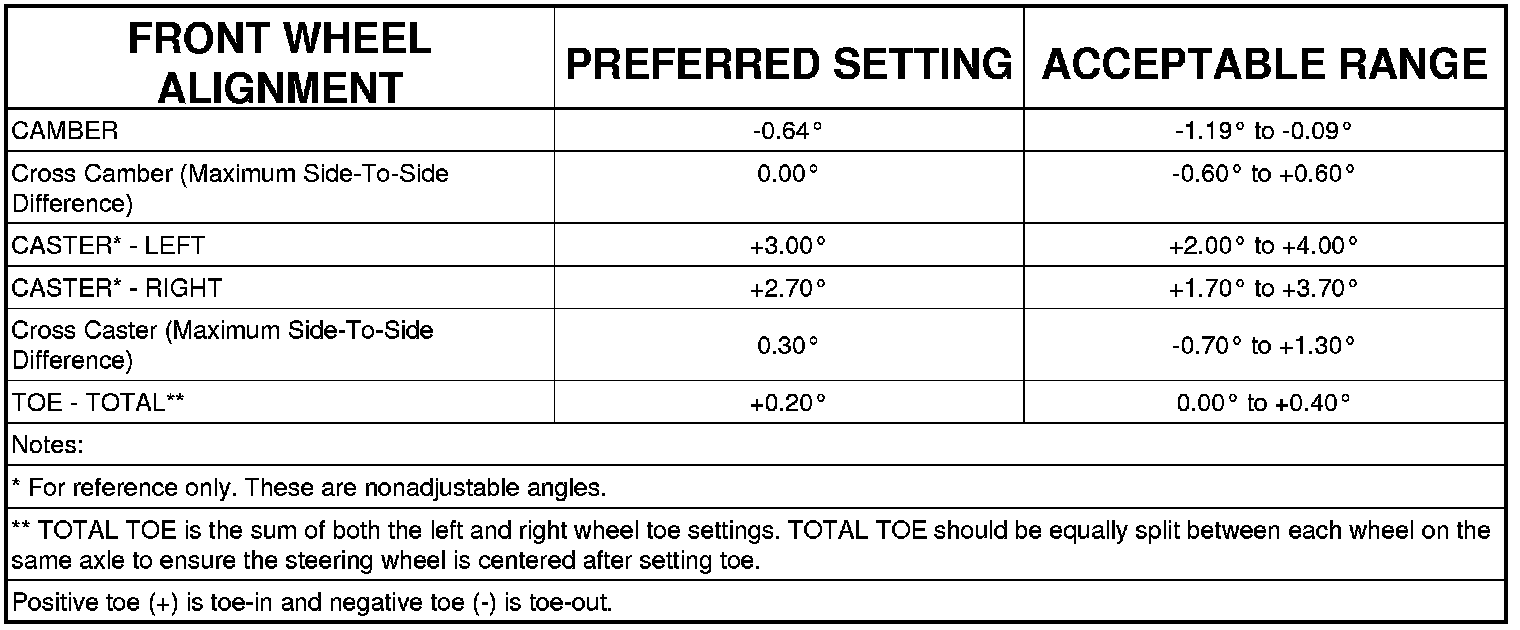

GAS ENGINE
4x2, 4x4 without OFF-ROAD GROUP (AWL), and Export

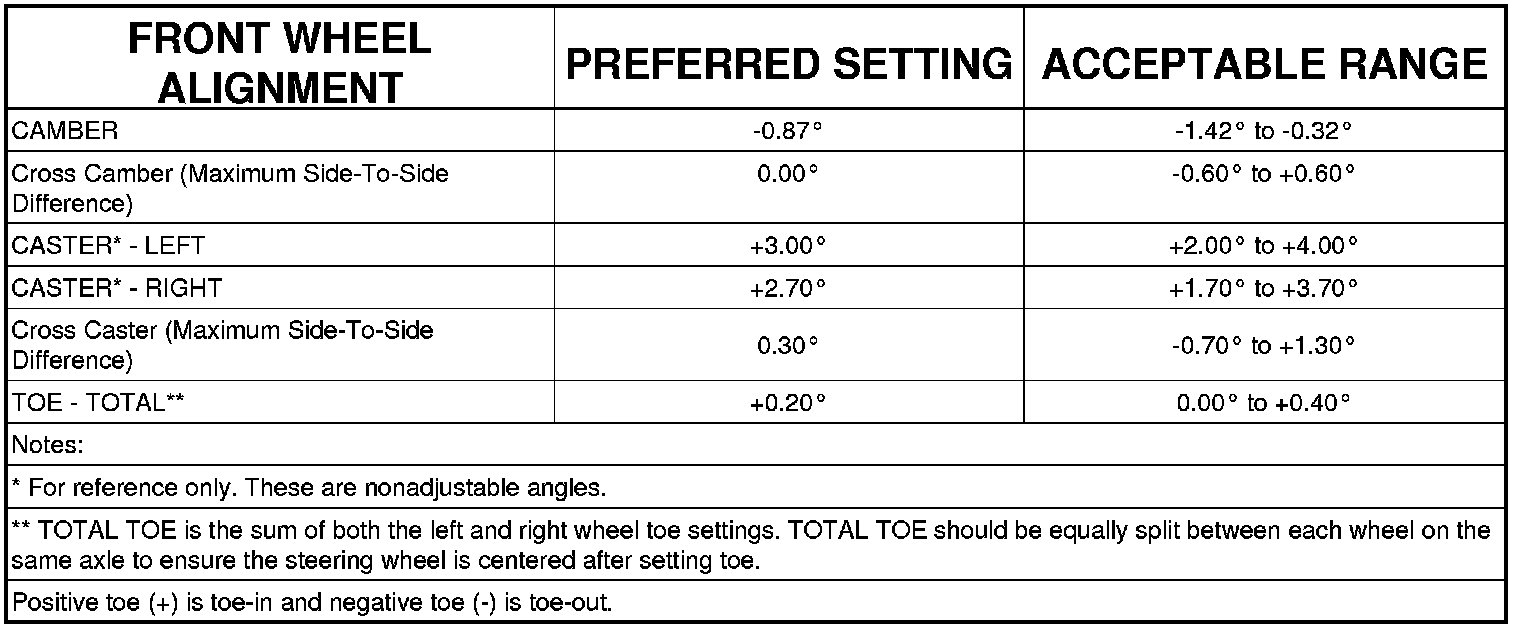

GAS ENGINE
4x4 with OFF-ROAD GROUP (AWL)

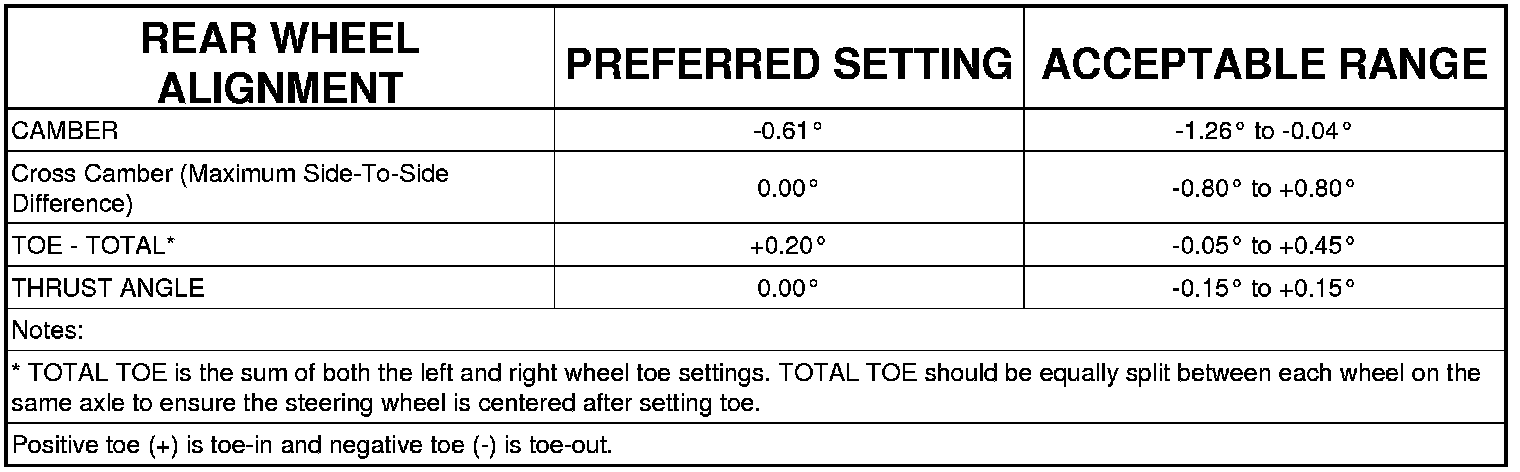

DIESEL ENGINE
4x4

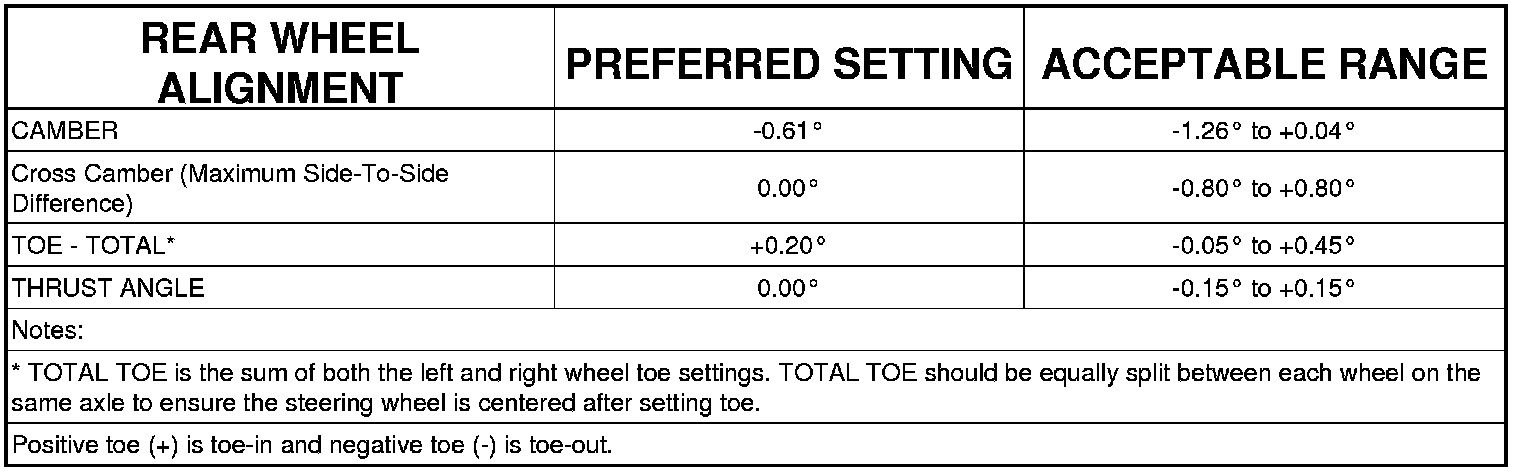

DIESEL ENGINE
4X2
