2011 Jeep Compass 2WD L4-2.4L
Computers and Control Systems: Tools and Equipment
2011 Jeep Compass 2WD L4-2.4LSECTION Tools and Equipment
SPECIAL TOOLS

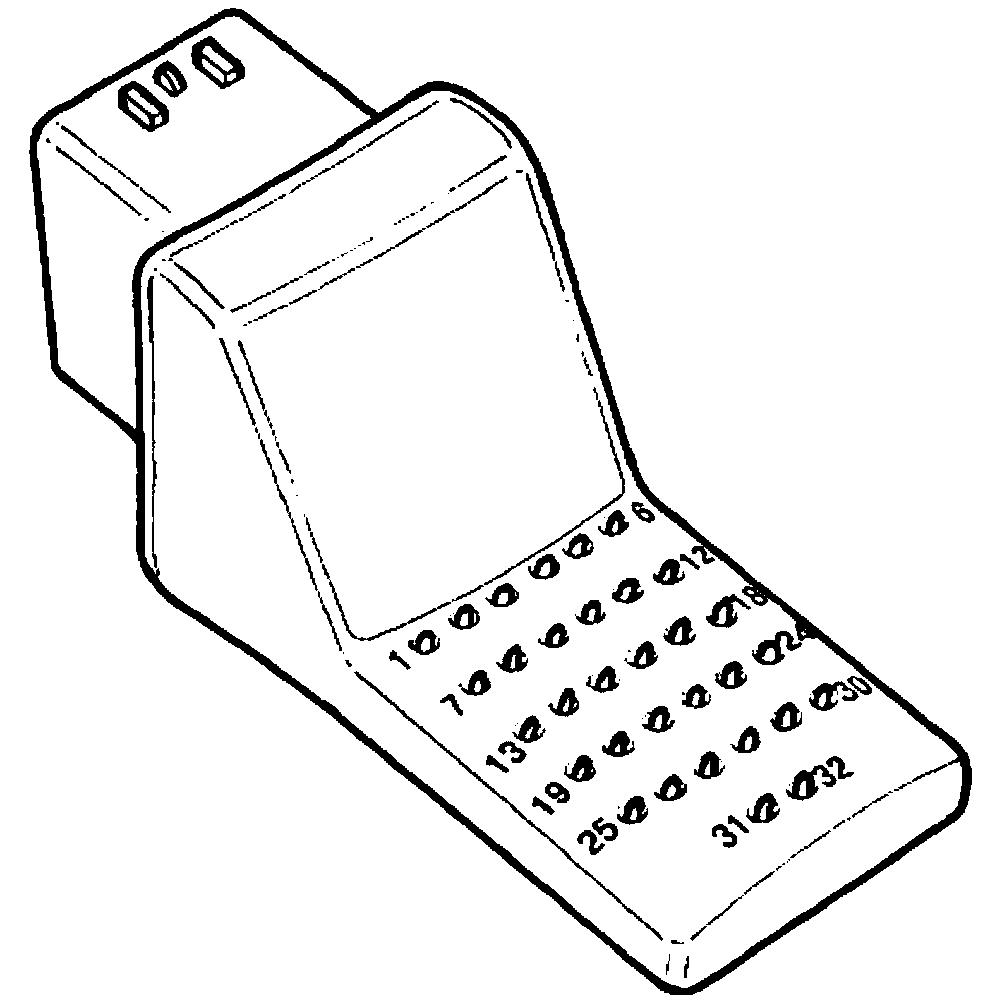

8443-24 - 32-Way Adapter
8443-19 - 4 Pin Jumper

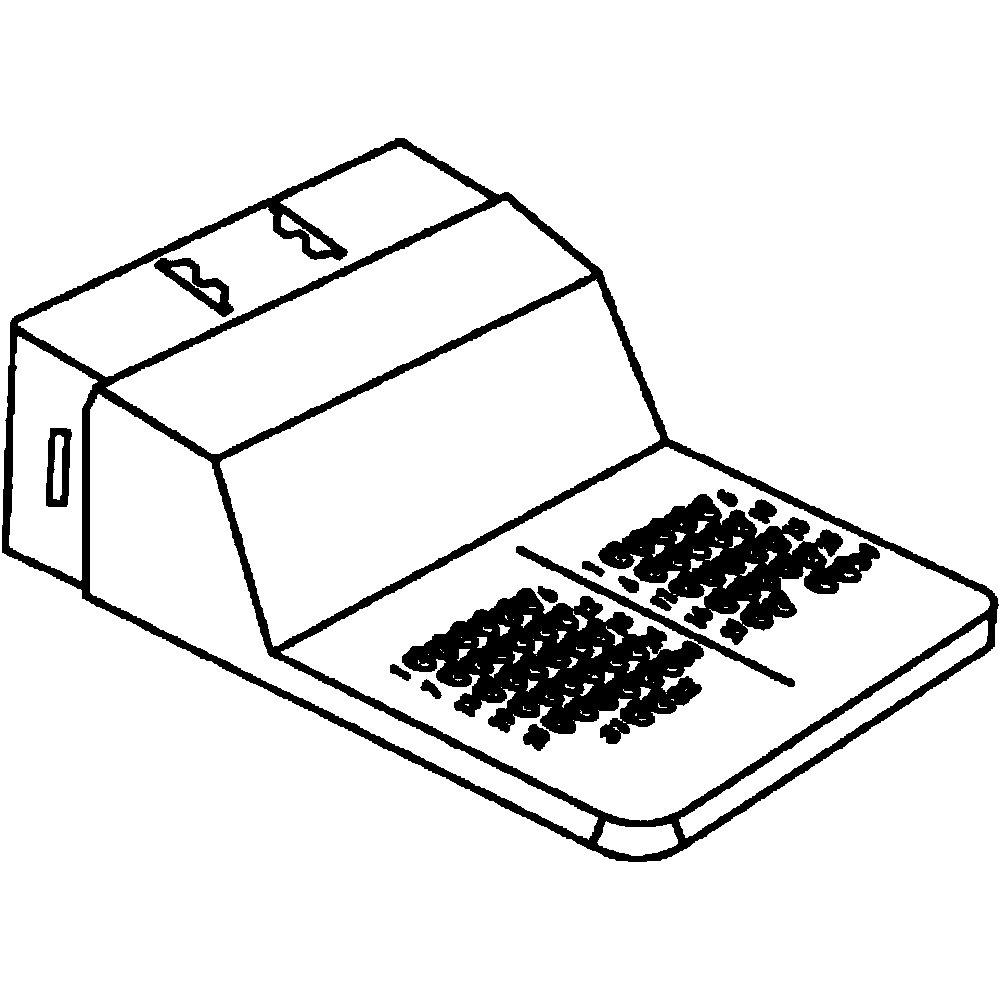

8443-25 - 56 Way ACM Adapter

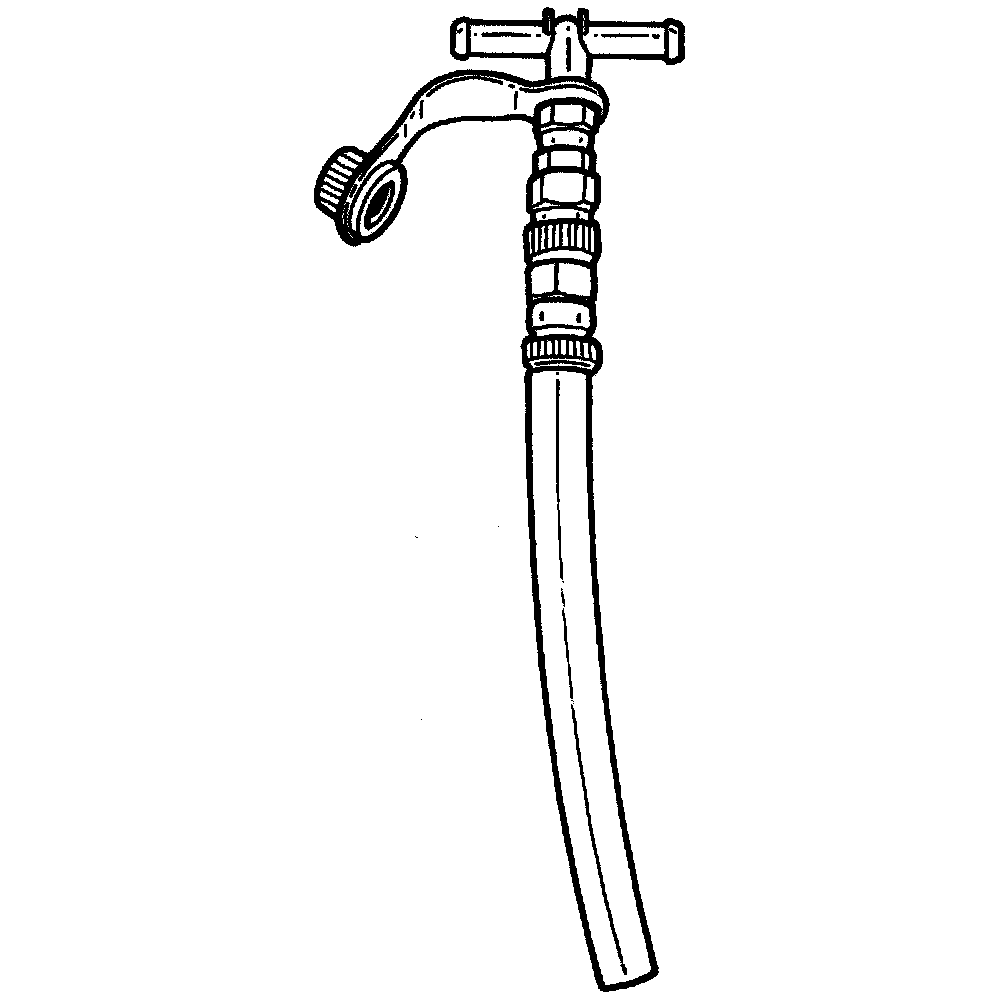

8404-14 - Adapter, Evaporative Service Port

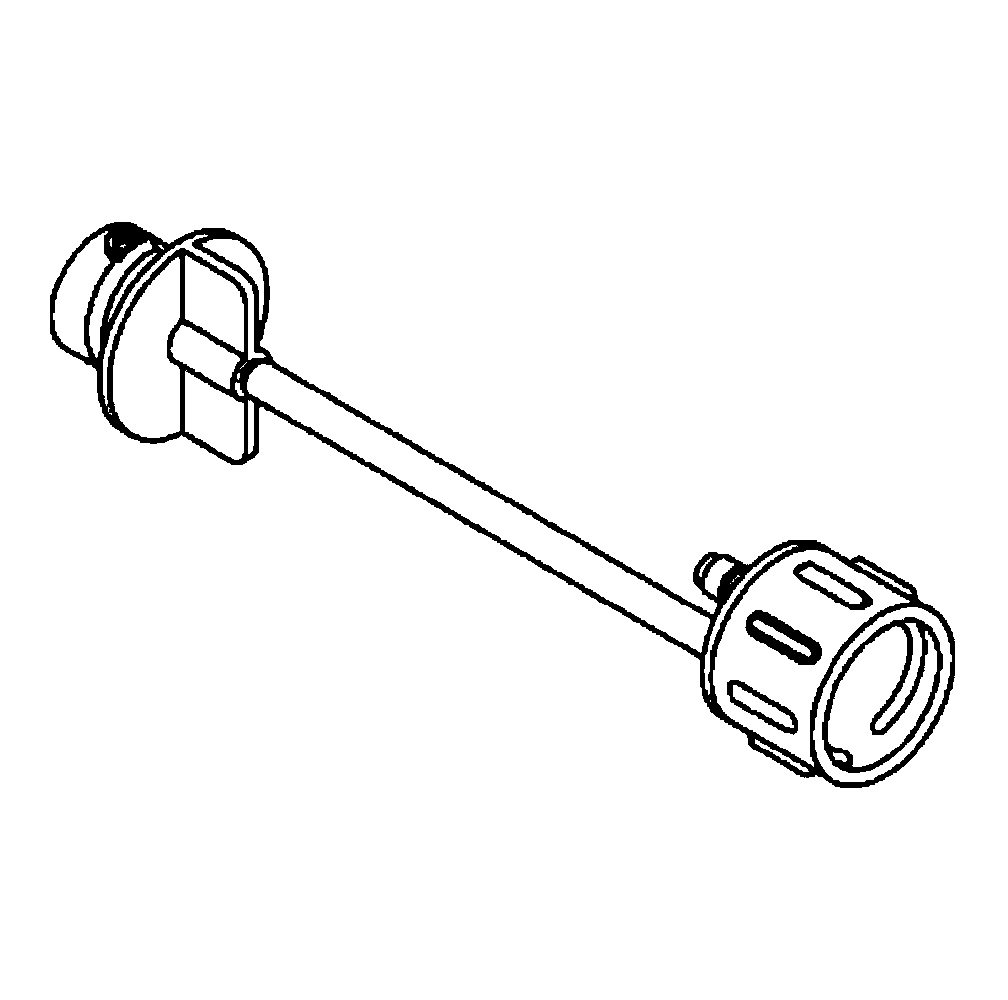

6922 - Adapter, Fuel Tank
8382 - Adapter, Leak Check
8399 - Adapter, Leak Check

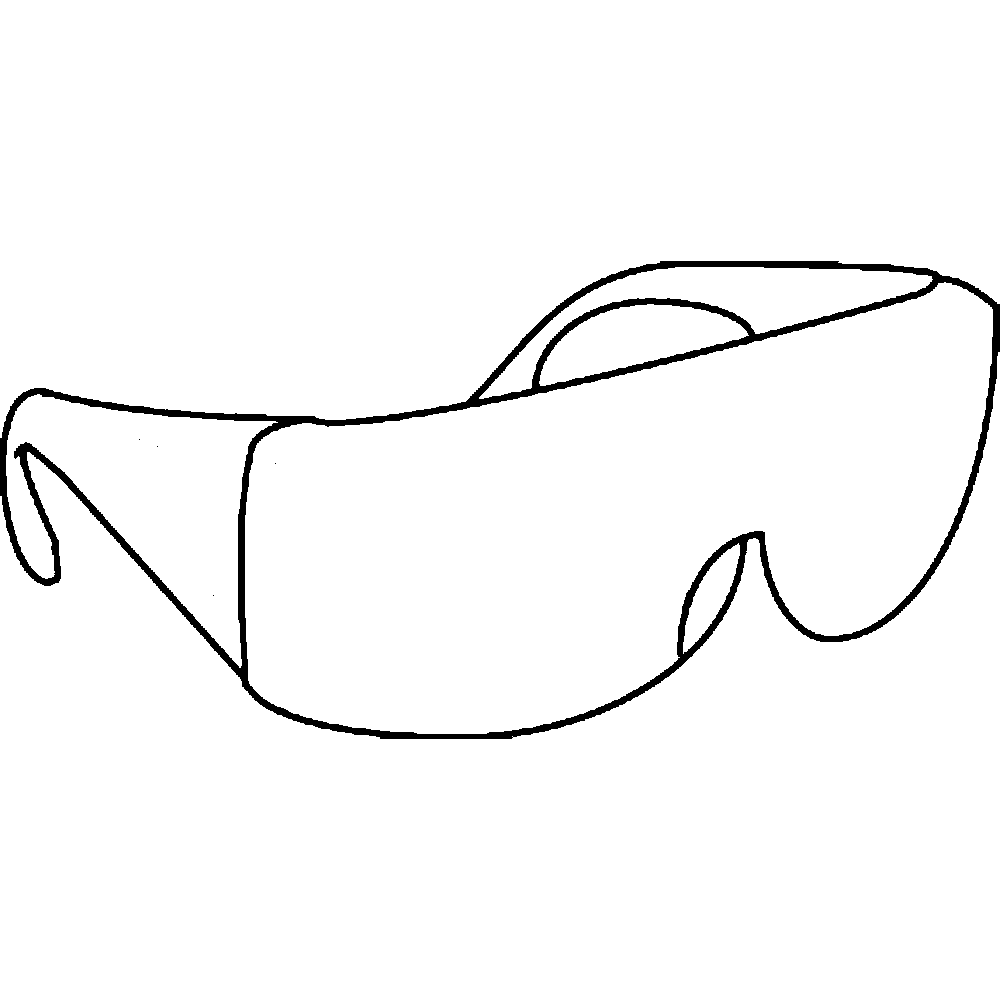

8404-20 - Goggles, Yellow
8443-8 - Jumper, SRS Load

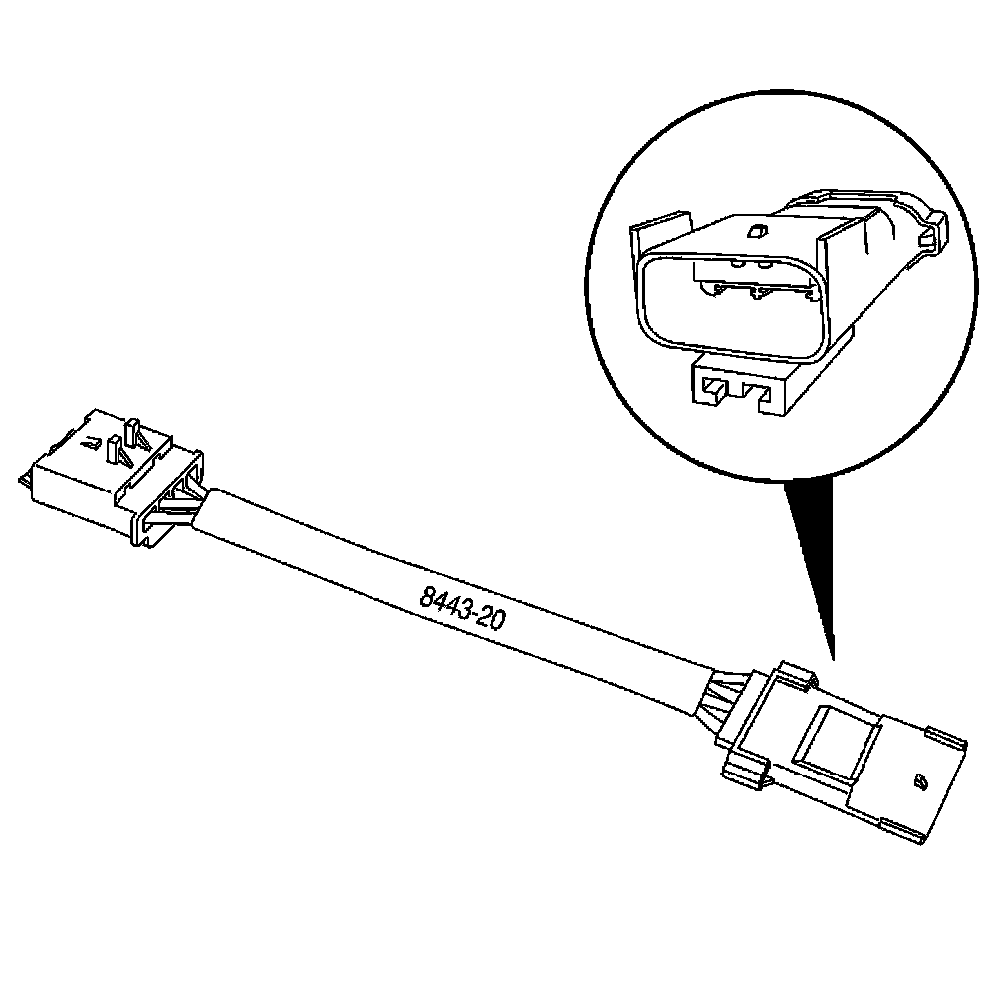

8443-20 - Jumper, SRS Load Tool

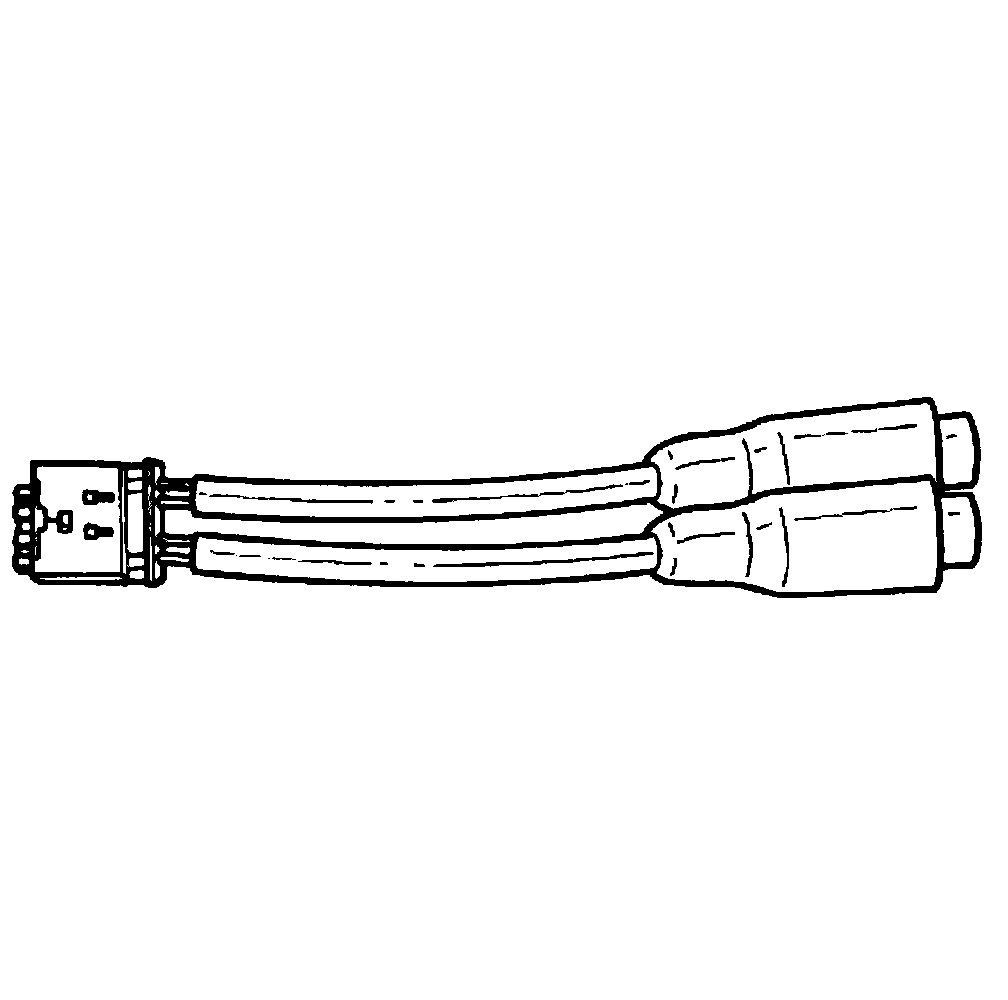

8443-1 - Jumpers, 2 Pin

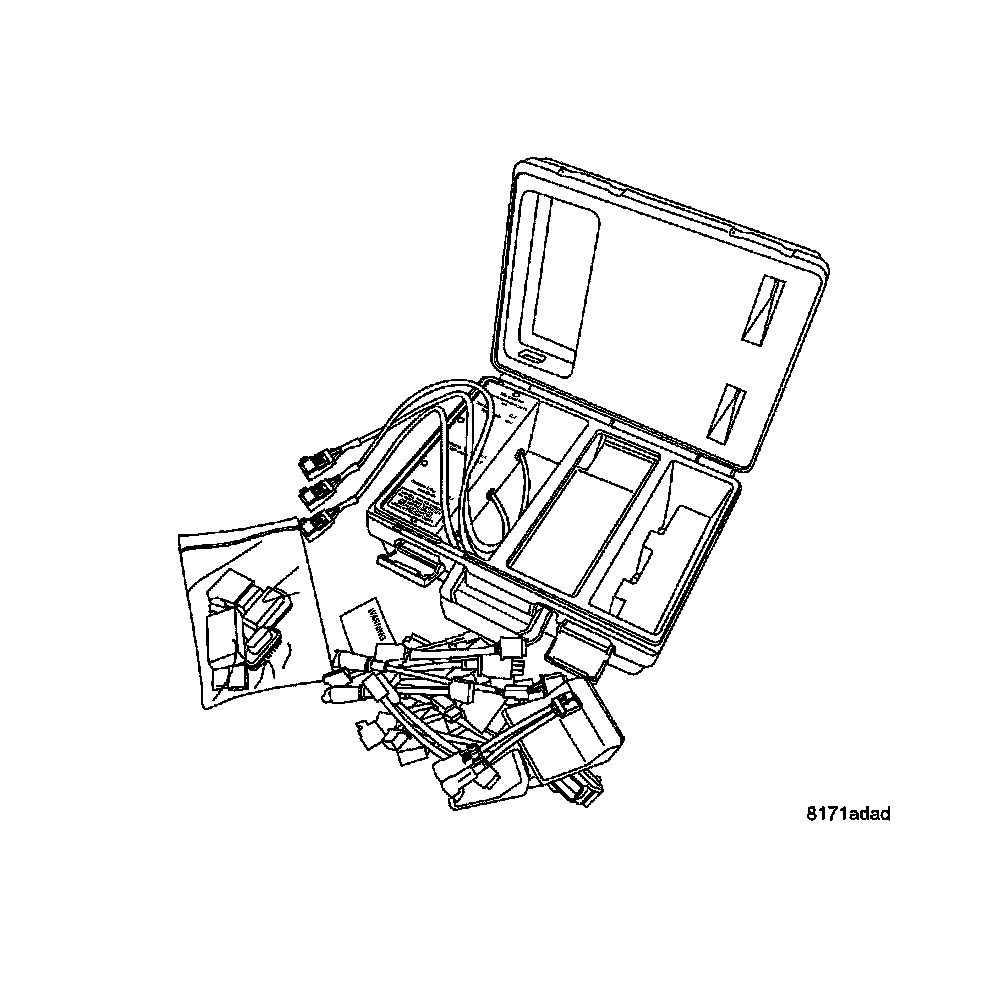

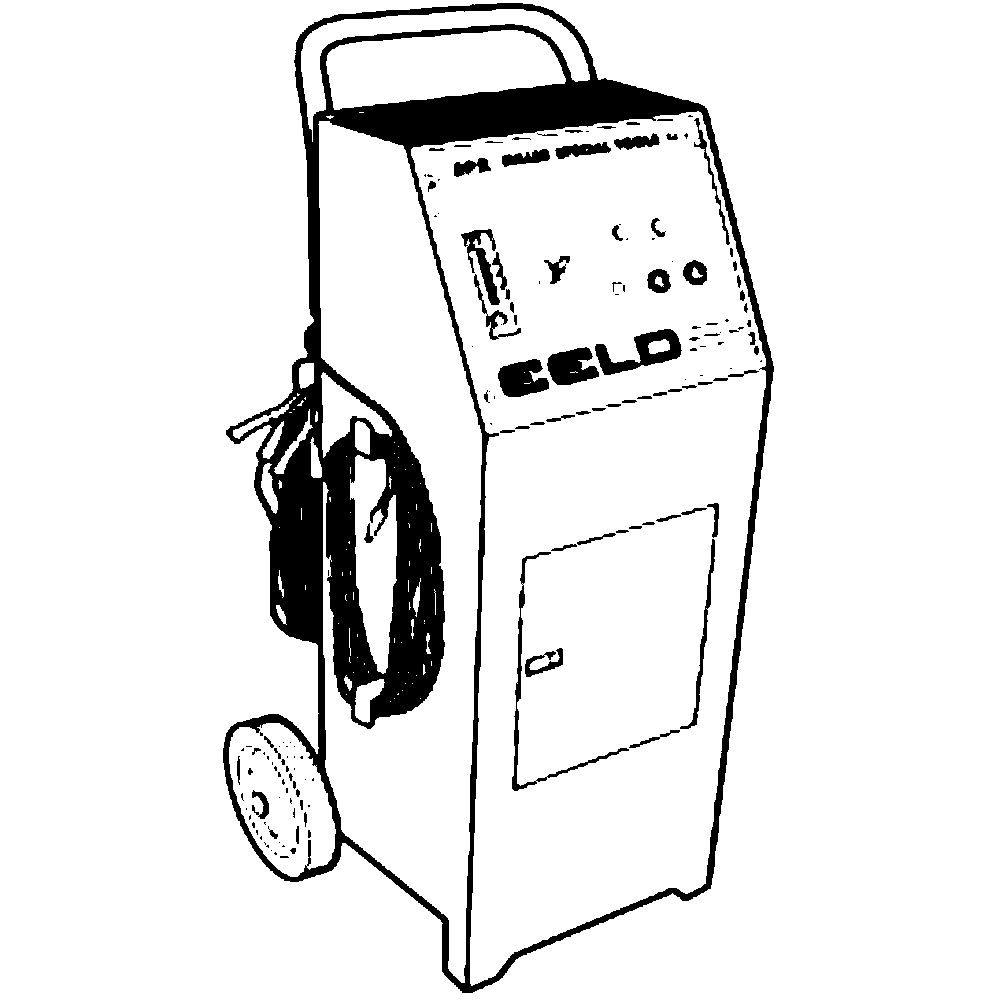

8404B - Kit, EELD And Accessory
8404-UVL - Light, UV
8404-CLL - Light, White
8443A - SRS Load Tool
8404-ADP - Smoke Machine Adapters

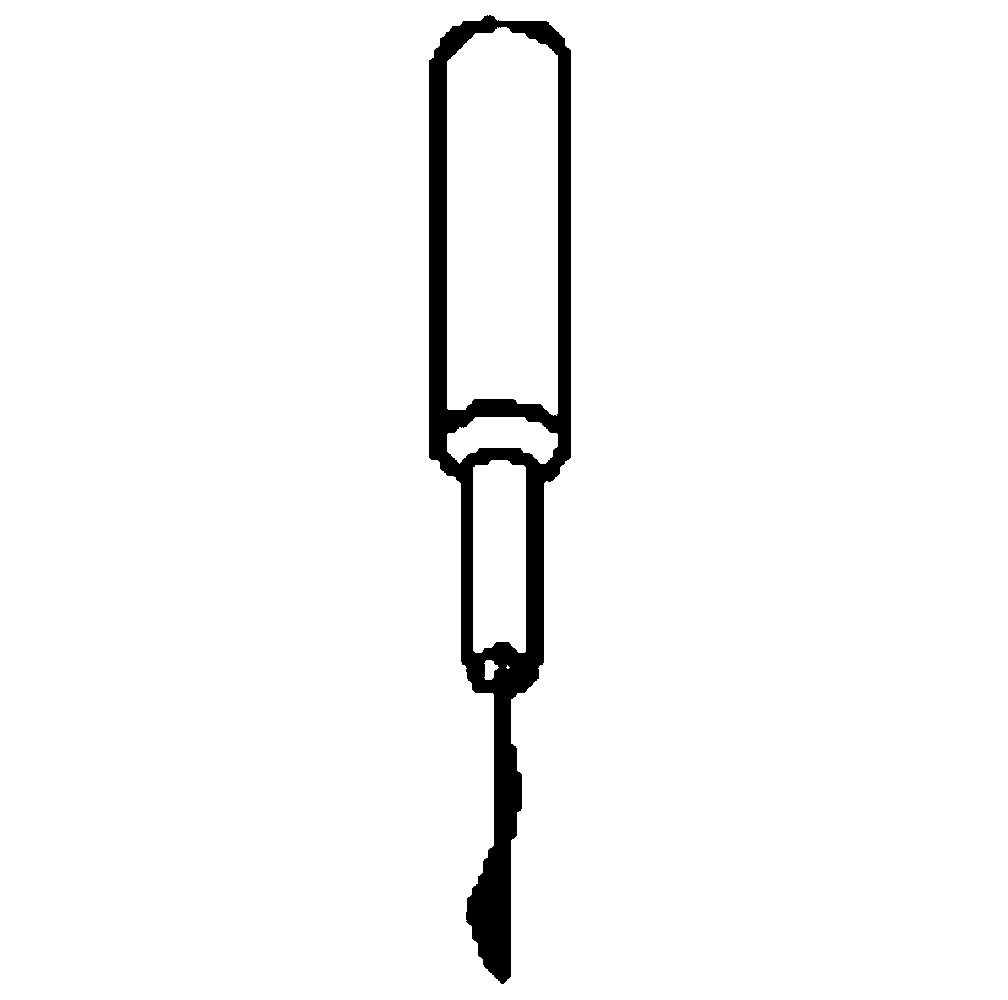

6801 - Terminal Probe
10253 - Tester, AHR Load

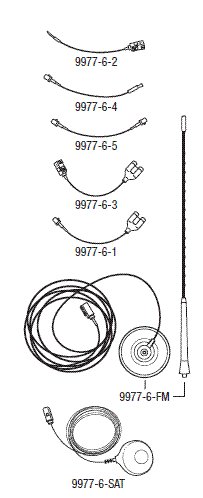

9977-6-FM - Tool, Radio Diagnostic
9977-6-1 - Tool, Radio Diagnostic
9977-6-3 - Tool, Radio Diagnostic
9977-6-4 - Tool, Radio Diagnostic
9977-6-2 - Tool, Radio Diagnostic
9977-6 - Tool, Radio Diagnostic
9977-6-SAT - Tool, Radio Diagnostic
