2011 Jeep Compass 2WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Blower Motor Power Module - Installation
INSTALLATION

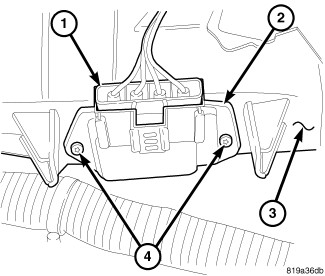

NOTE: ATC blower motor power module shown. MTC power module similar.
1. Position the blower motor power module (2) into the HVAC housing (3).
2. Install the two screws (4) that secure the blower motor power module to the HVAC housing. Tighten the screws to 1.2 Nm (10 in. lbs.).
3. Connect the wire harness connector (1) to the blower motor power module.
4. If equipped, install the passenger side silencer panel and two push-pins.
5. Reconnect the negative battery cable.
