Diagnostic Test

1. With the scan tool, read the active DTCs.
2. Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 10 seconds.
3. With the scan tool, read the active DTCs.

   Does the scan tool display this DTC as active?

   Yes

   • Go to step  2

   No

   • If the DTC is stored, check for an intermittent condition. Using the wiring diagram/schematic as a guide, visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
   • Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .

Is this vehicle equipped with a 3.7L or 6.1L engine?

Yes

• Go to step  3

No

• Go to step  6

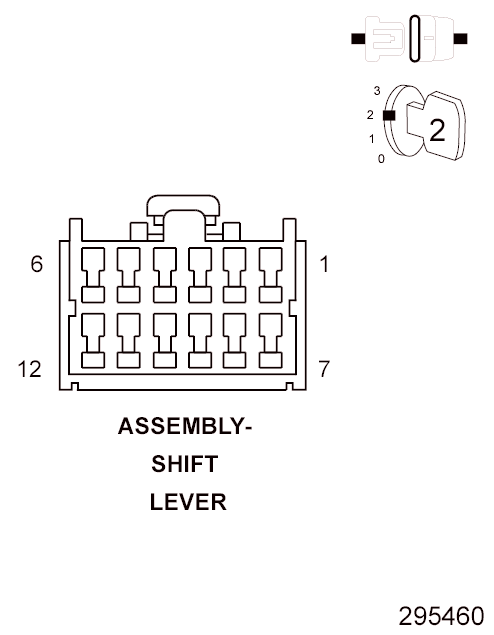

Fig 1: Checking Shift Lever Assembly

Courtesy of CHRYSLER LLC

1. With the scan tool, erase the FCM DTCs.
2. Turn the ignition off.
3. Disconnect the Shift Lever Assembly harness connector.
4. Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 10 seconds.
5. With the scan tool, read the active FCM DTCs.

   Does the scan tool display this DTC as active?

   Yes

   • Go to step  4

   No

   • Replace the Shift Lever Assembly in accordance with the Service Information.
   • Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .

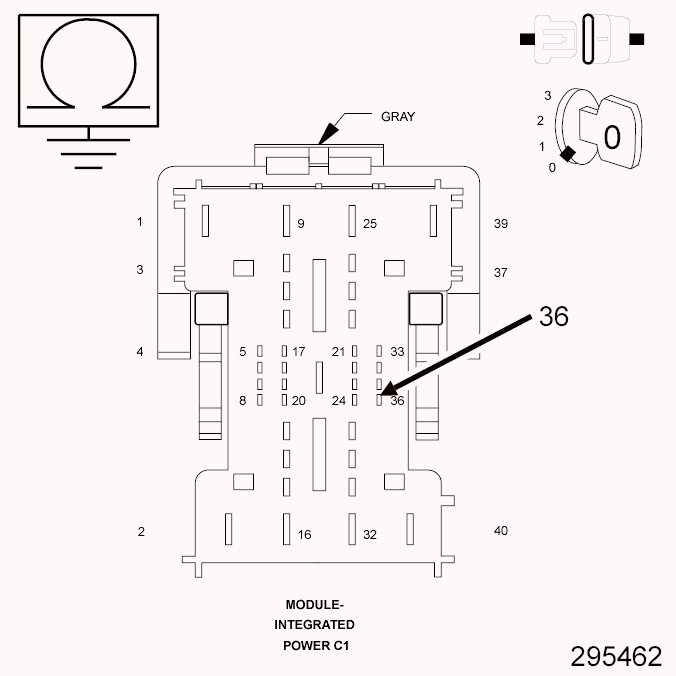

Fig 2: Checking Fused Ignition Switch Output Wire Short To Ground

Courtesy of CHRYSLER LLC

1. Turn the ignition off.
2. Disconnect the Integrated Power Module C1 harness connector.
3. Measure the resistance between ground and the (F1) Fused Ignition Switch Output circuit in the IPM C1 connector.

   Is the resistance below 1000.0 ohms?

   No

   • Go to step  5

   Yes

   • Repair the (F1) Fused Ignition Switch Output circuit for a short to ground.
   • Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .

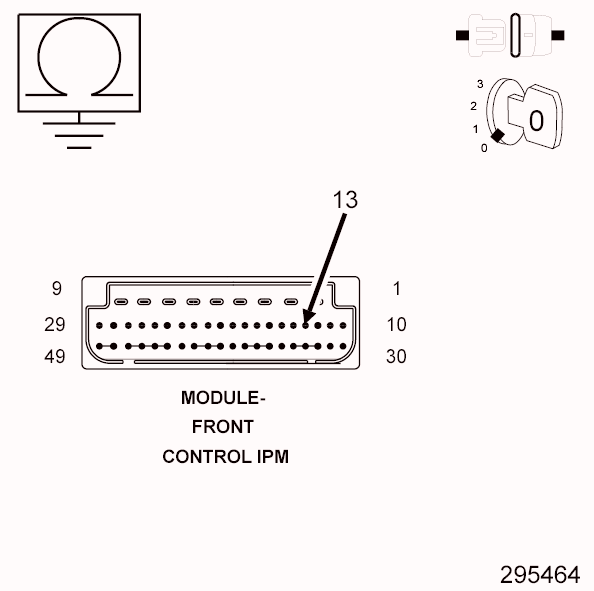

Fig 3: Checking Integrated Power Module Shorted

Courtesy of CHRYSLER LLC

1. Remove the FCM from the Integrated Power Module.
2. Measure the resistance between ground and the (F1) Fused Ignition Switch Output circuit in the Front Control Module IPM connector.

   Is the resistance below 1000.0 ohms?

   Yes

   • Replace the Integrated Power Module in accordance with Service Information.
   • Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .

   No

   • Replace and program the Front Control Module in accordance with the Service Information.
   • Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .

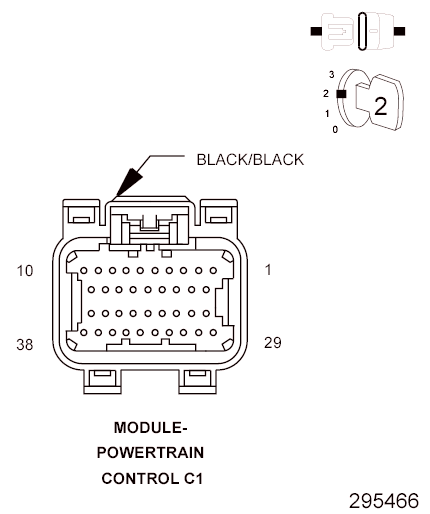

Fig 4: Checking Powertrain Control Module

Courtesy of CHRYSLER LLC

1. With the scan tool, erase the FCM DTCs.
2. Turn the ignition off.
3. Disconnect the Powertrain Control Module C1 connector.
4. Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 10 seconds.
5. With the scan tool, read the active FCM DTCs.

   Does the scan tool display this DTC as active?

   Yes

   • Go to step  7

   No

   • Replace the Powertrain Control Module in accordance with the Service Information.
   • Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .

Fig 5: Checking Fused Ignition Switch Output Wire Short To Ground

Courtesy of CHRYSLER LLC

1. Turn the ignition off.
2. Disconnect the Integrated Power Module C1 harness connector.
3. Measure the resistance between ground and the (F1) Fused Ignition Switch Output circuit in the IPM C1 connector.

   Is the resistance below 1000.0 ohms?

   No

   • Go to step  5

   Yes

   • Repair the (F1) Fused Ignition Switch Output circuit for a short to ground.
   • Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
