2010 Jeep Commander Limited, 4WDFACTORY OEM SERVICE PROCEDURE
MODULE, Power Liftgate Control: Installation: Installation

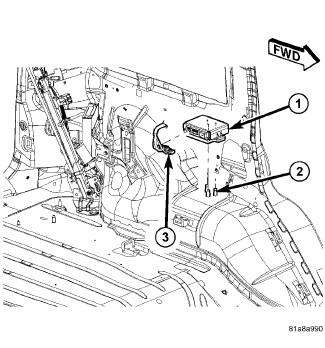

- Position the power liftgate control module (1) into the vehicle.
- Install the power liftgate control module (1) onto the retaining tabs of the left rear wheel well (2).
- Connect the wire harness connectors (3) to the power liftgate control module (1).
- Install the left quarter trim panel. Refer to Body/Interior/PANEL, Quarter Trim - Installation .
- Connect the battery negative cable.
- Using an appropriate scan tool, check and erase any power liftgate control module diagnostic trouble codes.
- Perform the power liftgate learn cycle. Refer to Electrical - Power Systems/Power Liftgate - Standard Procedure .
- Verify power liftgate system operation.
