2009 Jeep Wrangler 2WD V6-3.8L
Engine - Specifications
2009 Jeep Wrangler 2WD V6-3.8LSECTION Engine - Specifications
BLOCK SPECIFICATIONS

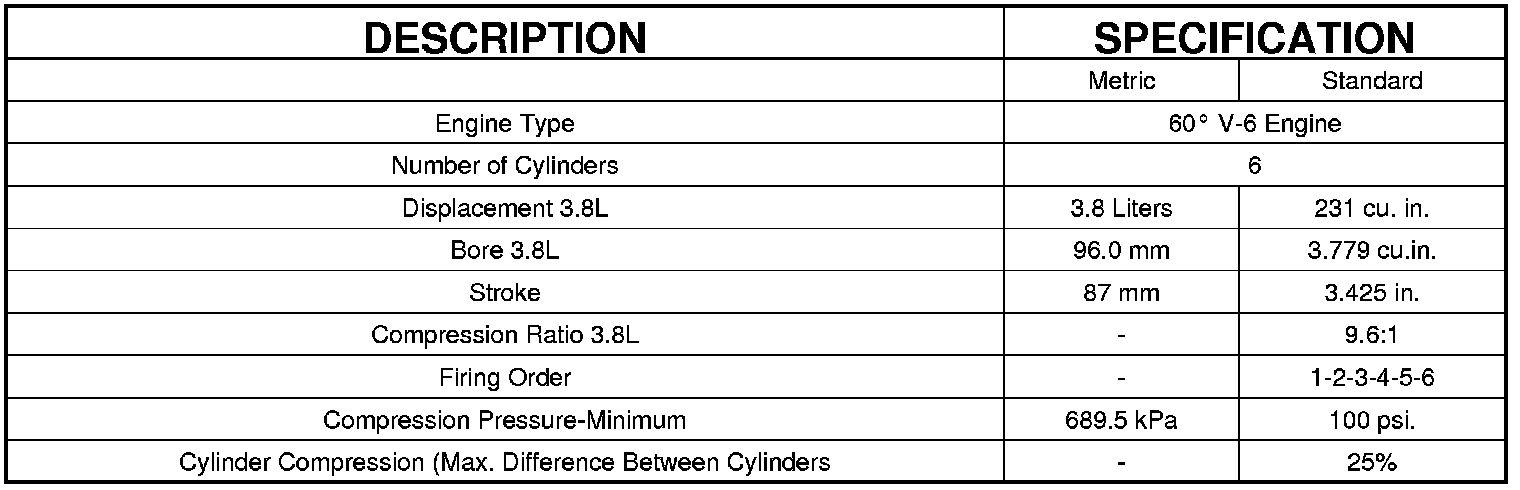

GENERAL DESCRIPTION

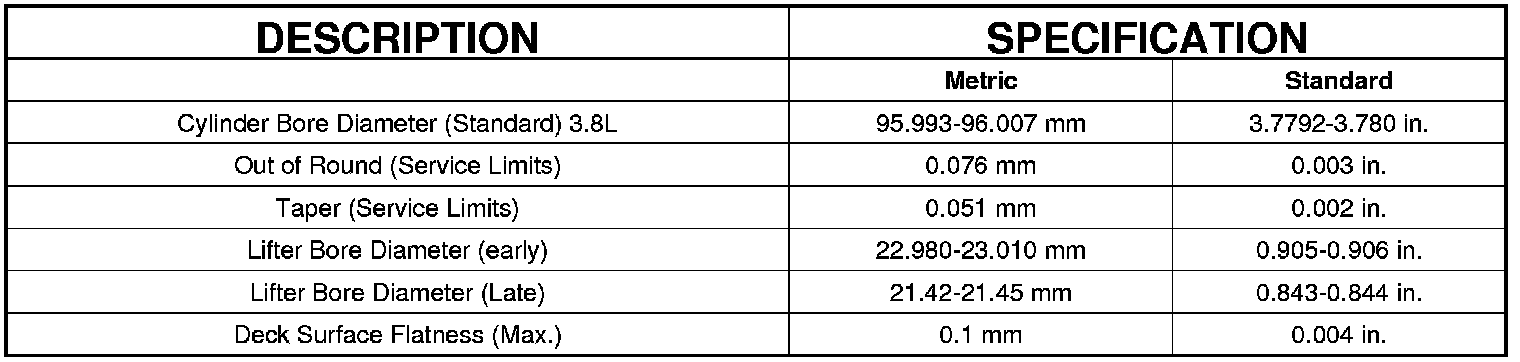

CYLINDER BLOCK

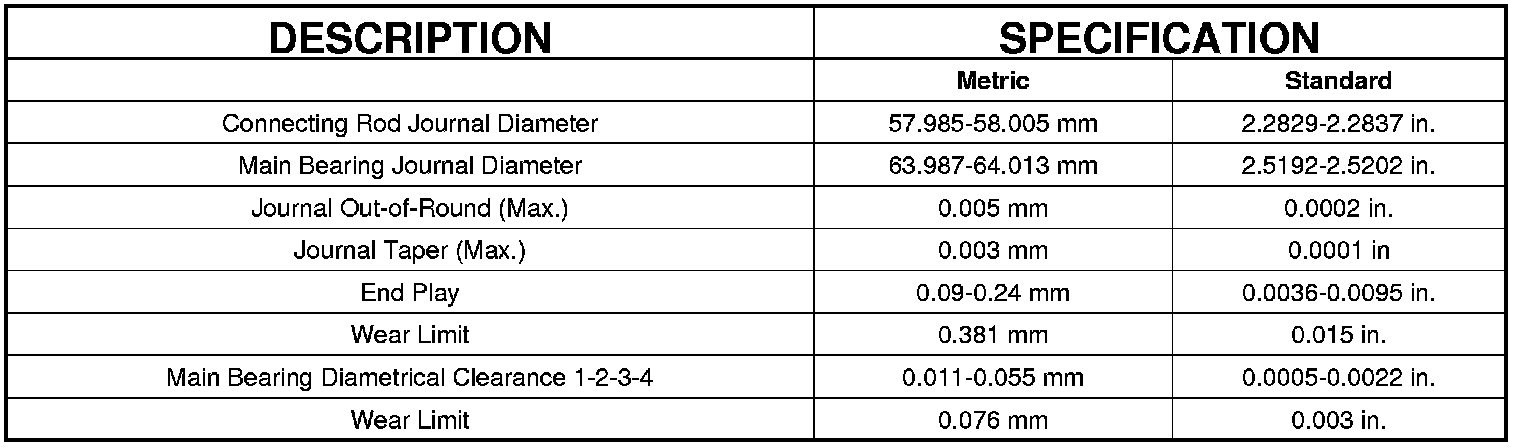

CRANKSHAFT
CONNECTING RODS

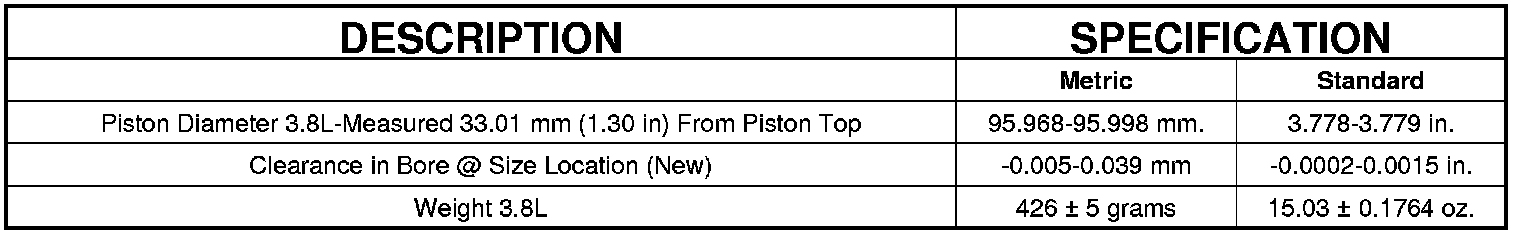

PISTONS

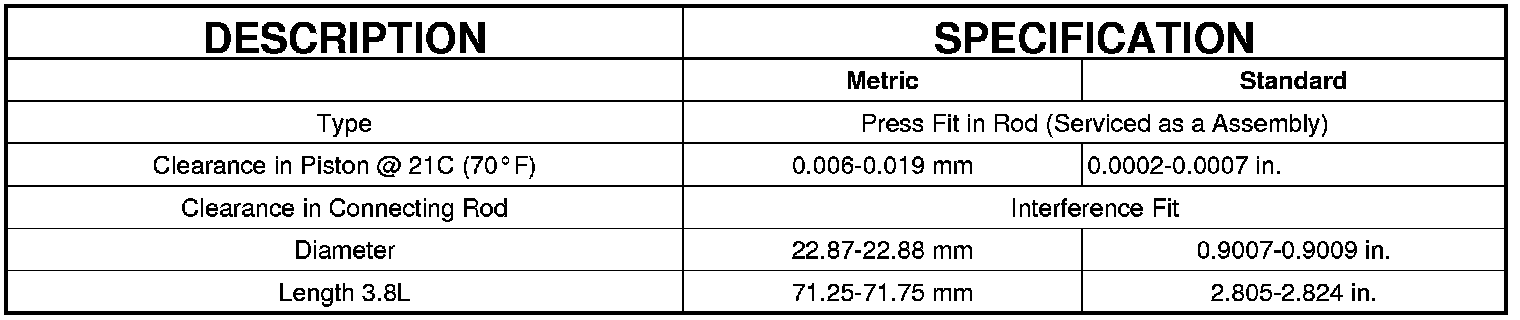

PISTON PINS

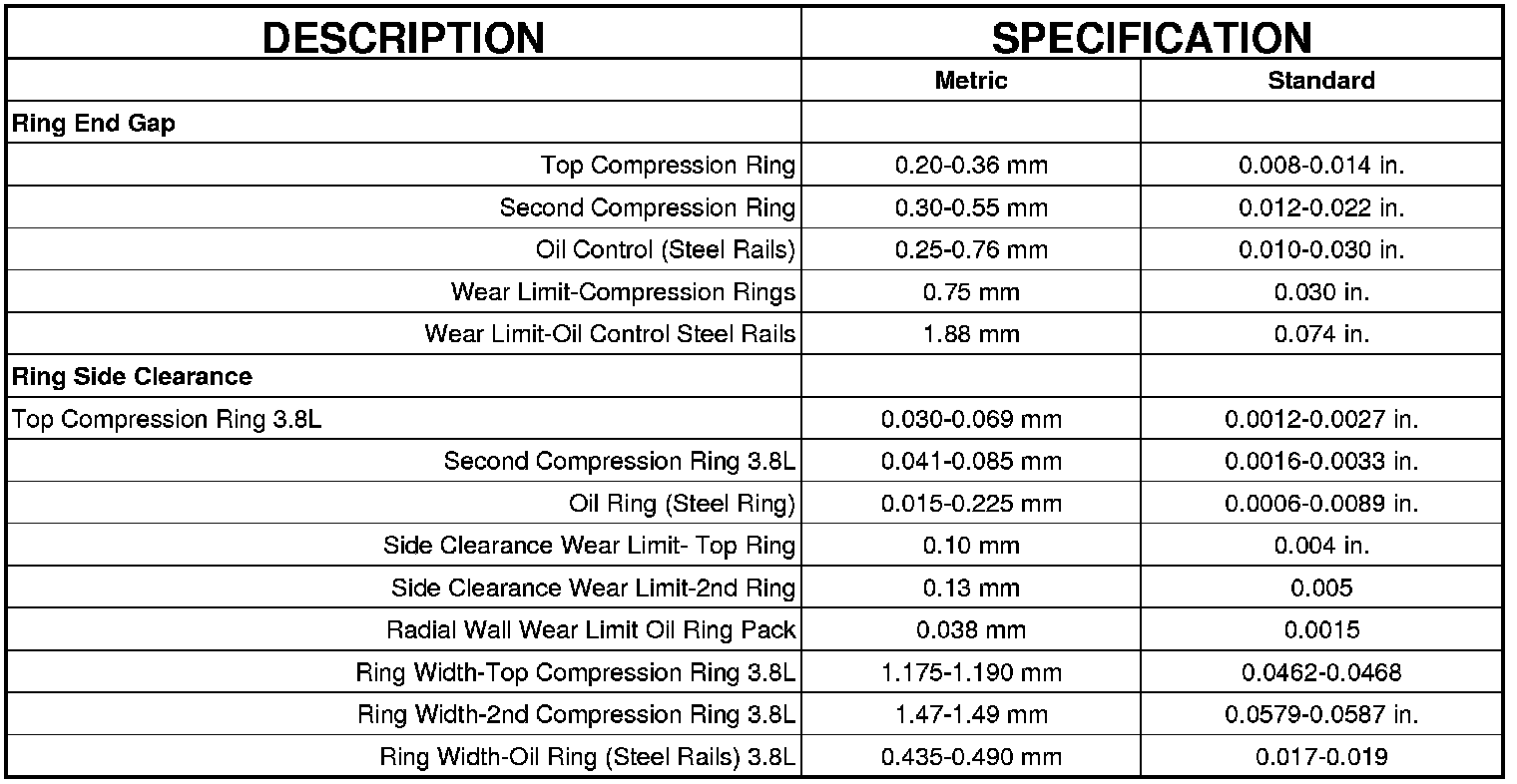

PISTON RINGS

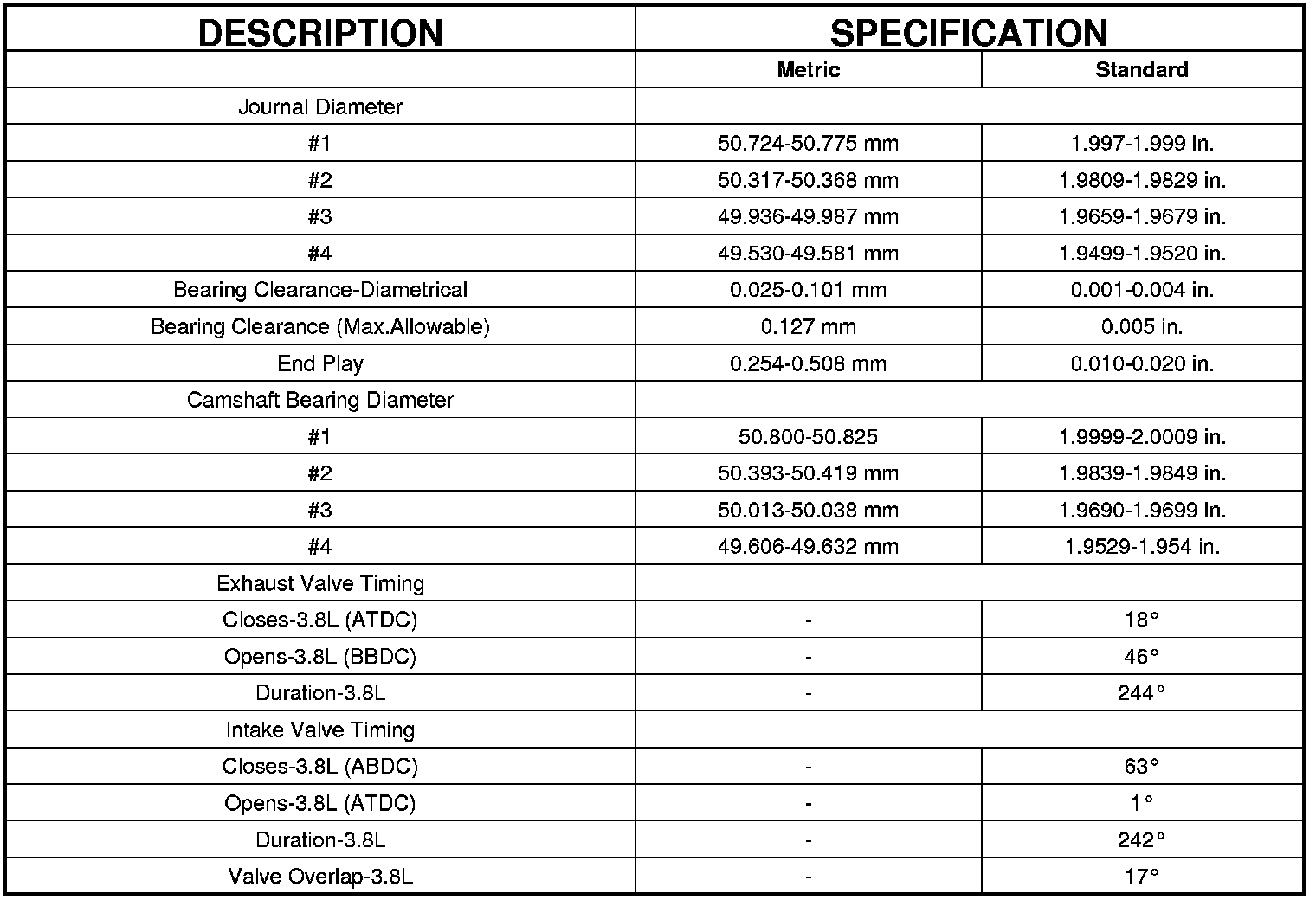

CAMSHAFT

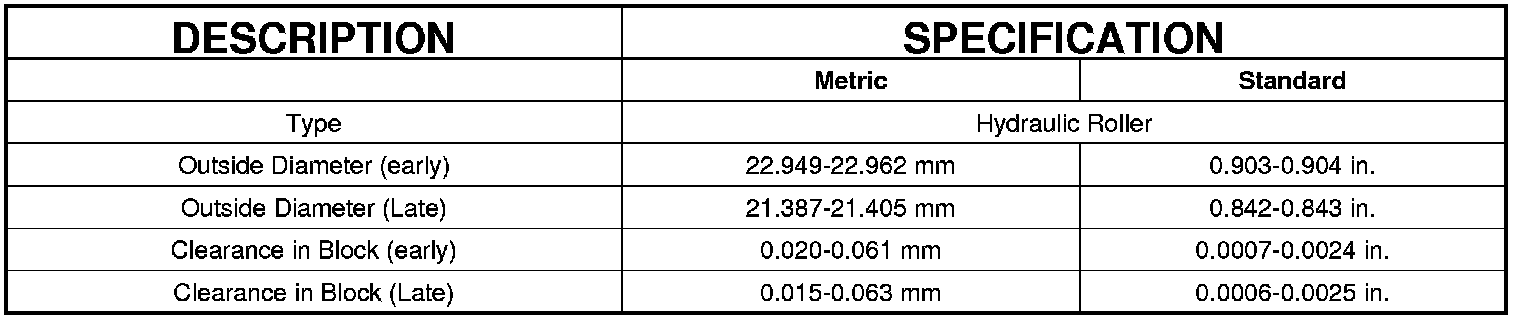

HYDRAULIC LIFTER

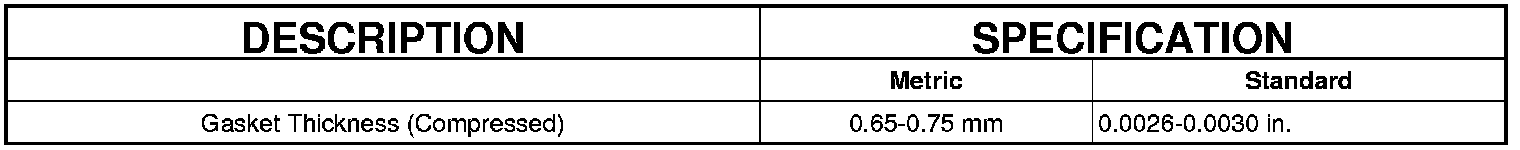

CYLINDER HEAD

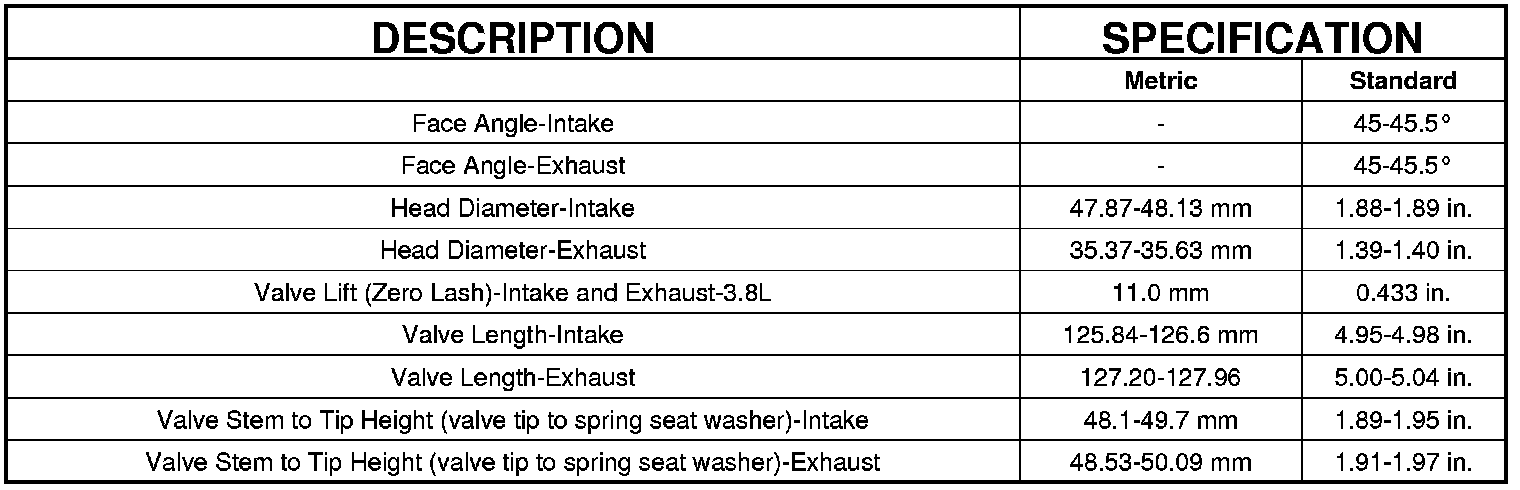

VALVES

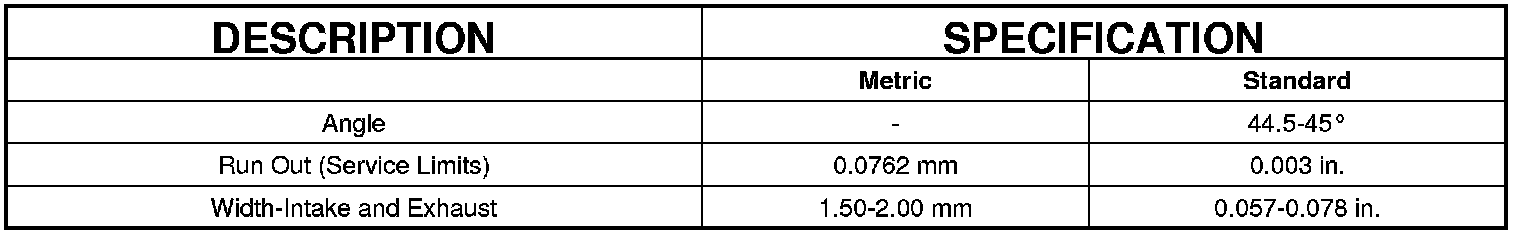

VALVE SEAT

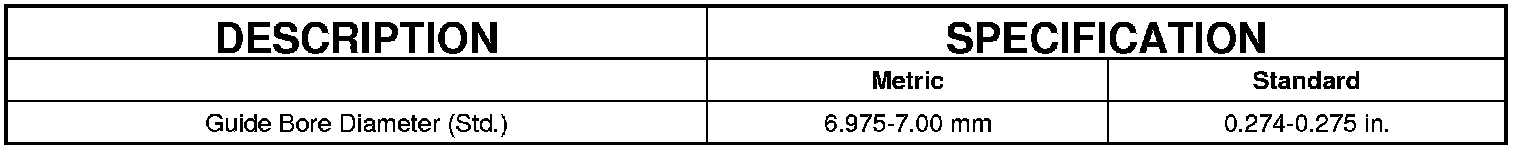

VALVE GUIDE
VALVE MARGIN

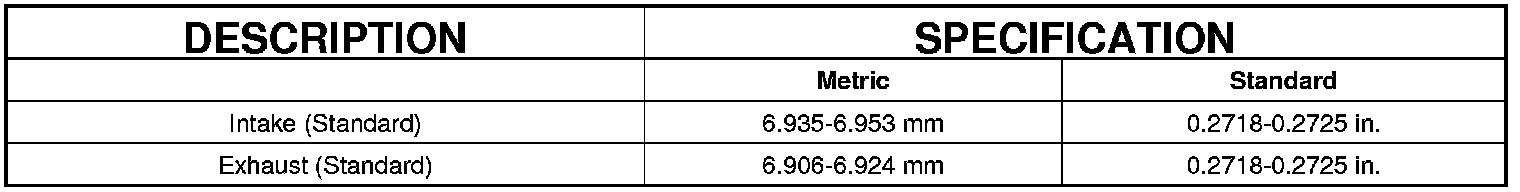

VALVE STEM DIAMETER

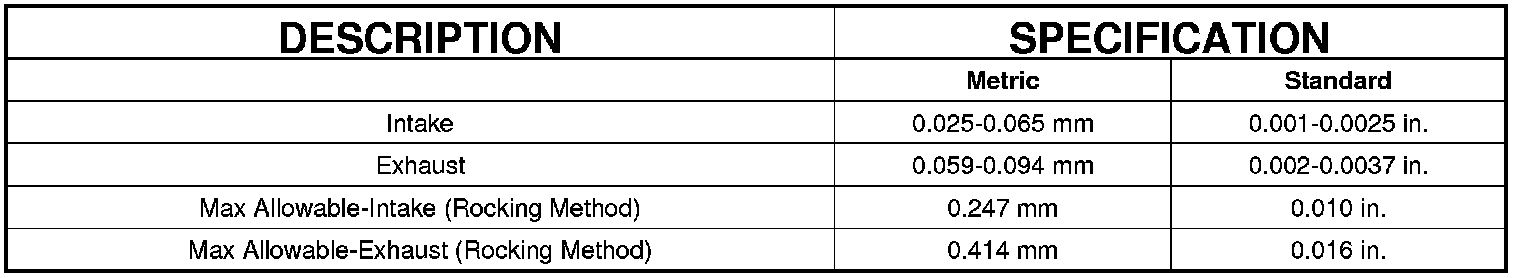

VALVE STEM TO GUIDE CLEARANCE

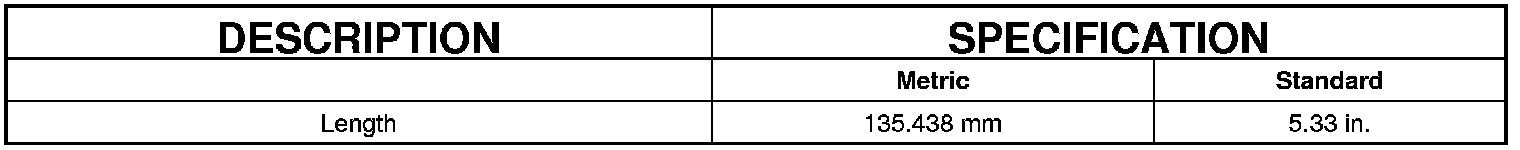

PUSH RODS

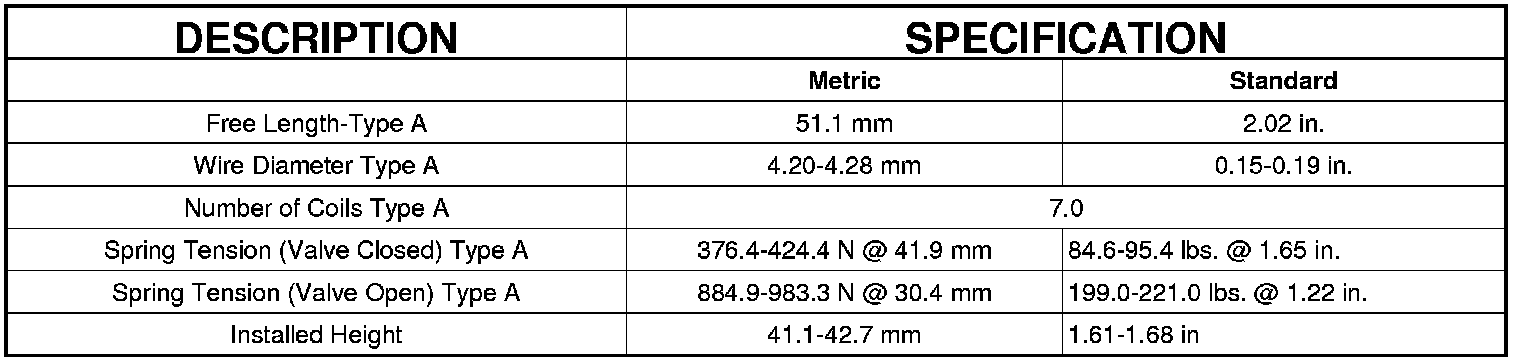

VALVE SPRING

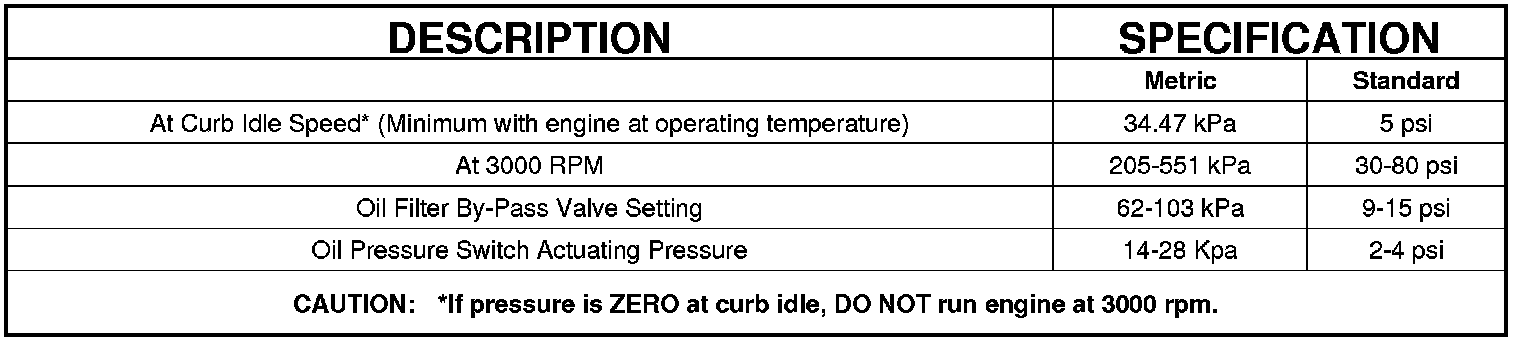

LUBRICATION

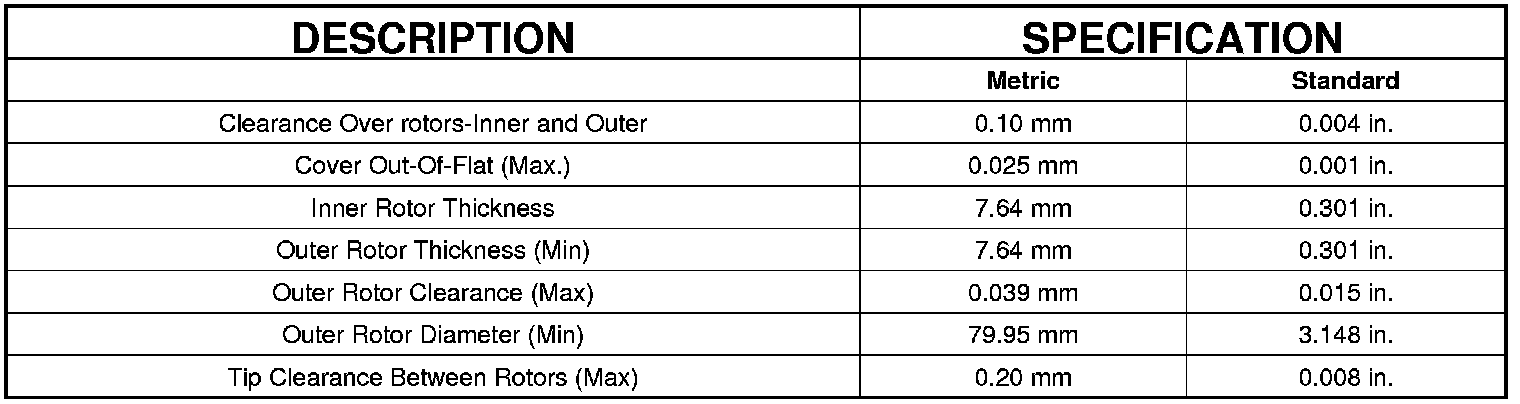

OIL PUMP
