2009 Jeep Patriot Limited, EDG, StandardFACTORY OEM SERVICE PROCEDURE
Tandem Pump Pressure Test

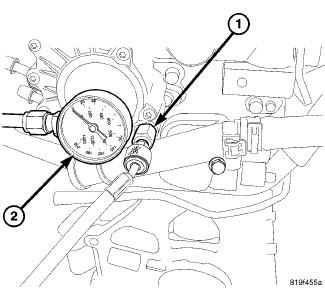

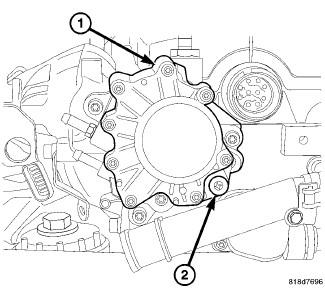

- Remove fuel pressure test port cap (2).
- Install fuel pressure adapter 9938 (1).
- Connect a 200 psi fuel pressure gauge (2).
- Start engine and run at 4,000 RPM, monitor fuel pressure.
- If the minimum specification of 1050 kPa (152 psi) is reached the tandem pump is ok.
- If the minimum specification was obtained, clamp off the return line between the tandem pump and the fuel filter.
- If the minimum specification is obtained, replace the unit injector O-rings.
- Remove the fuel pressure gauge (2) and fuel pressure adapter 9938 (1).
- Install fuel pressure test port cap (2).
