2009 Jeep Patriot Limited, EDG, Automatic CVTFACTORY OEM SERVICE PROCEDURE

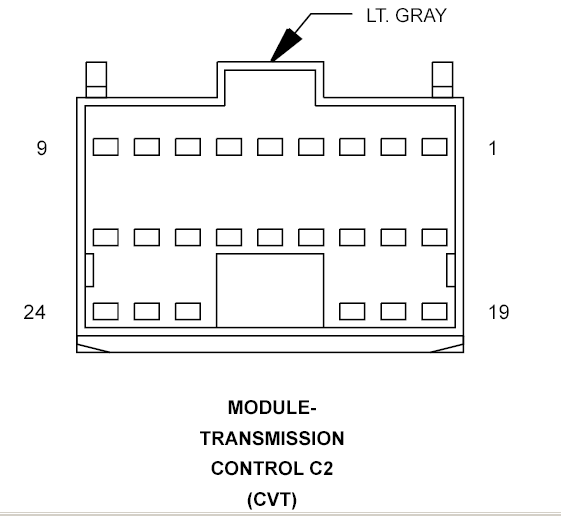

Transmission Control Module (Continuously Variable Transmission) Connector End View (C2)
MODULE-TRANSMISSION CONTROL C2 - LT. GRAY 24 WAY (CVT)
| CAV | CIRCUIT | FUNCTION |
| 1 | Z967 18BK | GROUND |
| 2 | T4 20DG/LB | TRS T4 SIGNAL |
| 3 | - | - |
| 4 | A952 20RD/OR | FUSED B(+) (I.O.D.) |
| 5 | T52 18DG/WT | OUTPUT SPEED SIGNAL |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | T5 20DG/LG | AUTOSTICK UPSHIFT SWITCH SIGNAL (AUTOSTICK) |
| 11 | - | - |
| 12 | T44 20YL/DG | AUTOSTICK DOWNSHIFT SWITCH SIGNAL (AUTOSTICK) |
| 13 | T50 18PK/LB | SECONDARY PRESSURE SIGNAL |
| 14 | T14 18DG/BK | INPUT SPEED SIGNAL |
| 15 | - | - |
| 16 | - | - |
| 17 | T21 18DG/YL | PRIMARY PRESSURE SENSOR SIGNAL |
| 18 | T13 18DG/TN | SENSOR GROUND |
| 19 | T3 20DG/DB | TRS T3 SIGNAL |
| 20 | T1 20DG/GY | TRS T1 SIGNAL |
| 21 | T130 18TN/DG | OUTPUT SPEED SENSOR GROUND |
| 22 | T72 18PK/LB | 5 VOLT SUPPLY (DRIVER CONVENIENCE GROUP) |
| 22 | T72 18PK | 5 VOLT SUPPLY (EXCEPT DRIVER CONVENIENCE GROUP) |
| 23 | T54 18RD/WT | TRANSMISSION TEMPERATURE SIGNAL |
| 24 | Z967 18BK | GROUND |
