2009 Jeep Patriot Limited, EDG, Automatic CVTFACTORY OEM SERVICE PROCEDURE

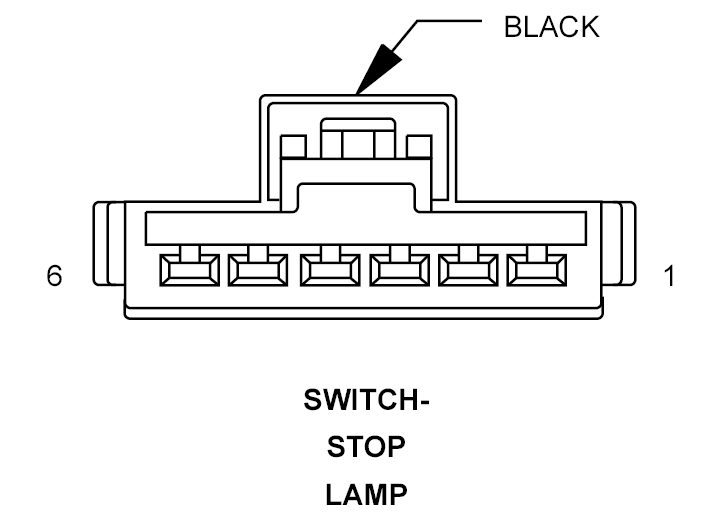

Stop Lamp Switch Connector End View
SWITCH-STOP LAMP - BLACK 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A924 20DG/WT | FUSED B(+) (LHD EXCEPT HIGHLINE) |
| 1 | A924 20RD | FUSED B(+) (RHD/HIGHLINE) |
| 2 | L53 20DG/WT | STOP LAMP SWITCH OUTPUT |
| 3 | F202 18PK/GY | IGNITION SWITCH OUTPUT (RUN-START) |
| 4 | B16 20LB/DG | BRAKE SIGNAL 2 |
| 5 | Z967 18BK/VT | GROUND |
| 6 | B15 20DG/WT | BRAKE SIGNAL 1 (LHD EXCEPT HIGHLINE) |
| 6 | B15 20DG | BRAKE SIGNAL 1 (RHD/HIGHLINE) |
