2009 Jeep Patriot Limited, EDG, Automatic CVTFACTORY OEM SERVICE PROCEDURE

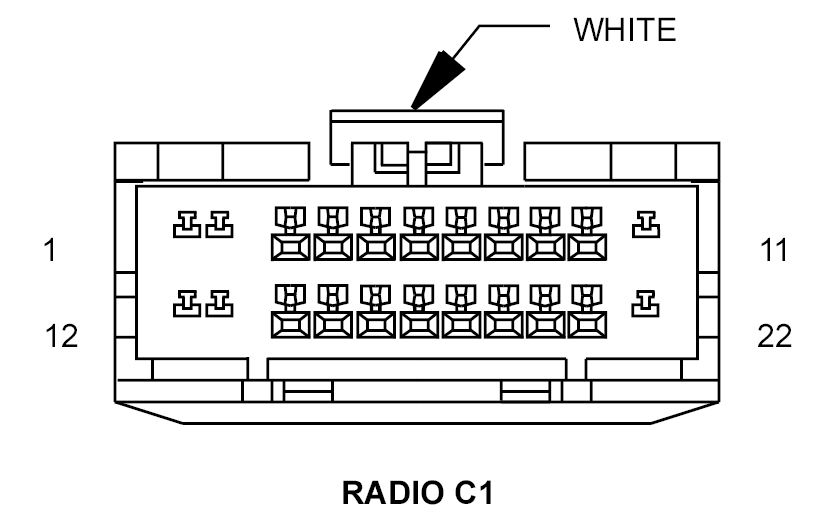

Radio Connector End View (C1)

RADIO C1 - WHITE 22 WAY

GMK880232Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A413 18RD/LB FUSED B(+) (I.O.D.)
2 - -
3 - -
4 X703 22DG/OR LEFT AUDIO OUTPUT (HANDS FREE)
5 D55 20WT/OR CAN B BUS (+)
6 D54 20WT/PK CAN B BUS (-)
7 X202 18DG/VT RIGHT FRONT DOOR SPEAKER (+) (BASE)
8 X292 18DG/YL RIGHT FRONT DOOR SPEAKER (-) (BASE)
9 X291 18GY/YL LEFT FRONT DOOR SPEAKER (-) (BASE)
10 X201 18GY/VT LEFT FRONT DOOR SPEAKER (+) (BASE)
11 Z937 16BK/YL GROUND
12 A413 18RD/LB FUSED B(+) (I.O.D.)
13 X60 20GY/RD POWER ANTENNA SIGNAL (PREMIUM)
14 - -
15 - -
16 X704 22DG/PK RIGHT AUDIO OUTPUT (HANDS FREE)
17 X795 22DG/BK COMMON AUDIO OUTPUT (HANDS FREE)
18 X51 18DG/DB LEFT REAR SPEAKER (+)
19 X57 18DG/BR LEFT REAR SPEAKER (-)
20 X58 18GY/OR RIGHT REAR SPEAKER (-)
21 X52 18GY/DB RIGHT REAR SPEAKER (+)
22 Z937 16BK/YL GROUND
