2009 Jeep Patriot Limited, EDG, Automatic CVTFACTORY OEM SERVICE PROCEDURE

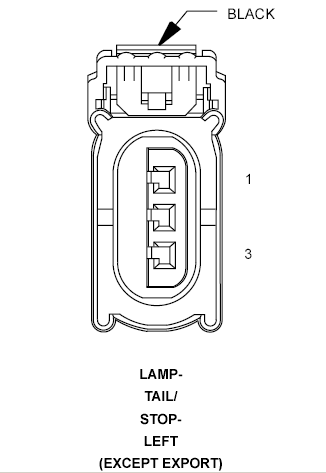

Left Tail Stop Lamp (Except Export) Connector End View

LAMP-TAIL/STOP-LEFT - BLACK 3 WAY (EXCEPT EXPORT)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	L55 20WT/OR	STOP LAMP CONTROL OUTPUT
2	L217 20WT/VT	PARK LAMP CONTROL OUTPUT
3	Z960 18BK/LG	GROUND
