2009 Jeep Patriot Limited, EDG, Automatic CVTFACTORY OEM SERVICE PROCEDURE

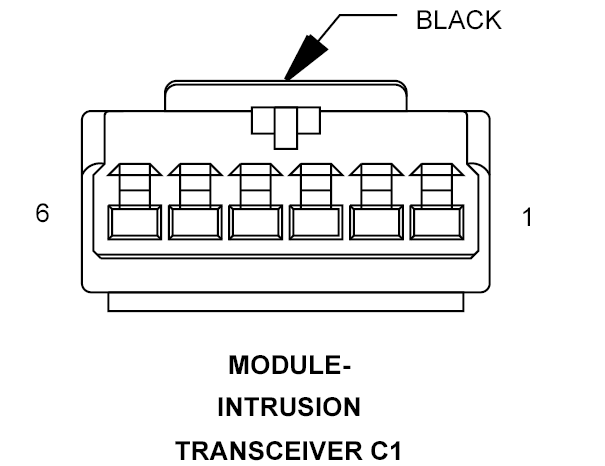

Intrusion Transceiver Module Connector End View (C1)

MODULE-INTRUSION TRANSCEIVER C1 - BLACK 6 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A415 20RD/TN	FUSED B(+) (I.O.D.)
2	-	-
3	D55 20WT/OR	CAN B BUS (+)
4	D54 20WT/PK	CAN B BUS (-)
5	D96 20WT/BR	SIREN SIGNAL CONTROL
6	Z941 20BK/WT	GROUND
