2009 Jeep Patriot Limited, EDG, Automatic CVTFACTORY OEM SERVICE PROCEDURE

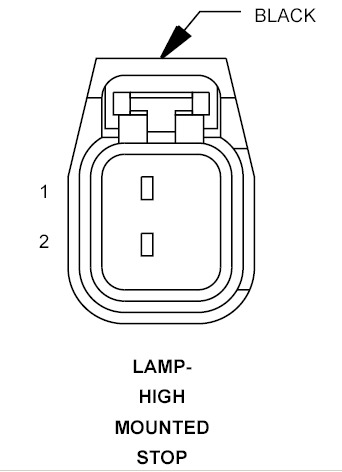

High Mounted Stop Lamp Connector End View

LAMP-HIGH MOUNTED STOP - BLACK 2 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	L53 20DG/WT	STOP LAMP SWITCH OUTPUT (MK49)
1	Z960 20BK/LB	GROUND (MK74)
2	Z960 20BK/LB	GROUND (MK49)
2	L53 20DG/WT	STOP LAMP SWITCH OUTPUT (MK74)
