2009 Jeep Patriot Limited, EDG, Automatic CVTFACTORY OEM SERVICE PROCEDURE

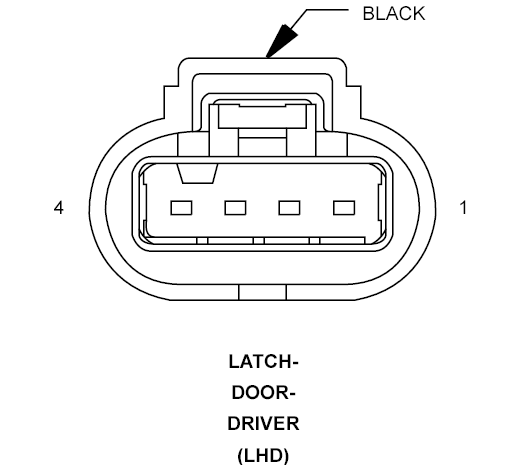

Driver Door Latch (LHD) Connector End View

LATCH-DOOR-DRIVER - BLACK 4 WAY (LHD)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P238 20TN/DG	DRIVER DOOR UNLOCK DRIVER (POWER LOCKS)
2	P33 20TN/DB	DOOR LOCK DRIVER (POWER LOCKS)
3	G75 20VT/DB	LEFT FRONT DOOR AJAR SWITCH SENSE
4	Z928 20BK/LG	GROUND
