2009 Jeep Patriot Limited, EDG, Automatic CVTFACTORY OEM SERVICE PROCEDURE

Diagnostic Test

  1. DETERMINING IF DIAGNOSTIC TROUBLE CODE (DTC) IS CURRENT
    NOTE: Diagnose any related Powertrain DTCs before continuing.
    1. With a scan tool, read and record DTCs.
    2. With the scan tool, clear DTCs.
    3. Perform 5 ignition cycles, leaving the ignition switch on for a minimum of 90 seconds per cycle.
    4. Using the scan tool, read DTCs.

      Does the DTC reset?

      Yes

      • Go to step  3

      No

      • Go to step  2
  2. INTERMITTENT CONDITION
    NOTE: Check for any of the follow conditions:
    • Poor wire to terminal connection
    • Corroded terminals
    • Backed out or loose terminals
    • Broken wire internal to the insulation
    • Dirty (partial) module ground
    1. With the ignition on, wiggle the related wires.
    2. Using a scan tool, read DTCs.

      Does the DTC reset?

      Yes

      No

      • DTC is not active at this time. Test complete.
  3. FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN

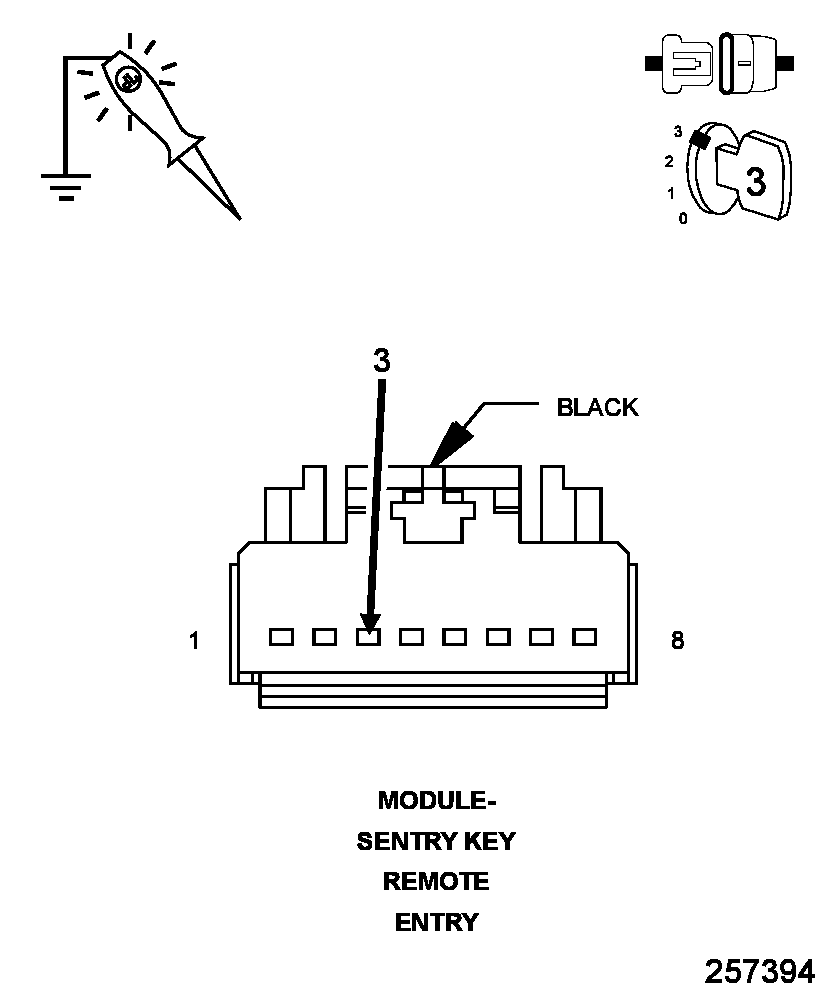

    Fig 1: Checking Fused Ignition Switch Output (Run-Start) Circuit
    GC0100384Courtesy of CHRYSLER LLC
