Diagnostic Test
- CHECK FOR ACTIVE DTC
- With the scan tool, read the active DTCs.
- Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.
- Attempt to make a phone call with the system.
- With the scan tool, read the active DTCs.
Does the scan tool display this DTC as active?
Yes
- Go to step 2
No
- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
- INSIDE REARVIEW MIRROR
- Turn the ignition off.

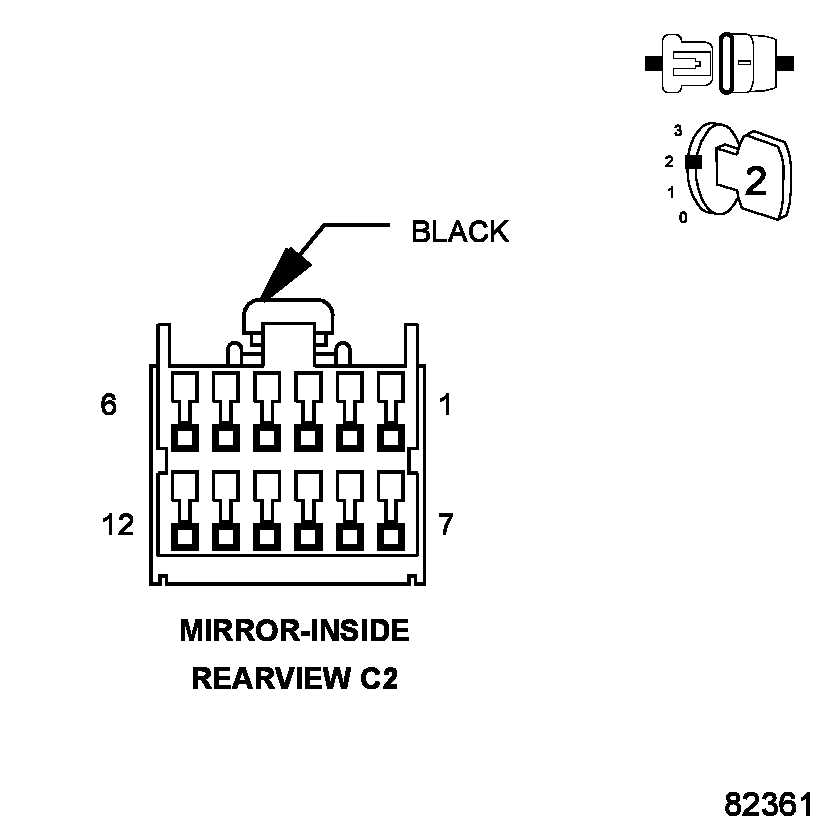

- Disconnect the Rearview Mirror C2 harness connector.
- Turn the ignition on.
- With the scan tool, read the active DTCs.
Does the scan tool display this DTC as active?
Yes
- Go to step 3
No
- Replace the Rearview Mirror in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
- (X722) MICROPHONE CIRCUITS SHORTED TO VOLTAGE
- Turn the ignition off.
- Disconnect the Hands Free Module harness connector.
- Turn the ignition on.

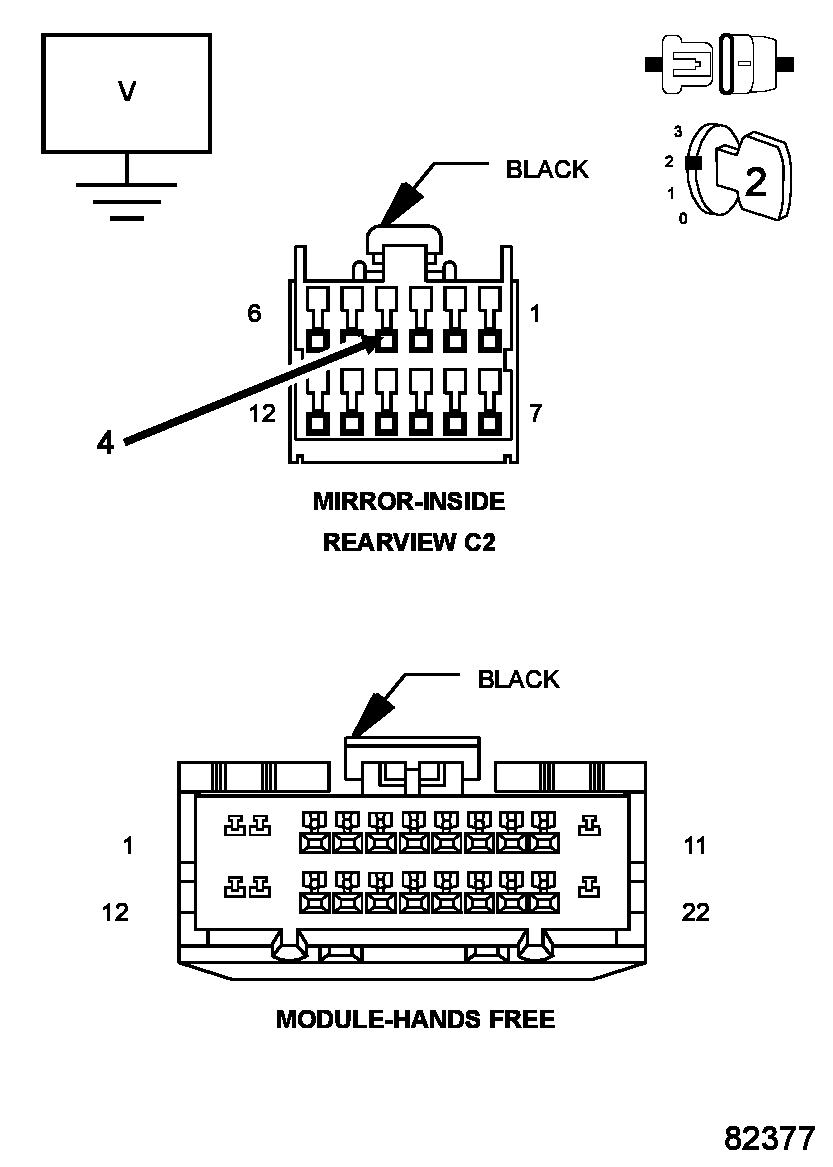

- Measure the voltage of the (X722) Microphone circuit.
Is the voltage above 1.0 volt?
Yes
- Repair the (X722) Microphone circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
No
- Go to step 4
- (X722) MICROPHONE 2 IN (+) CIRCUIT OPEN
- Turn the ignition off.

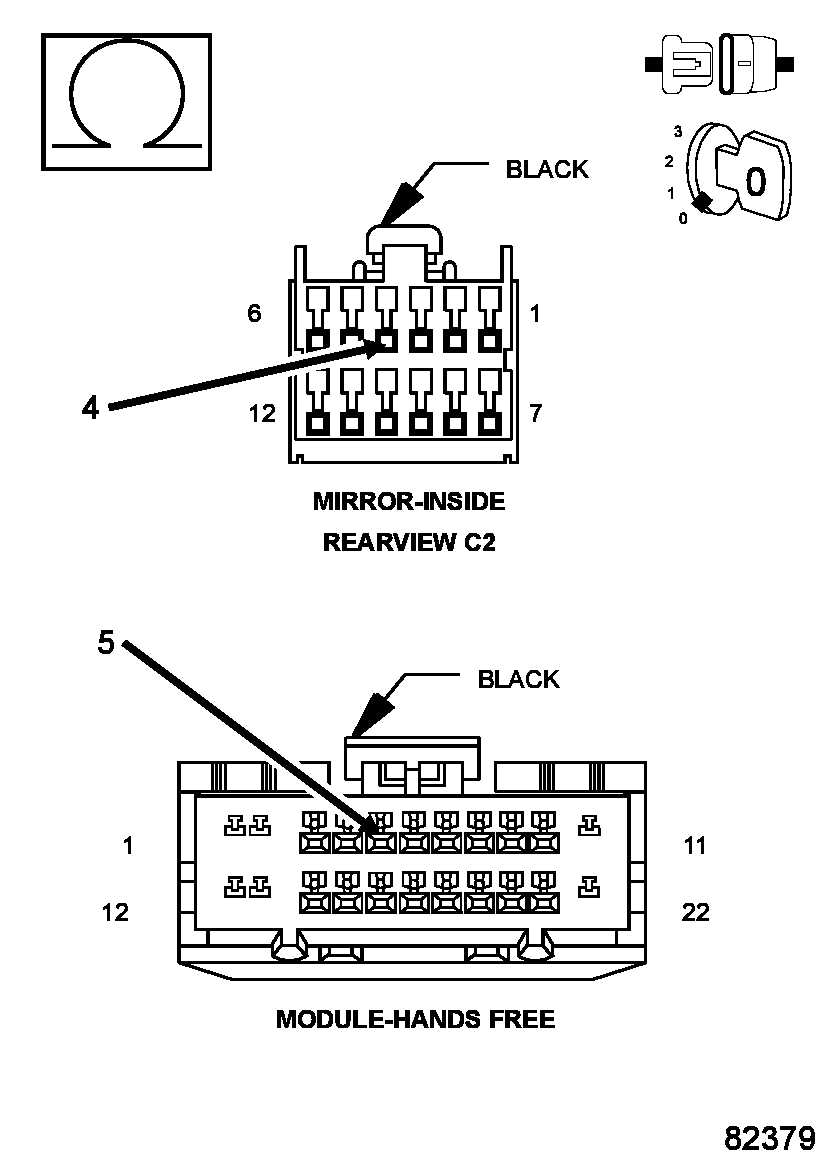

- Measure the resistance of the (X722) Microphone 2 IN (+) circuit between the HFM connector and the inside rearview mirror connector.
Is the resistance below 5.0 ohms?
Yes
- Replace the Hands Free Module in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
No
- Repair the (X722) Microphone 2 IN (+) circuit for an open.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
