2009 Jeep Liberty Limited, 4WD, Part TimeFACTORY OEM SERVICE PROCEDURE

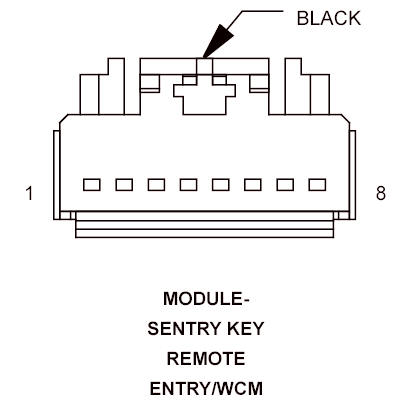

Sentry Key Remote Entry Module (Wireless Control Module) Connector End View
MODULE-SENTRY KEY REMOTE ENTRY/WCM - BLACK 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | G20 20VT/BR | IGNITION SWITCH SENSE |
| 2 | D508 20WT/GY | COM-LIN TIRE PRESSURE MONITOR LAN |
| 3 | F20 20PK/WT | IGNITION SWITCH OUTPUT (RUN-START) |
| 4 | Z910 18BK | GROUND |
| 5 | A412 18RD | FUSED B(+) |
| 6 | D65B 20WT/BK | CAN C BUS (+) |
| 7 | D64 20WT/LB | CAN C BUS (-) |
| 8 | - | - |
