2009 Jeep Liberty Limited, 4WD, Part TimeFACTORY OEM SERVICE PROCEDURE

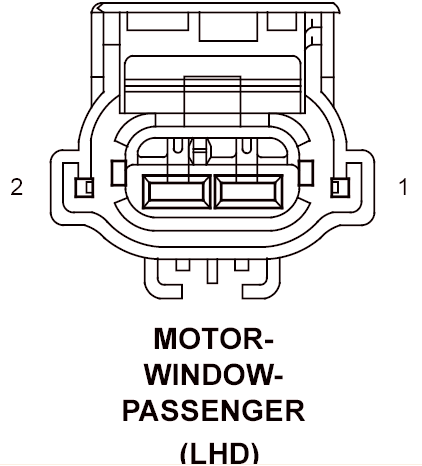

Passenger Window Motor (LHD) Connector End View

MOTOR-WINDOW-PASSENGER - 2 WAY (LHD)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Q12 14OR/BR	PASSENGER WINDOW DRIVER (DOWN) (BASE)
1	Q312 14DB/OR	RIGHT FRONT WINDOW EXPRESS UP DRIVER (EXCEPT BASE)
2	Q22 14OR/VT	PASSENGER WINDOW DRIVER (UP) (BASE)
2	Q322 14LG/OR	RIGHT FRONT WINDOW EXPRESS DOWN DRIVER (EXCEPT BASE)
