2009 Jeep Liberty Limited, 4WD, Part TimeFACTORY OEM SERVICE PROCEDURE

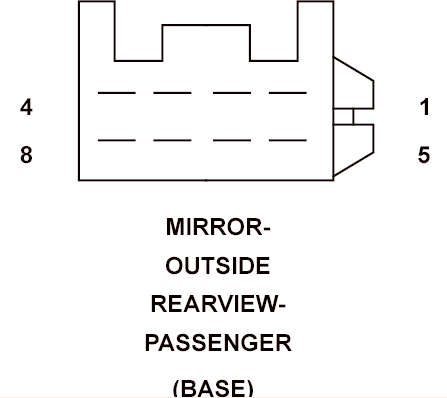

Passenger Outside Rearview Mirror (Base) Connector End View

MIRROR-OUTSIDE REARVIEW-PASSENGER - 8 WAY (BASE)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P72 20TN/GY	PASSENGER MIRROR VERTICAL DRIVER
2	P76 20TN/LB	MIRROR COMMON DRIVER
3	P74 20TN/OR	PASSENGER MIRROR HORIZONTAL DRIVER
4	-	-
5	C110 20DB/LB	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
6	Z913 20BK/BR	GROUND
7	-	-
8	-	-
