2009 Jeep Liberty Limited, 4WD, Part TimeFACTORY OEM SERVICE PROCEDURE

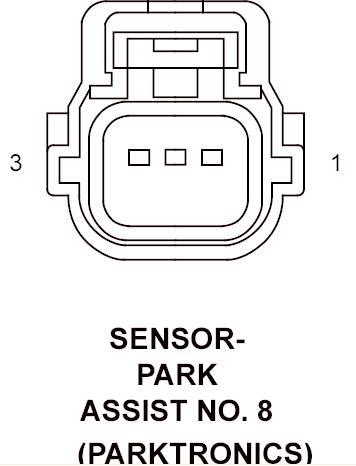

Park Assist Sensor 8 (Parktronics) Connector End View

SENSOR-PARK ASSIST-NO. 8 - 3 WAY (PARKTRONICS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	X700 20GY/OR	PARK ASSIST SENSOR SUPPLY
2	X750 20GY/LB	PARK ASSIST SENSOR GROUND
3	D701 20WT/LB	PARK ASSIST SENSOR NO. 8 SIGNAL
