2009 Jeep Liberty Limited, 4WD, Part TimeFACTORY OEM SERVICE PROCEDURE

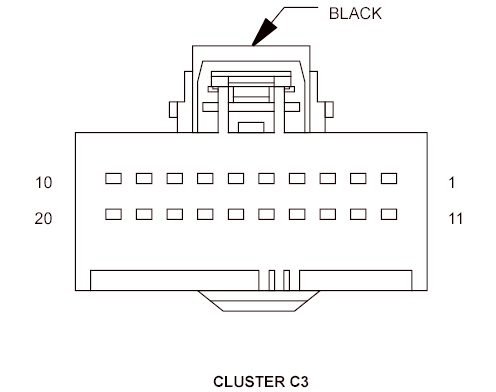

Instrument Cluster Connector End View (C3)
CLUSTER C3 - BLACK 20 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | X20 22GY/WT | RADIO CONTROL MUX |
| 10 | X3 22DG/VT | HORN SWITCH SENSE |
| 11 | K321 20BR/YL | BTSI UNLOCK SIGNAL |
| 12 | K77 22BR/WT | TRANSFER CASE POSITION SENSOR INPUT |
| 13 | - | - |
| 14 | T6 20DG | TOW/HAUL OD OFF SIGNAL |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | P806 20LG/WT | INVERTER STATUS INDICATOR DRIVER |
| 19 | - | - |
| 20 | - | - |
