2009 Jeep Liberty Limited, 4WD, Part TimeFACTORY OEM SERVICE PROCEDURE

Inline Connector End View (C307 )

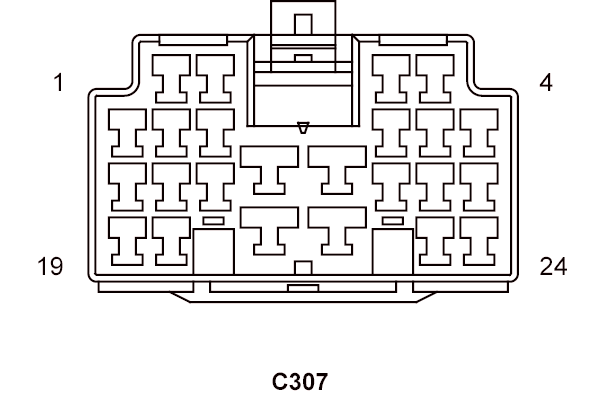

C307 - 24 WAY FEMALE

GKK880059Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
2 P930 18TN/WT DRIVER FRONT DOOR LOCK DRIVER
3 Z913 18BK/PK GROUND
4 Z913 14BK/RD GROUND
5 - -
6 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
7 P235 14LG/TN SECONDARY DOOR LOCK RELAY OUTPUT (RHD)
8 X201 18GY/VT LEFT FRONT SPEAKERS (+)
8 X202 18DG/VT AMPLIFIED RIGHT DOOR SPEAKER (+) (RHD)
9 X291 18GY/YL LEFT FRONT SPEAKERS (-)
9 X292 18DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) (RHD)
10 - -
11 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
12 P237 14DG/TN SECONDARY DOOR UNLOCK RELAY OUTPUT (RHD)
13 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
14 F30 14PK/YL FUSED RUN/ACCESSORY RELAY OUTPUT
15 A215 14RD/LG FUSED B(+)
16 Q26 14OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN)
17 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
18 A855 20DG/RD FUSED B(+)
19 C110 20DB/LB FUSED REAR WINDOW DEFOGGER RELAY OUTPUT (LHD)
20 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
21 Z913 14BK/WT GROUND
22 Z913 14BK/TN GROUND (LHD)
23 P910 18TN/LG DRIVER FRONT DOOR UNLOCK DRIVER
24 Z913 20BK/OR GROUND
24 A855 18DG/RD FUSED B(+) (POWER WINDOWS)

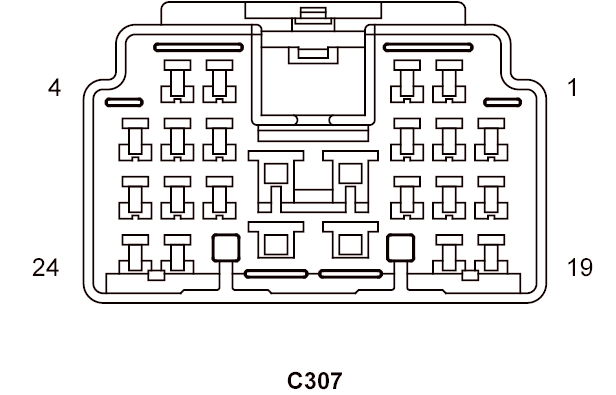

C307 - 24 WAY MALE

GKK880060Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
2 P930 18TN/WT LEFT FRONT DOOR LOCK DRIVER
3 Z913 18BK/PK GROUND
4 Z913 14BK/RD GROUND
5 - -
6 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
7 P235 16LG/TN SECONDARY DOOR LOCK RELAY OUTPUT (RHD)
8 X201 18GY/VT LEFT FRONT SPEAKERS (+) (LHD)
8 X202 18DG/VT RIGHT FRONT SPEAKERS (+) (RHD)
9 X291 18GY/YL LEFT FRONT SPEAKERS (-) (LHD)
9 X292 18DG/YL RIGHT FRONT SPEAKERS (-) (RHD)
10 - -
11 Q412 14OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
12 P237 16DG/TN SECONDARY DOOR UNLOCK RELAY OUTPUT (RHD)
13 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
14 F30 14PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
15 A215 14RD/LG FUSED B(+) (POWER WINDOWS)
16 Q26 14OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN)
17 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
18 A855 20DG/RD FUSED B(+) (EXCEPT POWER WINDOWS)
19 C110 20DB/LB FUSED REAR WINDOW DEFOGGER RELAY OUTPUT (EXCEPT POWER WINDOWS)
20 Q15 14OR/LB WINDOW LOCK OUT SWITCH OUTPUT
21 Z913 14BK/WT GROUND (POWER WINDOWS)
22 Z913 14BK/TN GROUND (LHD)
23 P910 18TN/LG LEFT FRONT DOOR UNLOCK DRIVER
24 Z913 20BK/OR GROUND (EXCEPT POWER WINDOWS)
24 A855 18DG/RD FUSED B(+) (POWER WINDOWS)
