2009 Jeep Liberty Limited, 4WD, Part TimeFACTORY OEM SERVICE PROCEDURE

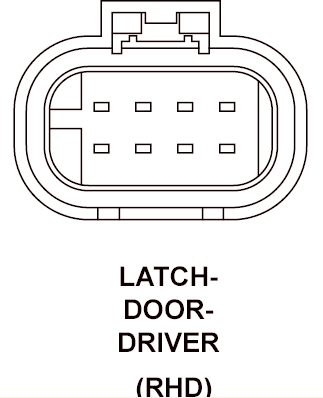

Driver Door Latch (RHD) Connector End View
LATCH-DOOR-DRIVER - 8 WAY (RHD)
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | P237 16DG/TN | SECONDARY DOOR UNLOCK RELAY OUTPUT |
| 4 | P235 16LG/TN | SECONDARY DOOR LOCK RELAY OUTPUT |
| 5 | P910 18TN/LG | DRIVER DOOR UNLOCK DRIVER |
| 6 | P930 18TN/WT | DRIVER DOOR LOCK DRIVER |
| 7 | G75 20VT | PASSENGER DOOR AJAR SWITCH SENSE |
| 8 | Z913 18BK/PK | GROUND |
