Diagnostic Test
- TEST FOR INTERMITTENT CONDITION
- Turn the ignition on.
- With the scan tool, record and erase DTCs.
- Turn the ignition off and remove the key from the ignition.
- Close all doors and arm the VTSS and wait two minutes.
- Disarm the VTSS turn the ignition on.
- Turn the ignition on and with the scan tool, read DTCs.
Does the scan tool display this DTC as active?
Yes
- Go to step 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure

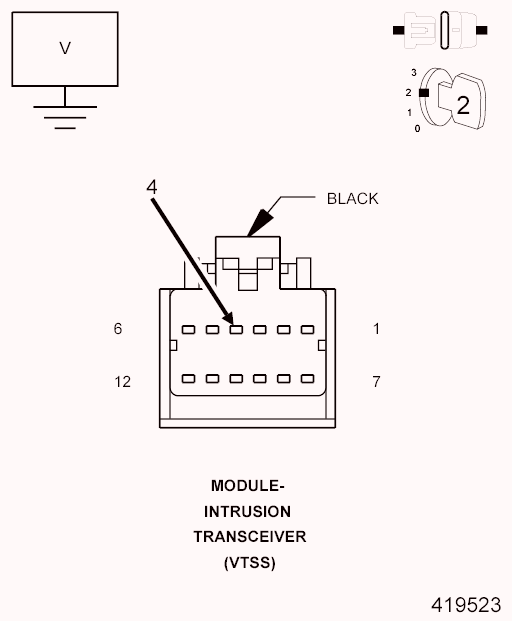

- CHECK THE (G460) INTRUSION RECEIVER SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
Courtesy of CHRYSLER LLC
- Turn the ignition off.
- Disconnect the Intrusion Sensor Receiver connector.
- Disconnect the Intrusion Transceiver Module connector.
- Measure for voltage between chassis ground and the (G460) Intrusion Receiver Sensor Signal circuit at the Intrusion Transceiver Module connector.
Is there any voltage present?
Yes
- Repair the (G460) Intrusion Receiver Sensor Signal circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
No
- Replace the Intrusion Transceiver Module in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
