2009 Jeep Liberty 4WD V6-3.7L
System Specifications
2009 Jeep Liberty 4WD V6-3.7LSECTION System Specifications
Timing Belt/Chain Tensioner
Timing Chain Tensioner Arm Bolt 28 Nm (250 in lbs.)

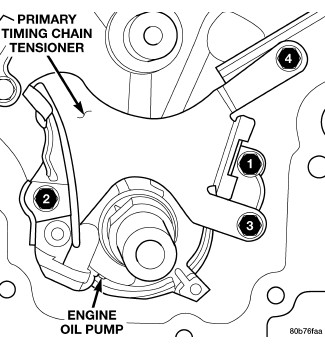

Timing Chain Primary Tensioner Bolts 28 Nm (250 in lbs.)
Crankshaft Pulley/Timing Gear Mounting Bolt
Crankshaft Damper Bolt 175 Nm (130 ft. lbs)
Timing Cover

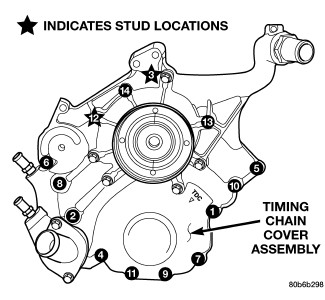

Timing Chain Cover Bolts 58 Nm (43 ft. lbs)
OIL PUMP
Timing Chain Tensioner Arm Bolt 28 Nm (250 in lbs.)
Timing Chain Primary Tensioner Bolts 28 Nm (250 in lbs.)
Crankshaft Pulley/Timing Gear Mounting Bolt
Crankshaft Damper Bolt 175 Nm (130 ft. lbs)
Timing Cover
Timing Chain Cover Bolts 58 Nm (43 ft. lbs)
OIL PUMP
