2009 Jeep Liberty 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
System Specifications
Surface Variation - Head-to-block
Cylinder Head For Out-of-flatness 0.0508 mm (0.002 in.)
Cylinder Bore
Cylinder Bore Diameter 93.013 ± 0.0075 mm (3.6619 ± 0.0003 in.)
Taper (MAX) 0.051 mm (0.002 in.)
Out of Round (MAX) 0.076 mm (0.003 in.)

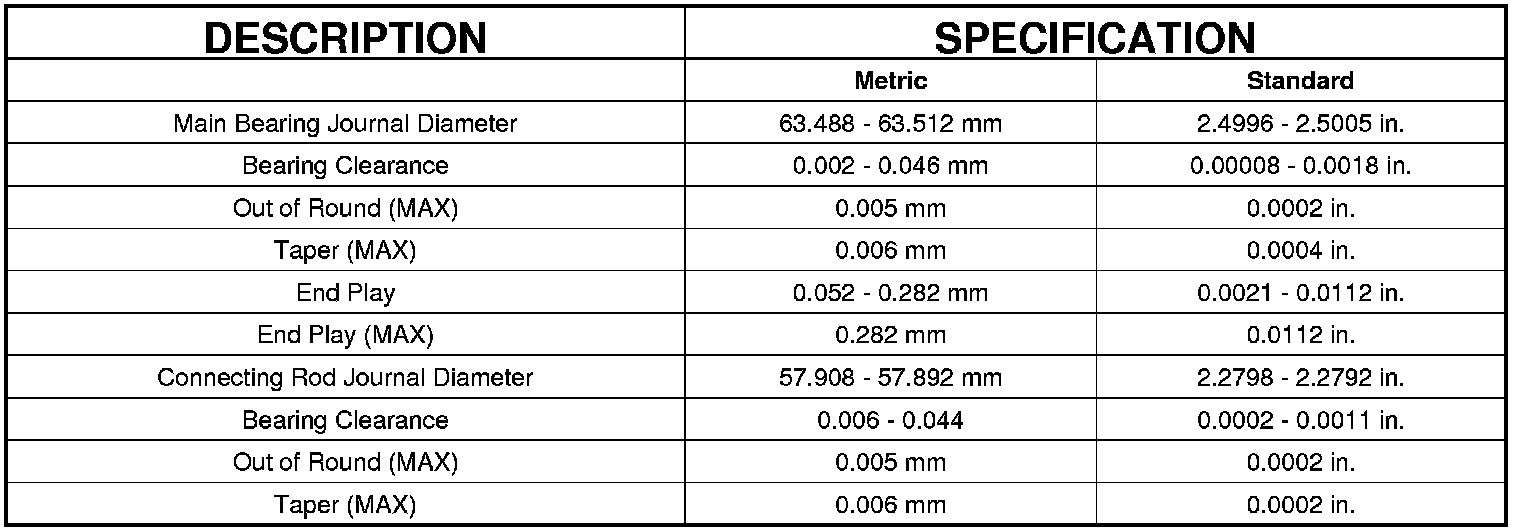

Crankshaft

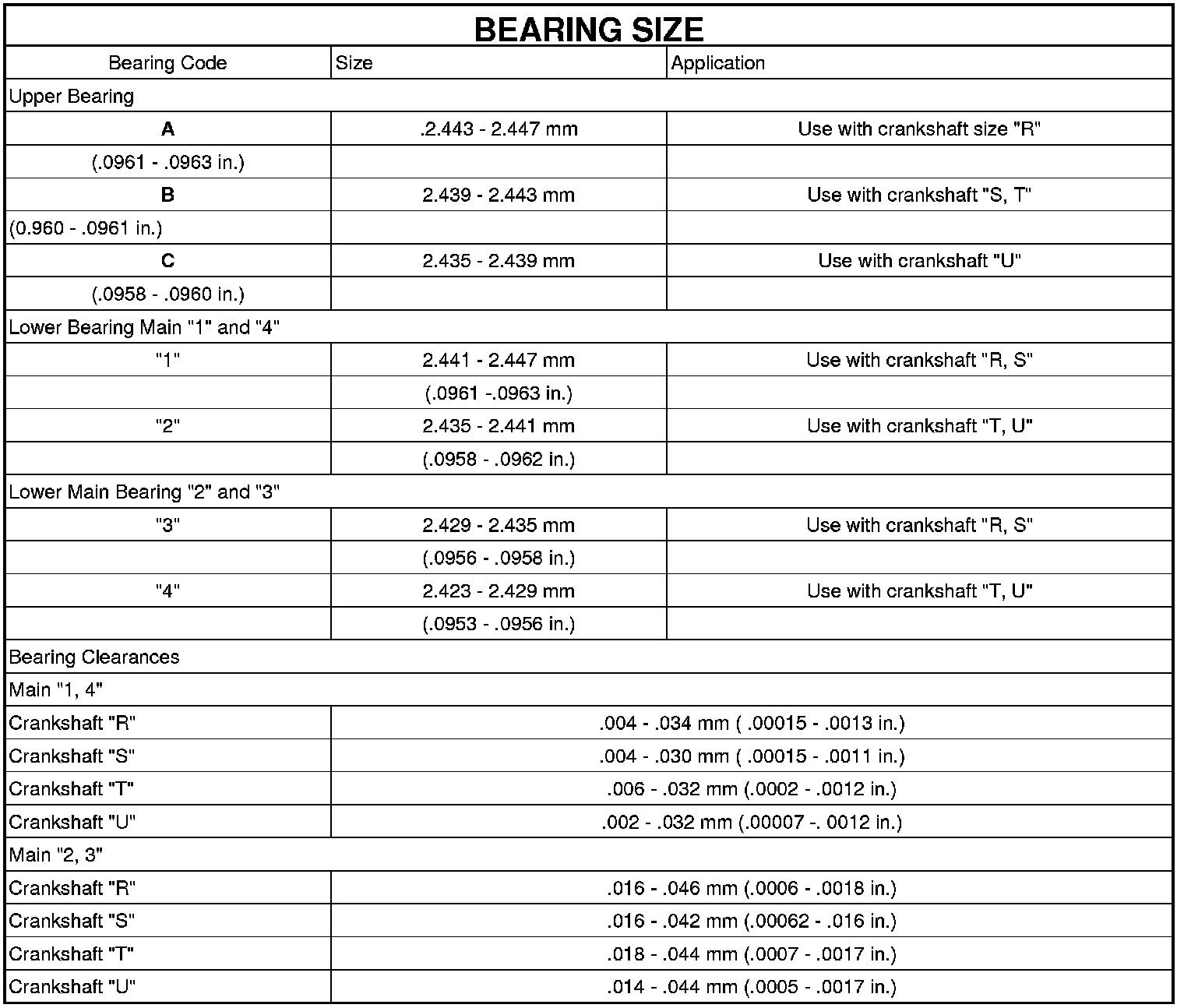

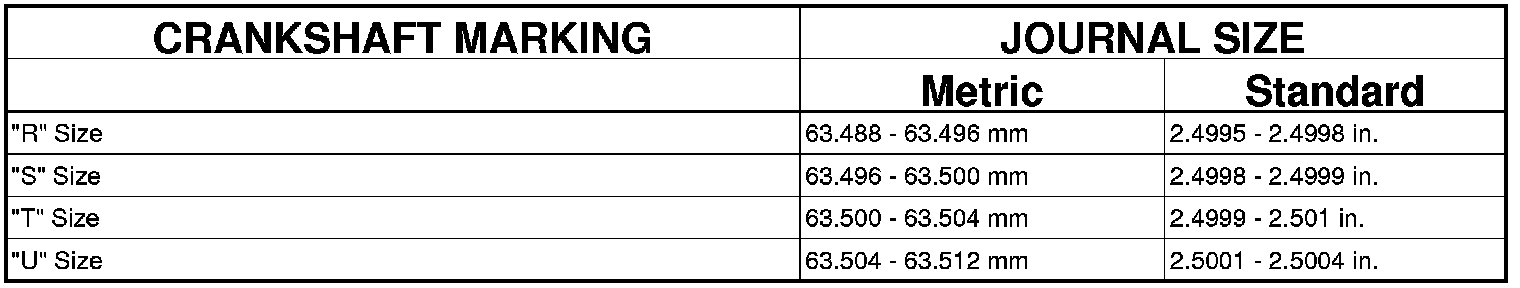

Crankshaft Main Bearing Selection
Main Bearing Cap

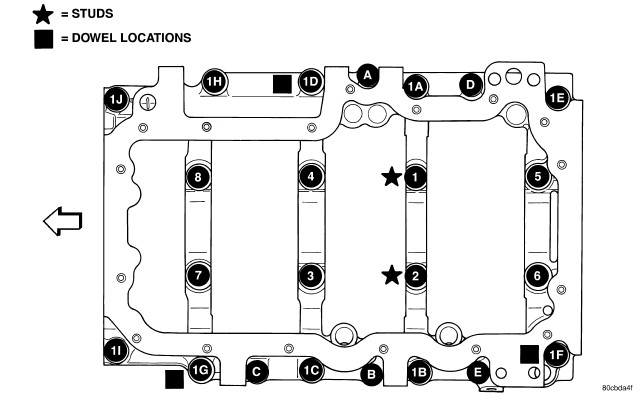

Hand tighten bolts 1D,1G and 1F until the bedplate contacts the block.
Tighten bolts 1A - 1J 54 Nm (40 ft. lbs.)
Tighten bolts 1 - 8 7 Nm (5 ft. lbs.)
Turn bolts 1 - 8 an additional 90°.
Tighten bolts A - E 27 Nm ( 20 ft. lbs.)

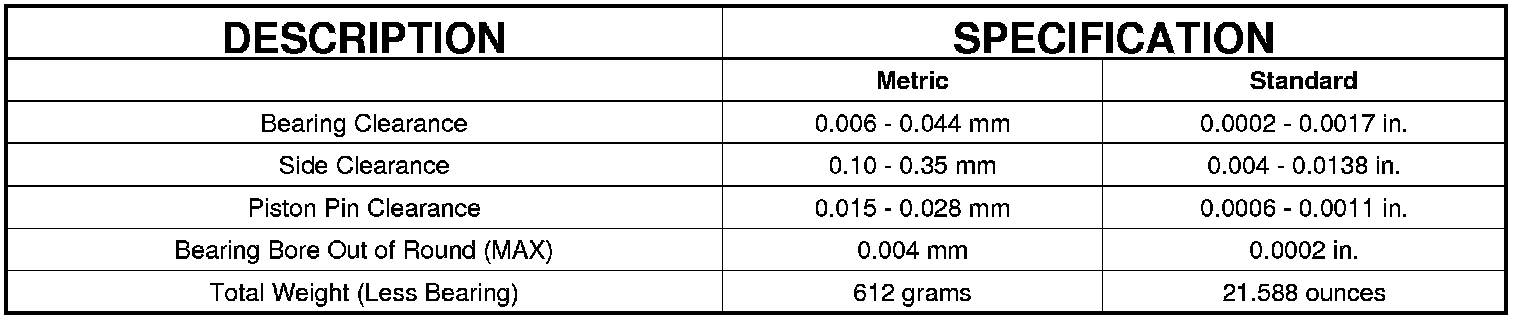

CONNECTING RODS
Piston Dimensions and Clearances

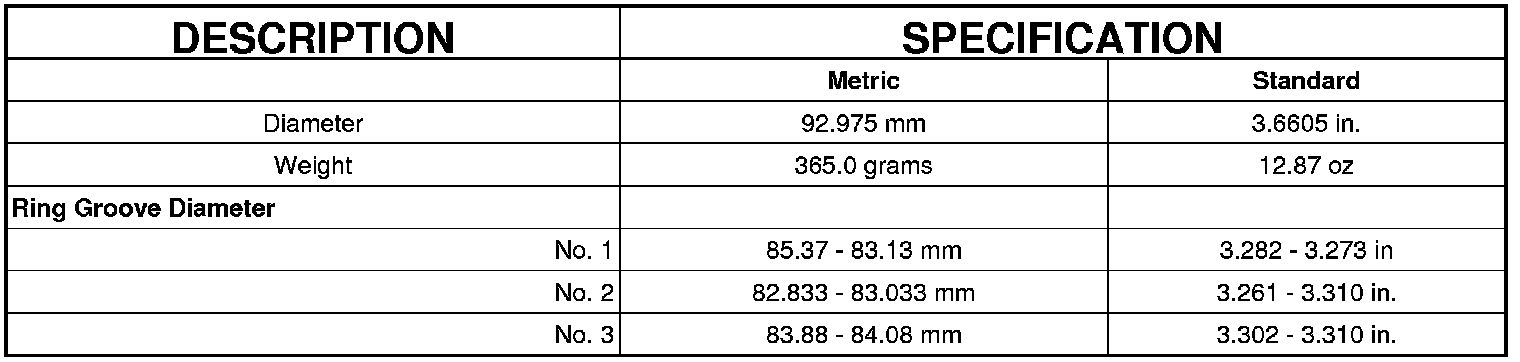

PISTONS

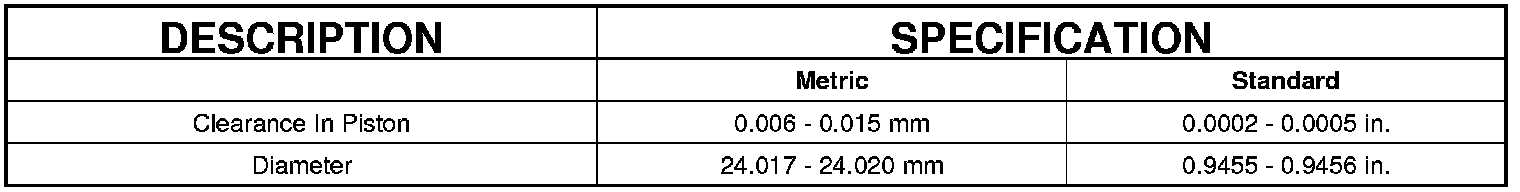

PISTON PINS

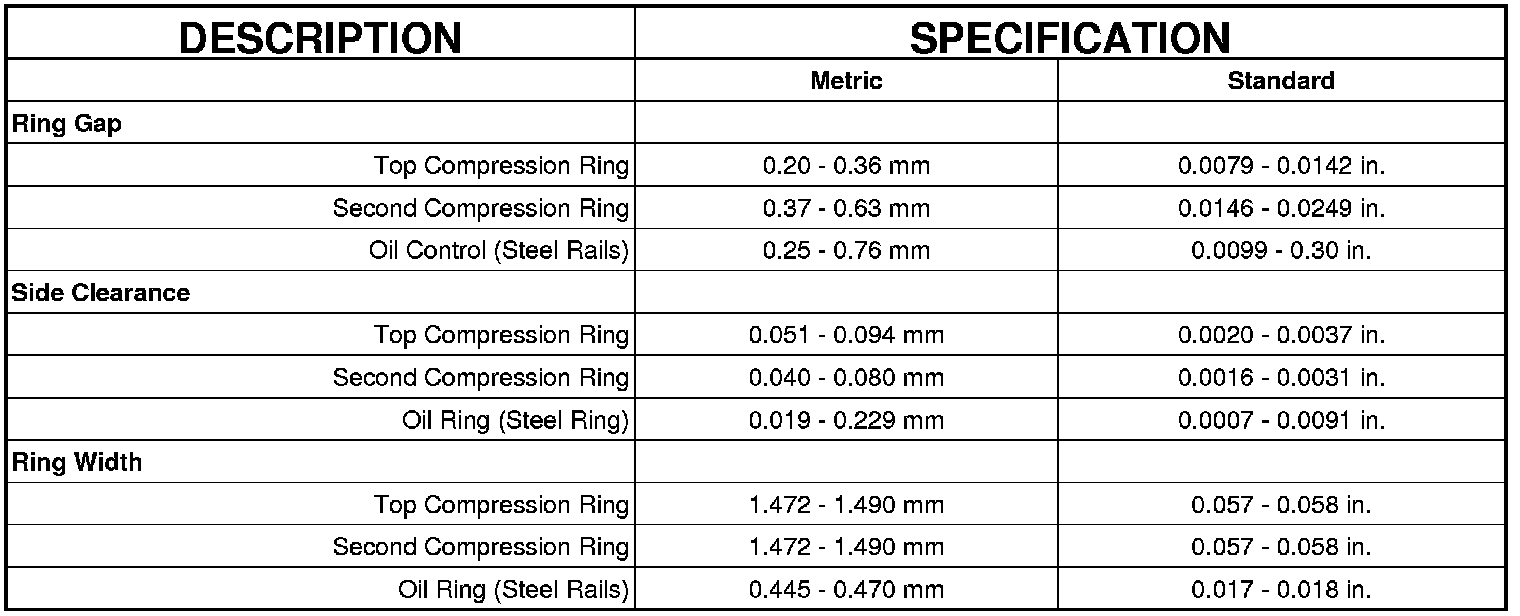

PISTON RINGS
Crankshaft Pulley
Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)
Cylinder Head For Out-of-flatness 0.0508 mm (0.002 in.)
Cylinder Bore
Cylinder Bore Diameter 93.013 ± 0.0075 mm (3.6619 ± 0.0003 in.)
Taper (MAX) 0.051 mm (0.002 in.)
Out of Round (MAX) 0.076 mm (0.003 in.)
Crankshaft
Crankshaft Main Bearing Selection
Main Bearing Cap
Hand tighten bolts 1D,1G and 1F until the bedplate contacts the block.
Tighten bolts 1A - 1J 54 Nm (40 ft. lbs.)
Tighten bolts 1 - 8 7 Nm (5 ft. lbs.)
Turn bolts 1 - 8 an additional 90°.
Tighten bolts A - E 27 Nm ( 20 ft. lbs.)
CONNECTING RODS
Piston Dimensions and Clearances
PISTONS
PISTON PINS
PISTON RINGS
Crankshaft Pulley
Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)
