2009 Jeep Liberty 4WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Powertrain Control Module - Removal
REMOVAL
NOTE: Right hand drive PCM is in a different location (shown below).

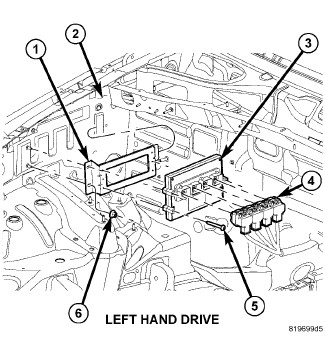

1. The PCM (Powertrain Control Module) (3-Left Hand Drive), or (3-Right Hand Drive) is located in the engine compartment.
2. Disconnect negative battery cable.
3. Disconnect PCM electrical connectors (4-Left Hand Drive), or (5-Right Hand Drive).
4. Remove PCM mounting screws (5-Left Hand Drive), or (4-Right Hand Drive).
5. Remove PCM (3-Left Hand Drive), or (3-Right Hand Drive) from vehicle.

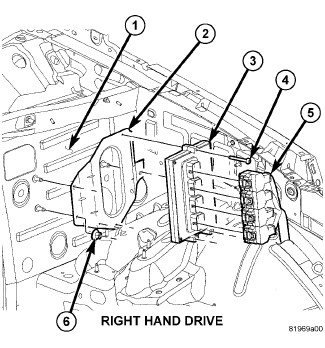

Right hand drive location:
