2009 Jeep Compass Sport, 2.4 B, ED3, FWD, StandardFACTORY OEM SERVICE PROCEDURE

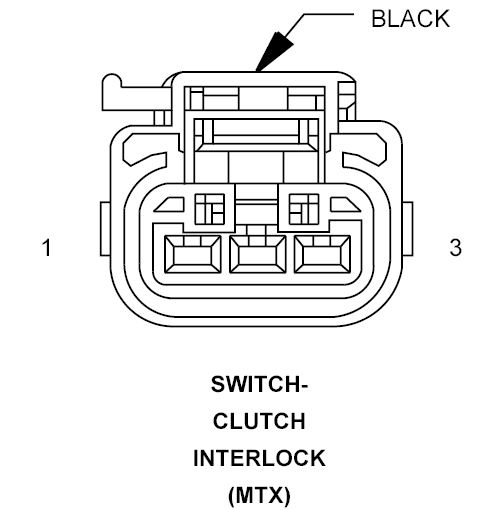

Clutch Interlock Switch (M/T) Connector End View

SWITCH-CLUTCH INTERLOCK - BLACK 3 WAY (MTX)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	T26 20DG/OR	CLUTCH UPSTOP SWITCH SIGNAL (DIESEL)
2	Z925 20BK/OR	GROUND (DIESEL)
2	Z961 20BK/YL	GROUND (GAS)
3	T141 20YL/RD	CLUTCH INTERLOCK SIGNAL
