2009 Jeep Compass Sport, 2.4 B, ED3, FWD, StandardFACTORY OEM SERVICE PROCEDURE

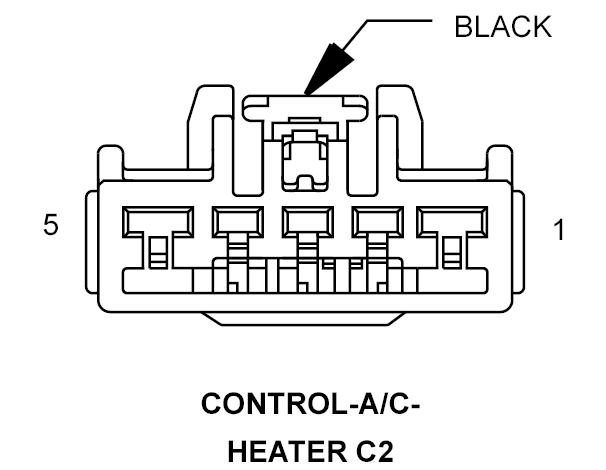

A/C Heater Control Connector End View (C2)

CONTROL-A/C-HEATER C2 - BLACK 5 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C70 12DB/YL	BLOWER MOTOR HIGH SPEED
2	C73 18DB/VT	FRONT BLOWER M2 SPEED
3	C72 18DB/OR	FRONT BLOWER M1 SPEED
4	C71 18DB/BR	FRONT BLOWER LOW SPEED
5	Z936 12BK/LB	GROUND
