2009 Jeep Compass Limited, EDG, Automatic CVTFACTORY OEM SERVICE PROCEDURE
Spark Plug: Removal: Removal
- Disconnect the negative battery cable.

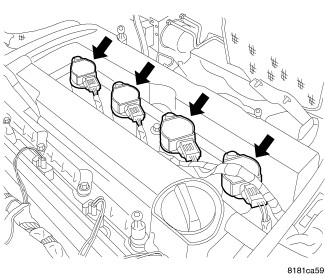

- Disconnect the electrical connectors from ignition coils.

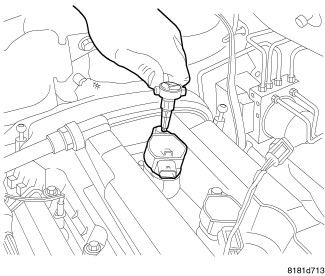

- Remove the ignition coil mounting bolt.

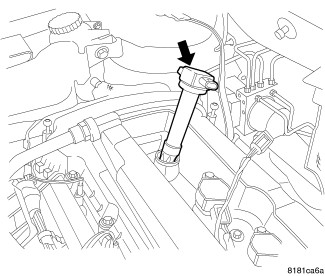

- Twist the ignition coil then pull straight up.

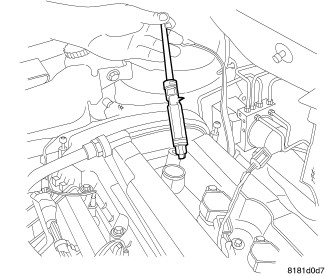

- Remove the spark plug using a quality socket with a rubber or foam insert.
- Inspect the spark plug condition.
