2009 Jeep Compass 2WD L4-2.0LFACTORY OEM SERVICE PROCEDURE
Computers and Control Systems: Tools and Equipment
SPECIAL TOOLS

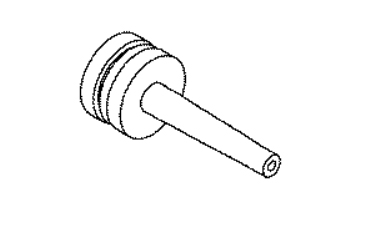

ADAPTER, LEAK CHECK - 8382

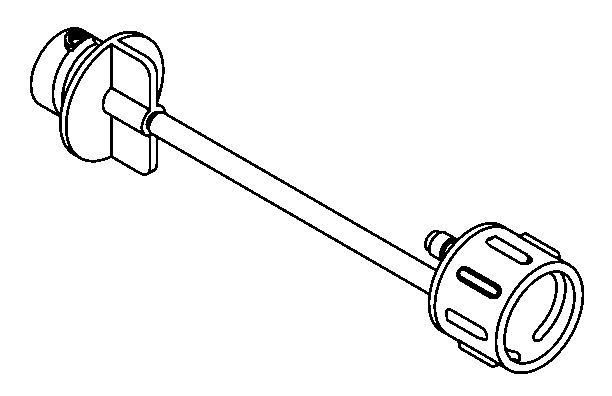

ADAPTER, LEAK CHECK - 8399

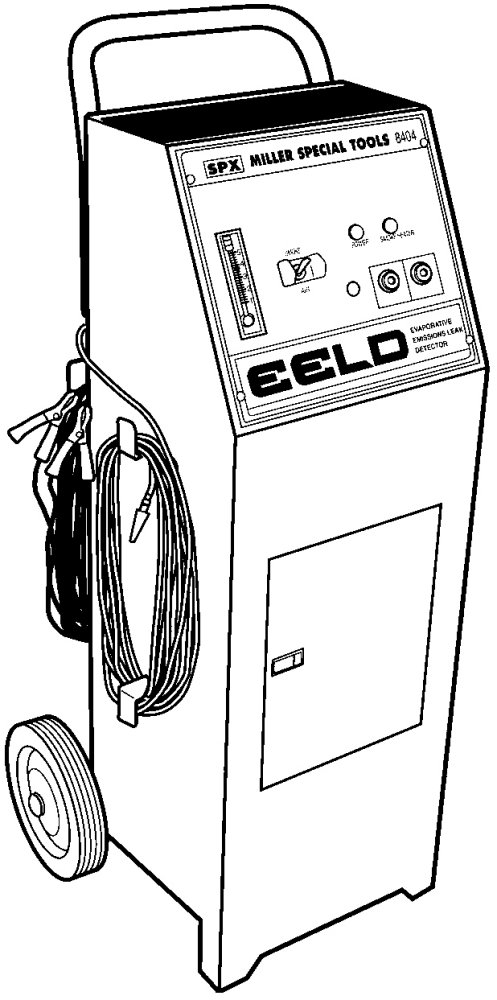

EELD MACHINE - 8404A

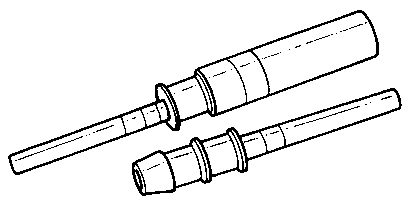

ADAPTER, SERVICE PORT - 8404-14
ADAPTOR, EELD- 8404-ADP

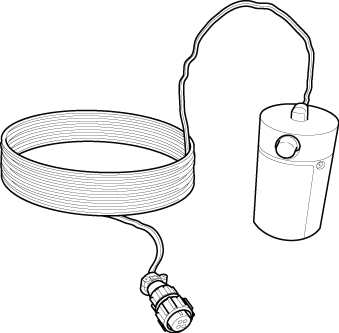

LIGHT - 8404-CLL
ULTRAVIOLET (UV) BLACK LIGHT - 8404-UVL

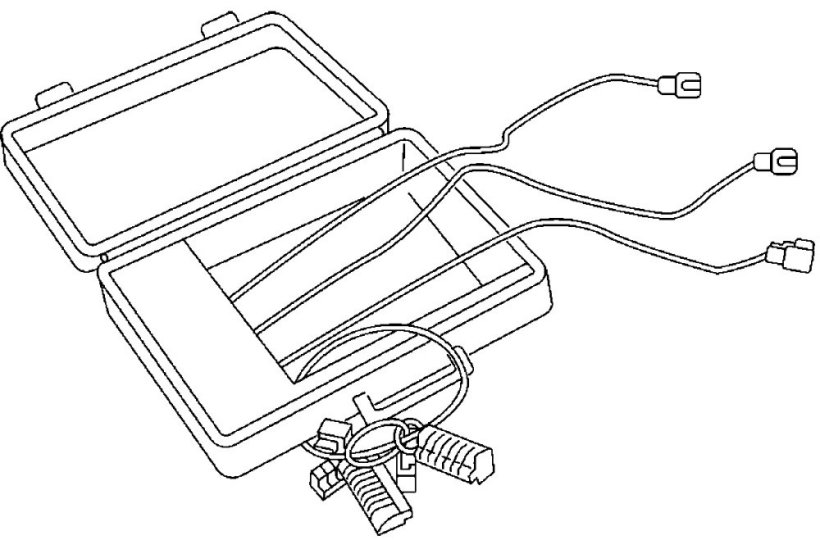

LOAD TOOL KIT, SRS - 8443A

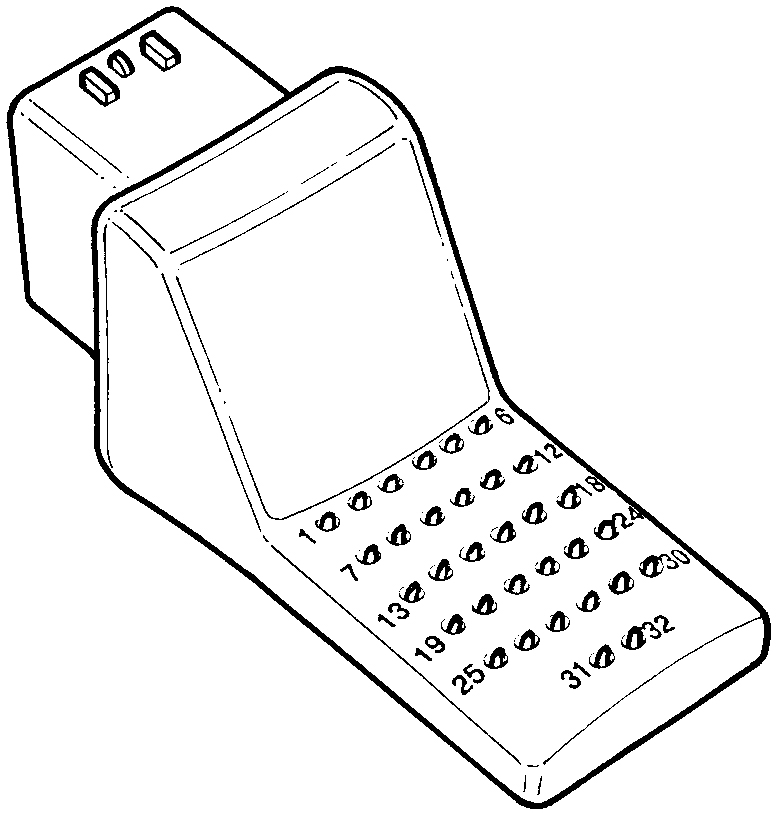

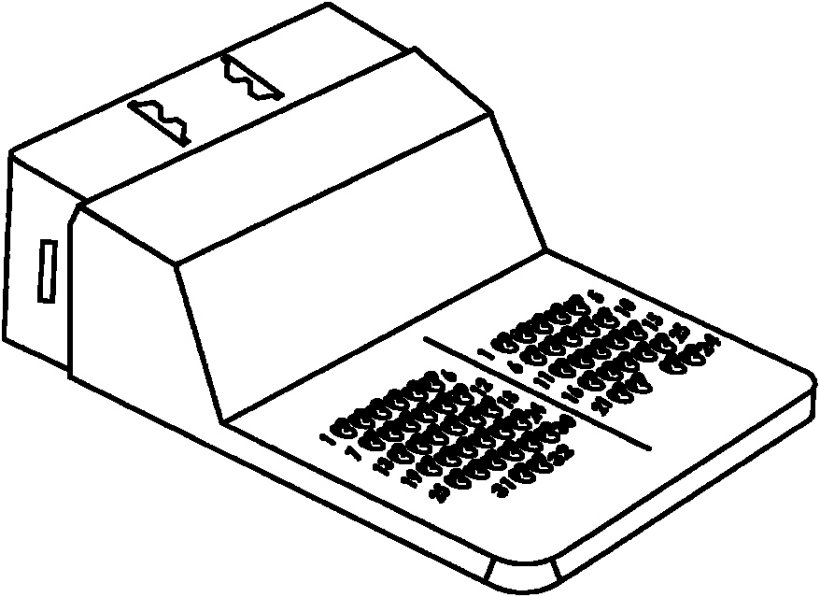

ADAPTER, 32-WAY - 8443-24

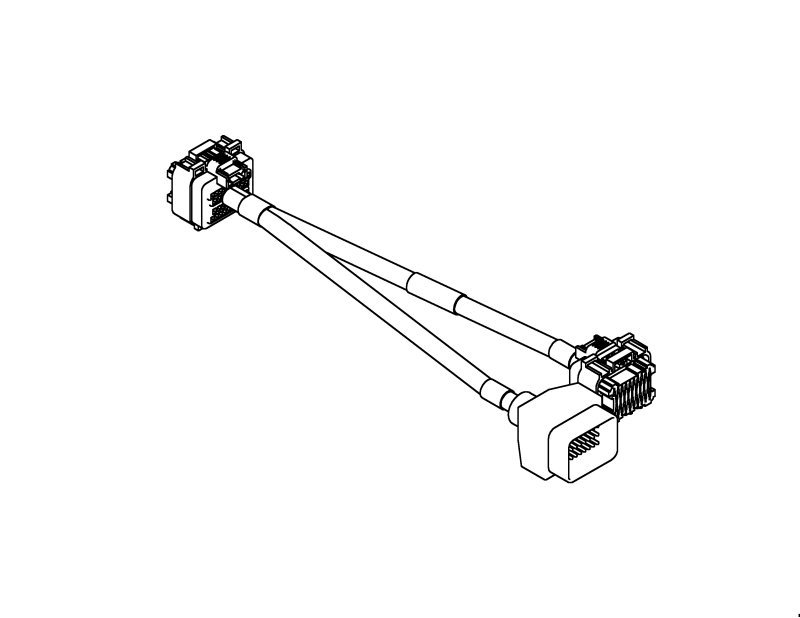

ADAPTER, ACM 56 WAY - 8443-25

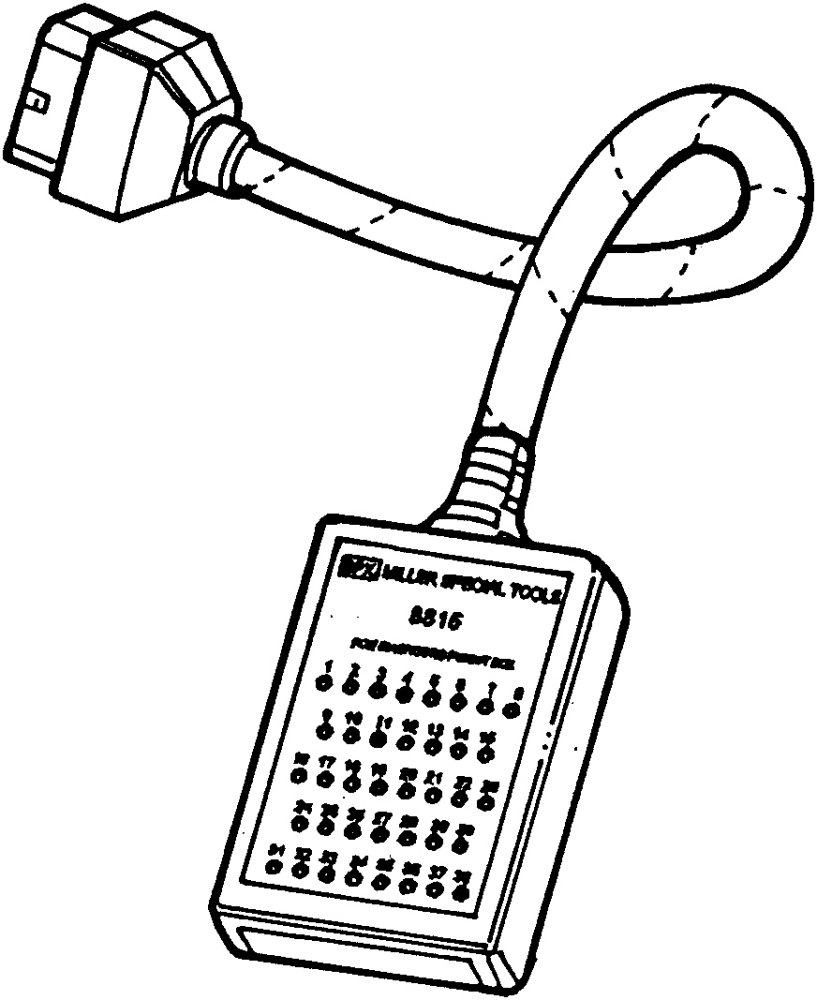

PINOUT BOX, PCM DIAGNOSTIC - 8815
PCM PINOUT BOX ADAPTER - 8815-1
