2009 Jeep Compass 2WD L4-2.0L
Power Steering Fluid: Service and Repair
2009 Jeep Compass 2WD L4-2.0LSECTION Service and Repair
POWER STEERING FLUID LEVEL CHECKING
WARNING: Fluid level should be checked with the engine OFF to prevent personal injury from moving parts and to assure an accurate fluid level reading.
CAUTION: Mopar(R) Power Steering Fluid + 4 or Mopar(R) ATF+4 Automatic Transmission Fluid is to be used in the power steering system. Both fluids have the same material standard specifications (MS-9602). No other power steering or automatic transmission fluid is to be used in the system. Damage may result to the power steering pump and system if another fluid is used. Do not overfill the system.
NOTE: Although not required at specific intervals, the fluid level may be checked periodically. Check the fluid level anytime there is a system noise or fluid leak suspected.

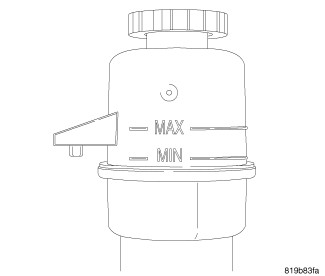

The power steering fluid level can be viewed through the side of the power steering fluid reservoir. Compare the fluid level to the markings on the side of the reservoir. When the fluid is at normal ambient temperature, approximately 21°C to 27°C (70°F to 80°F), the fluid level should read between the MAX. and MIN. markings. When the fluid is hot, fluid level is allowed to read up to the MAX. line.
