2009 Jeep Commander 4WD V8-5.7LFACTORY OEM SERVICE PROCEDURE
Engine Torque Specifications
TORQUE

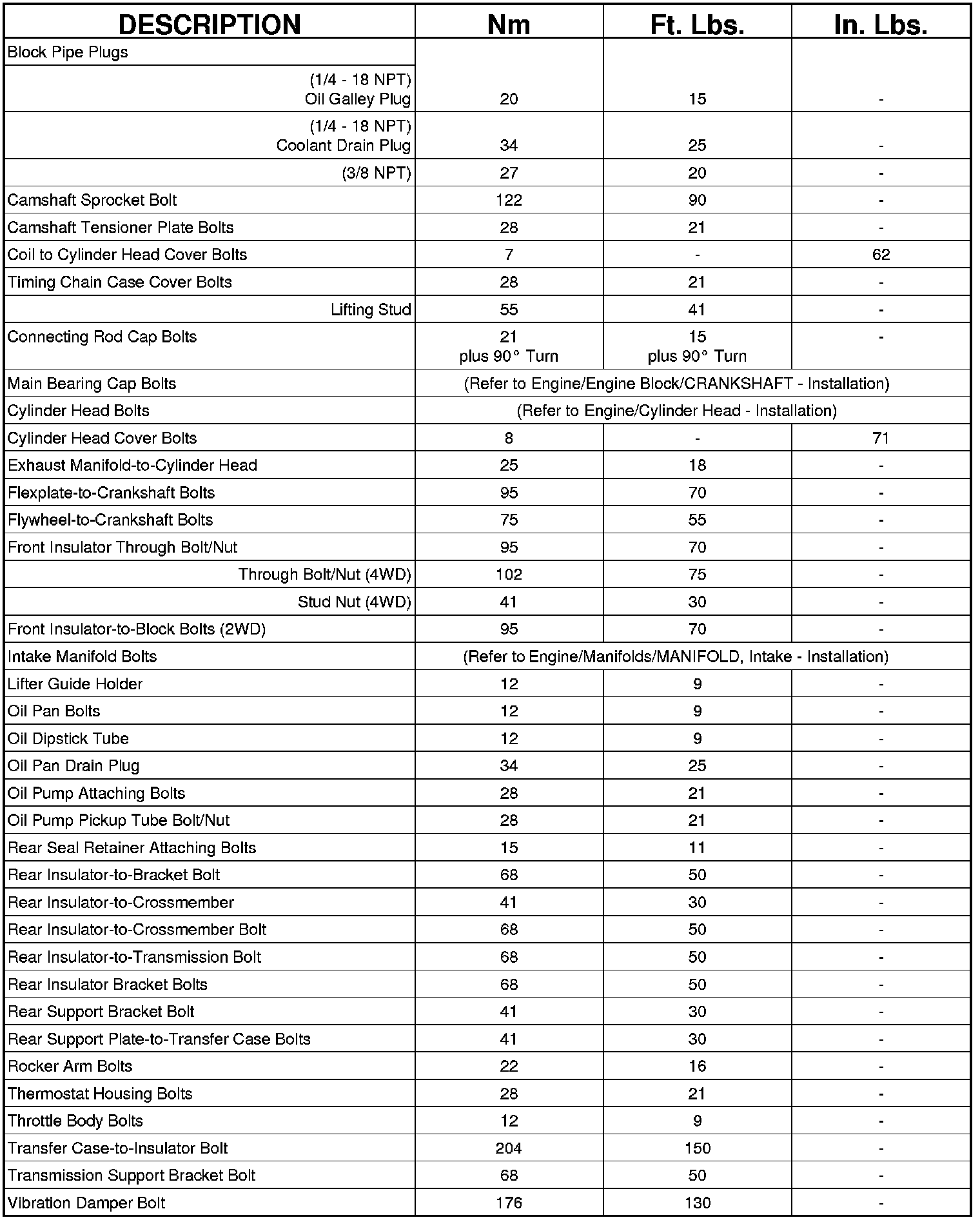

TORQUE CHART 5.7L ENGINE

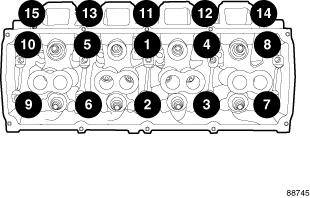

Cylinder Head Torque
Tighten cylinder head bolts 1 through 10 34 Nm (25 ft. lbs.)
Tighten cylinder head bolts 11 through 15 20 Nm (15 ft. lbs.)
Tighten cylinder head bolts 1 through 10 54 Nm (40 ft. lbs.)
Tighten cylinder head bolts 11 through 15 20 Nm (15 ft. lbs.)
Rotate cylinder head bolts 1 through 10 90°
Tighten cylinder head bolts 11 through 15 34 Nm (25 ft. lbs.)

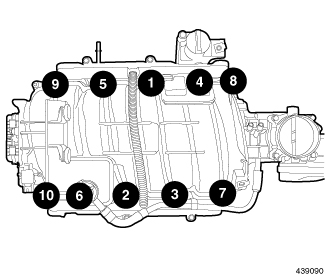

Intake Manifold
Intake Manifold Bolts 12 Nm (105 in.lbs.)
Main Bearing Cap Torque
Tighten main bearing cap bolts to 13 Nm ( 10 ft. lbs.) in the sequence shown.
Tighten main bearing cap bolts to 27 Nm ( 20 ft. lbs.) in the sequence shown.
Rotate main cap bolts an additional 90° in the sequence shown.
Install the crossbolts with new seal washer. Starting with crossbolt A,
Tighten crossbolt to 28 Nm ( 21 ft. lbs.).
Repeat crossbolt tightening procedure.

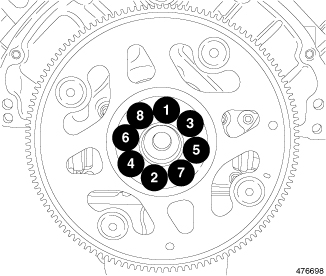

Flexplate

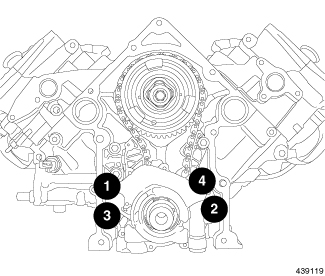

Oil Pump
Exhaust Manifold

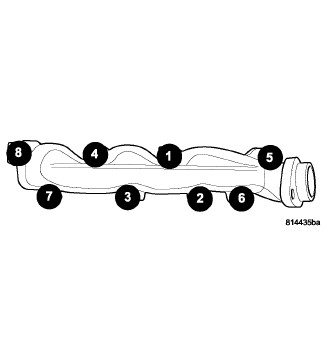

Left Side

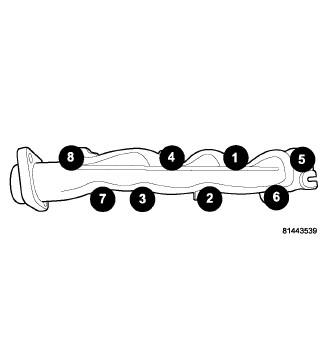

Right Side
