2009 Jeep Commander 4WD V8-5.7LFACTORY OEM SERVICE PROCEDURE
Engine - Specifications

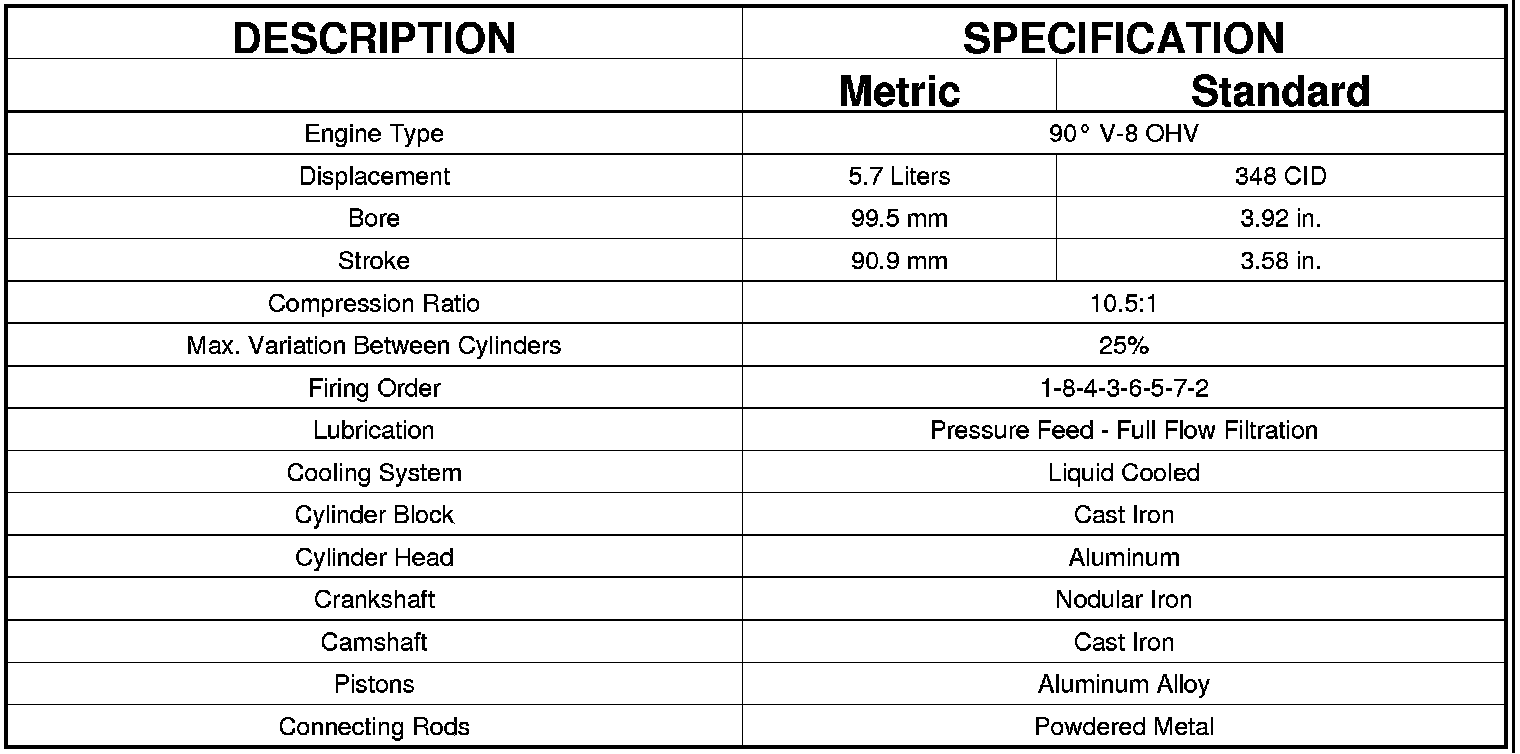

SPECIFICATIONS

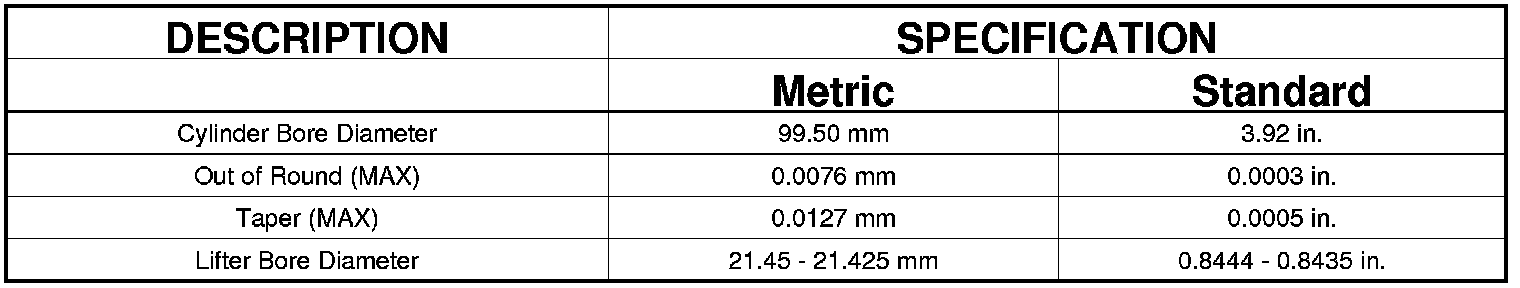

CYLINDER BLOCK

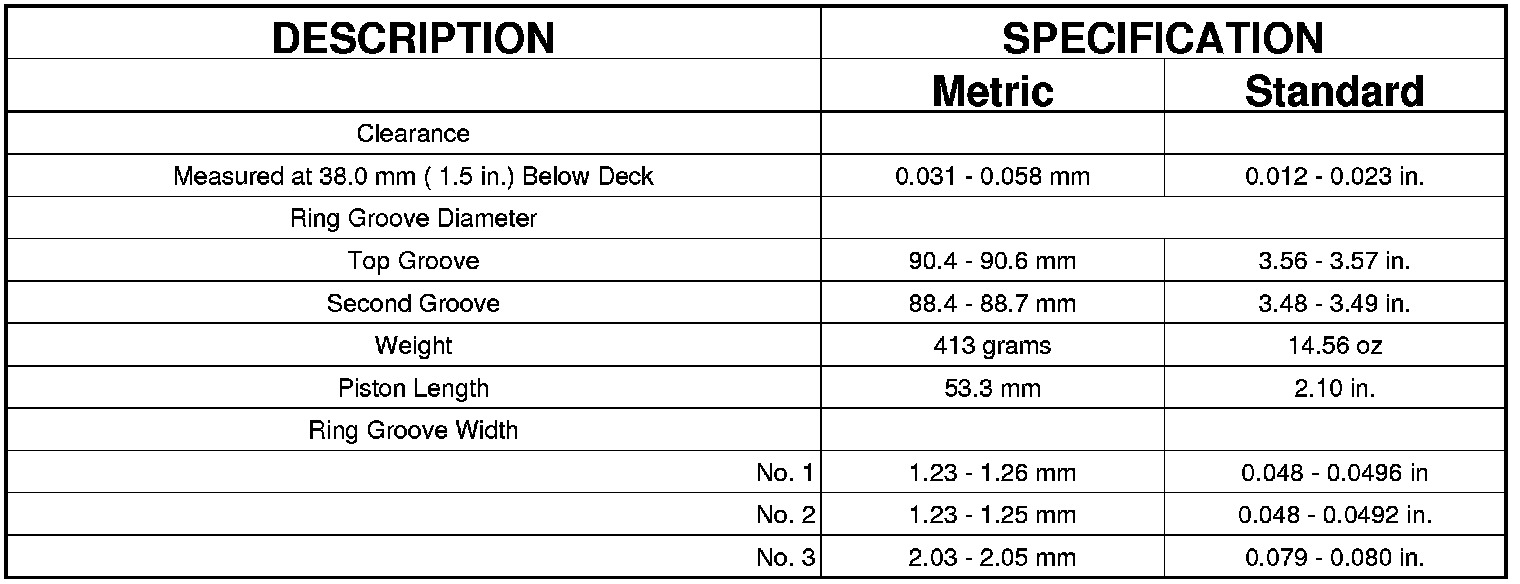

PISTONS

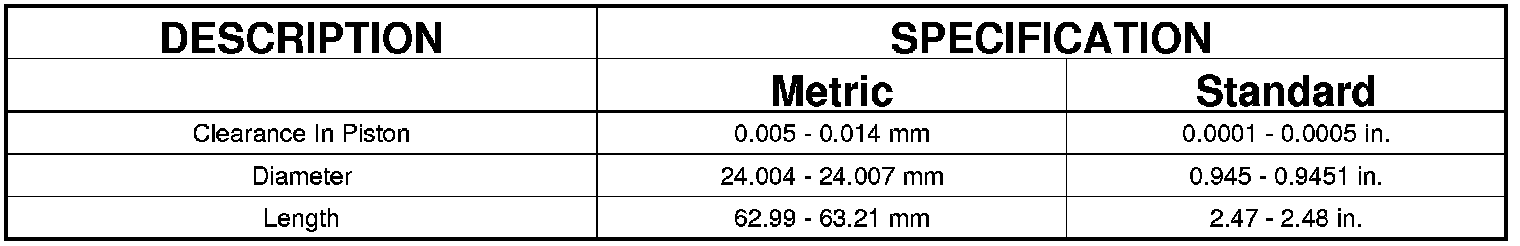

PISTON PINS

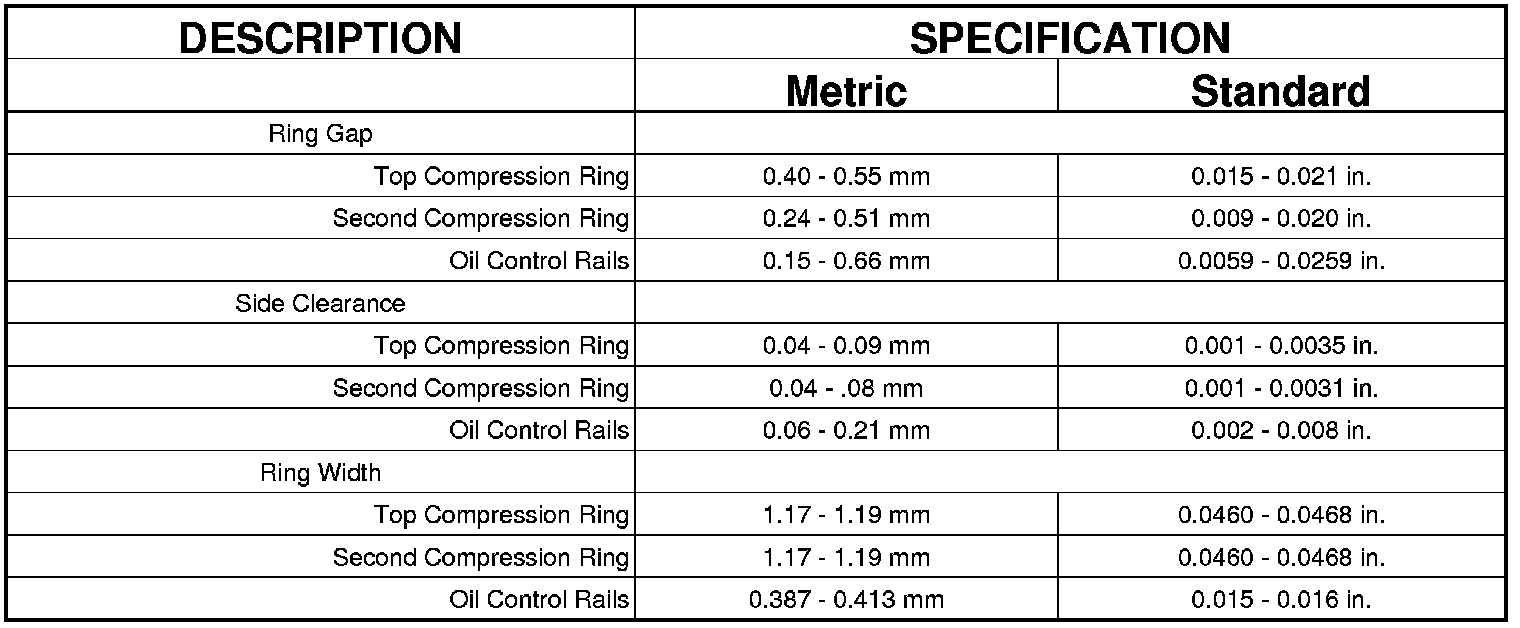

PISTON RINGS

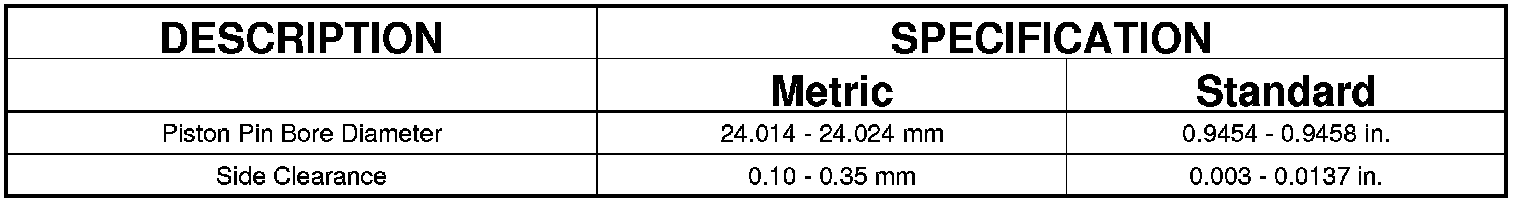

CONNECTING RODS

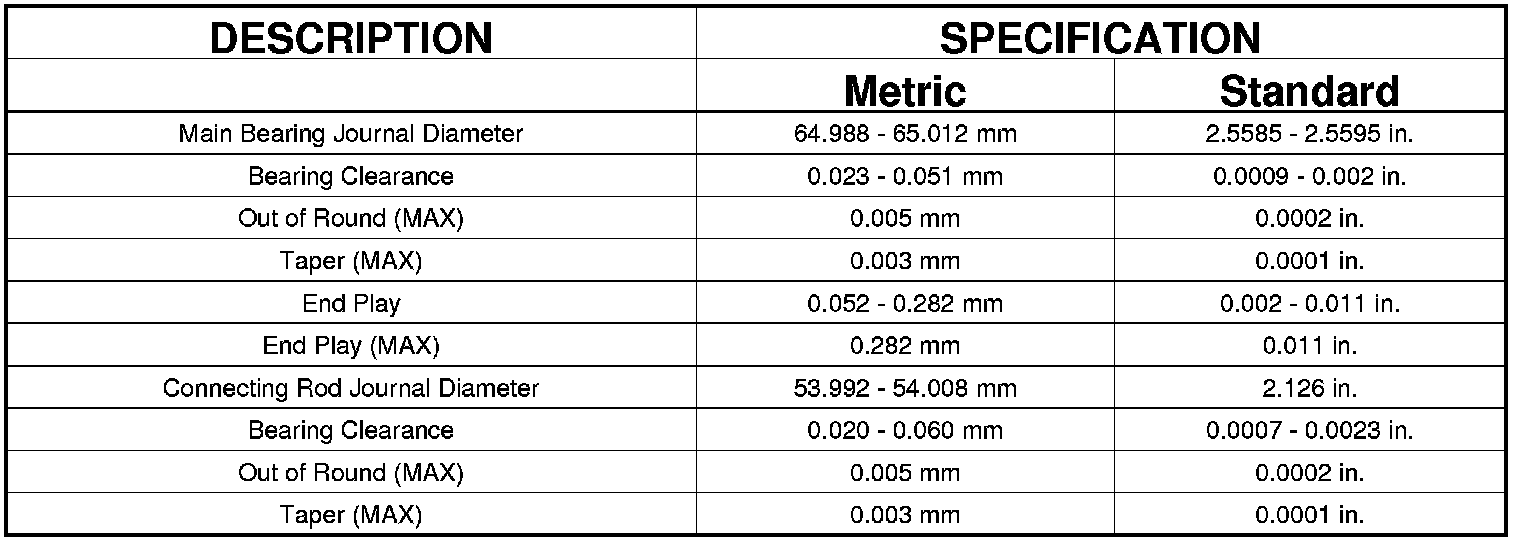

CRANKSHAFT

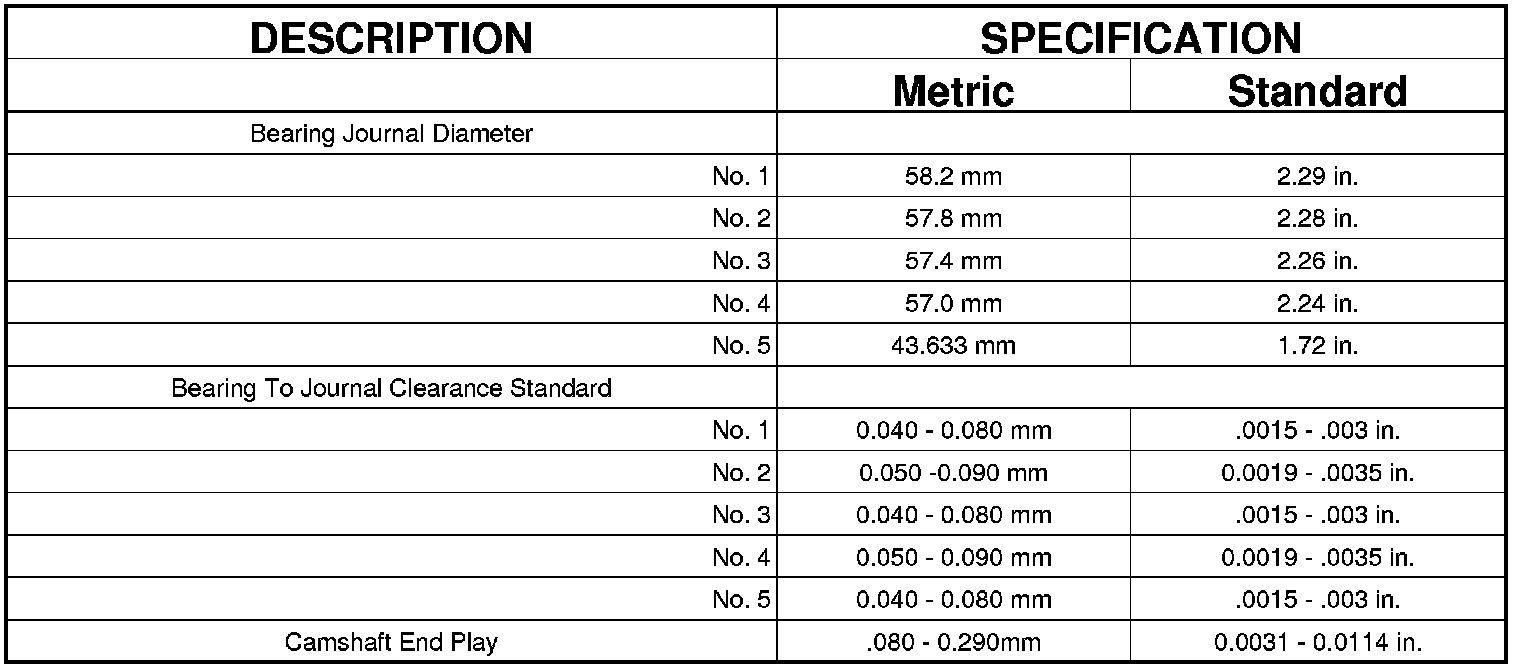

CAMSHAFT

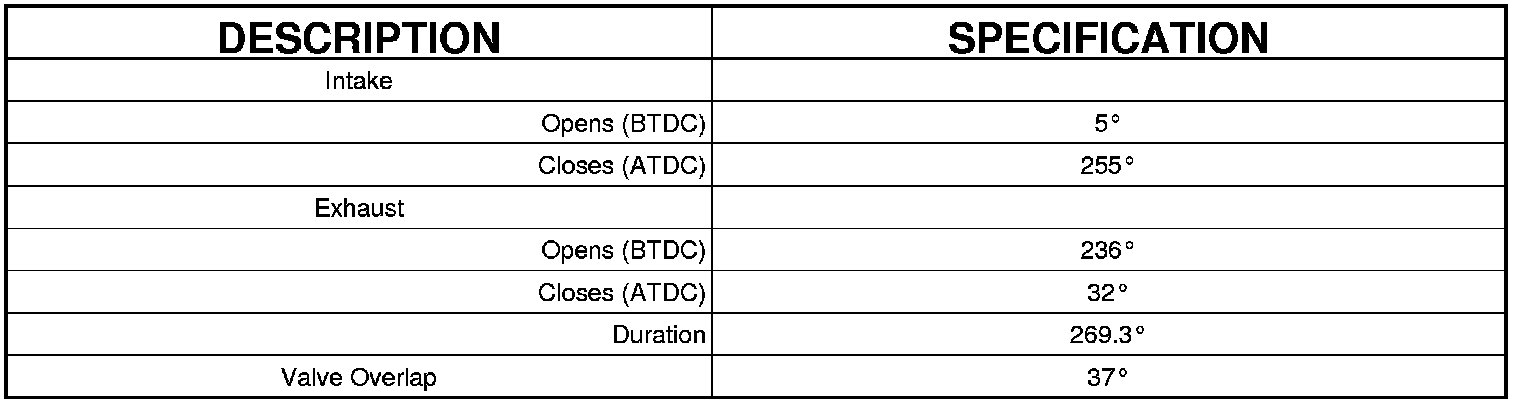

VALVE TIMING

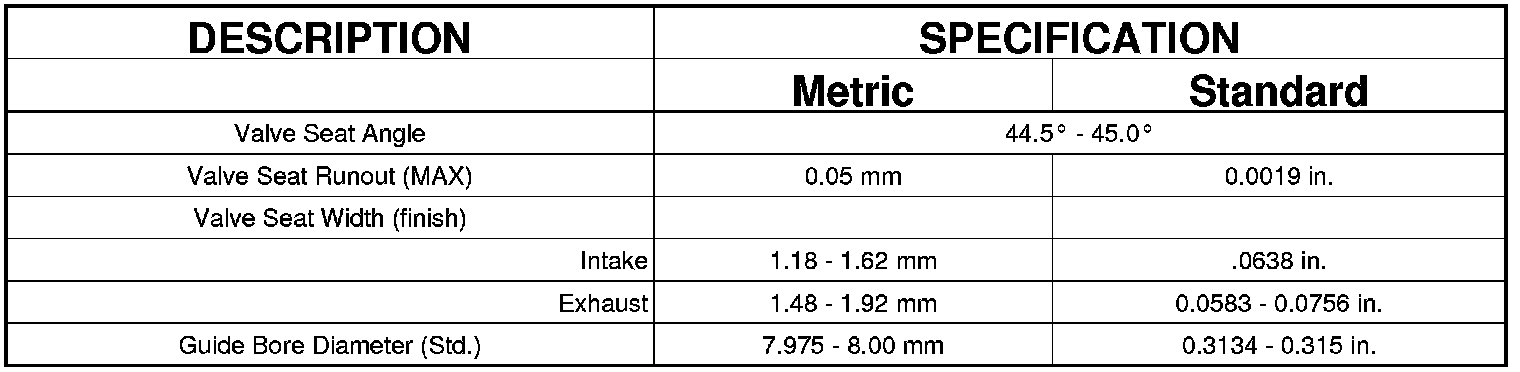

CYLINDER HEAD

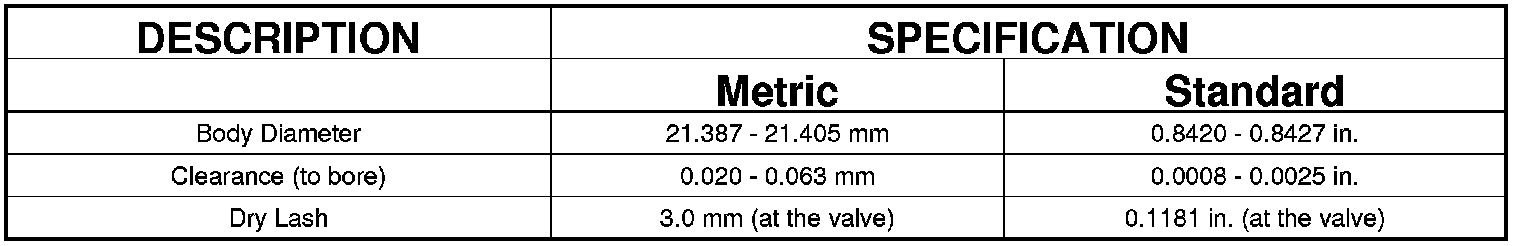

HYDRAULIC TAPPETS

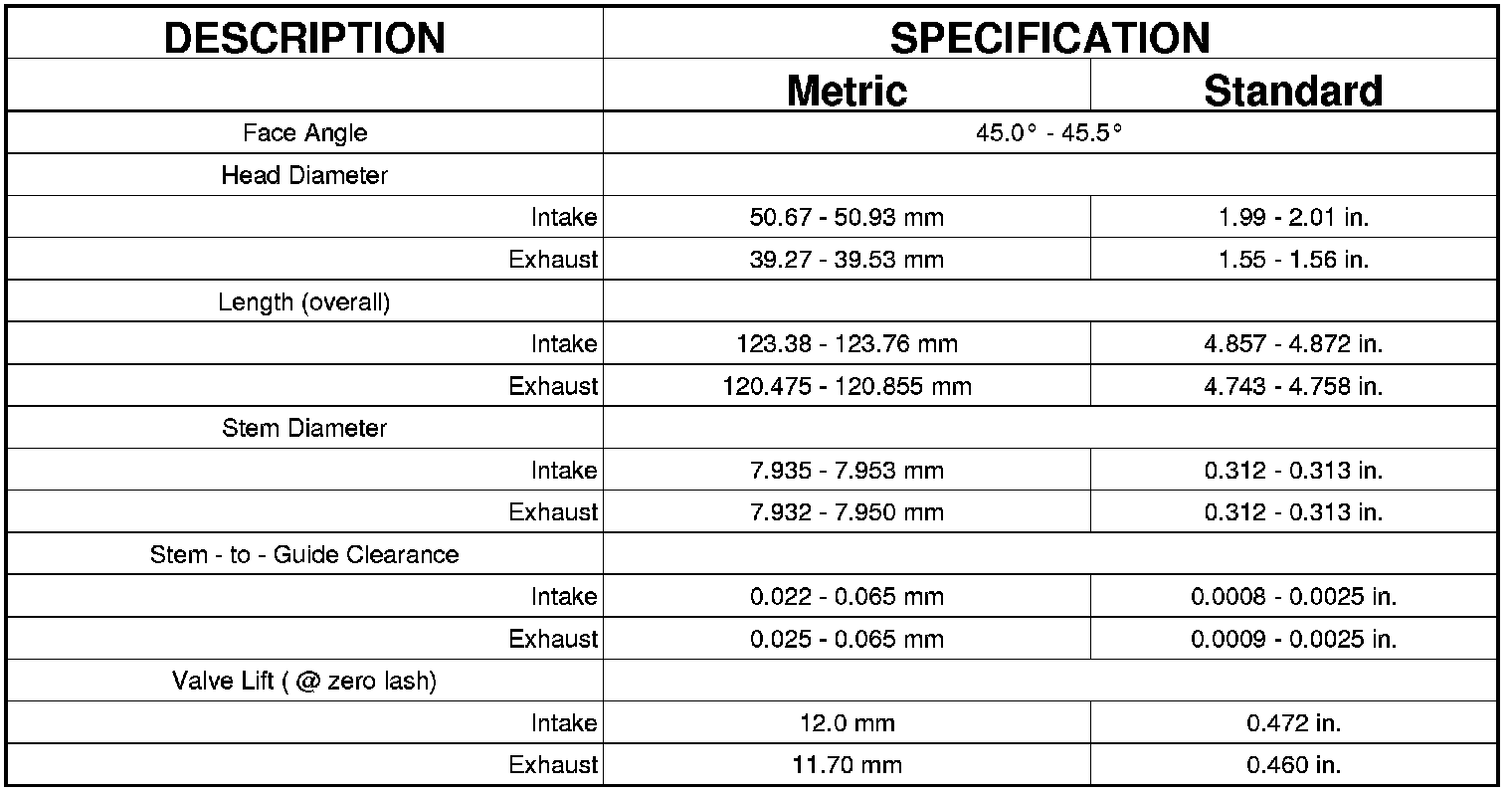

VALVES

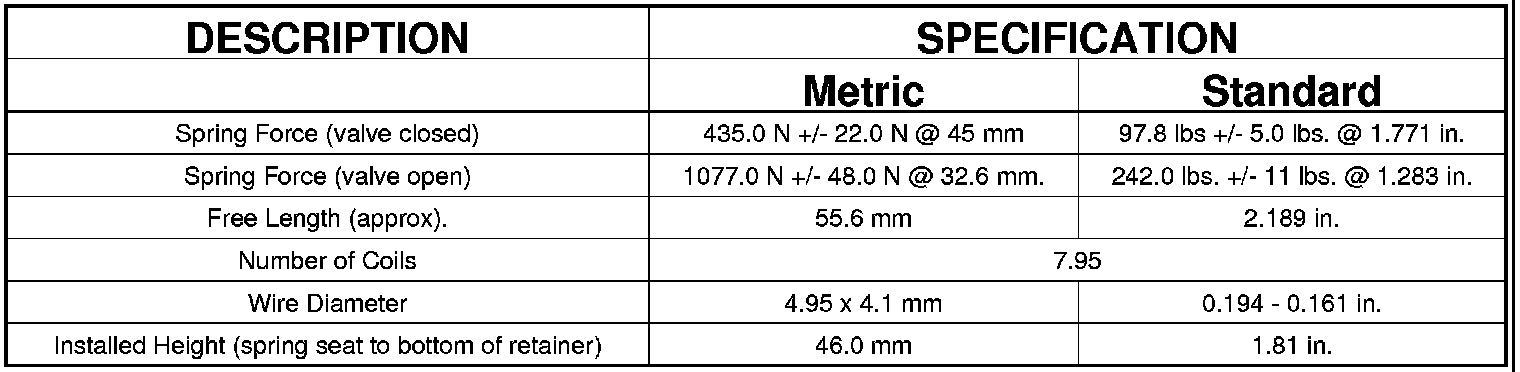

VALVE SPRING
OIL PUMP
OIL PRESSURE
