2009 Jeep Commander 4WD V8-5.7LFACTORY OEM SERVICE PROCEDURE
Power Liftgate Control Module - Installation
INSTALLATION

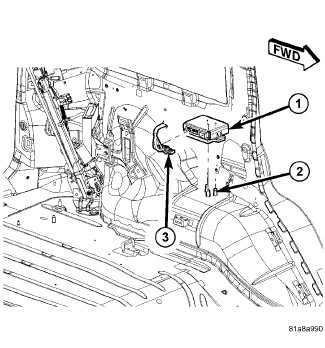

1. Position the power liftgate control module (1) into the vehicle.
2. Install the power liftgate control module (1) onto the retaining tabs of the left rear wheel well (2).
3. Connect the wire harness connectors (3) to the power liftgate control module (1).
4. Install the left quarter trim panel, Quarter Trim Panel - Installation.
5. Connect the battery negative cable.
6. Using an appropriate scan tool, check and erase any power liftgate control module diagnostic trouble codes.
7. Perform the power liftgate learn cycle, Programming and Relearning.
8. Verify power liftgate system operation.
