Power Inverter Module - Installation
2009 Jeep Commander 4WD V8-5.7LSECTION Power Inverter Module - Installation
INSTALLATION
1. Install power inverter into the mounting bracket.
2. Connect the power inverter electrical connectors.

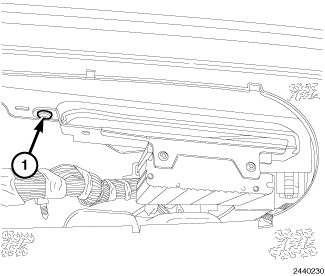

3. Install the rearward retainer (1).

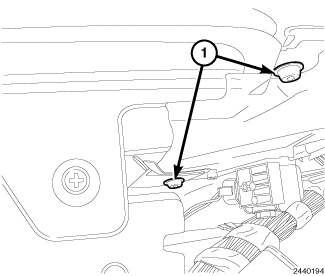

4. Install the two forward retainers (1).

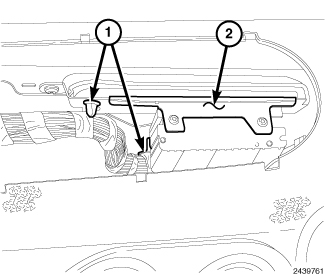

5. Connect the harness push pin (1) to the power inverter bracket (2).

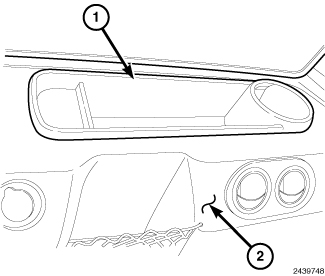

6. Instal the cup holder/bin (1) to the drivers side quarter panel (2).
7. Connect the negative battery cable.
