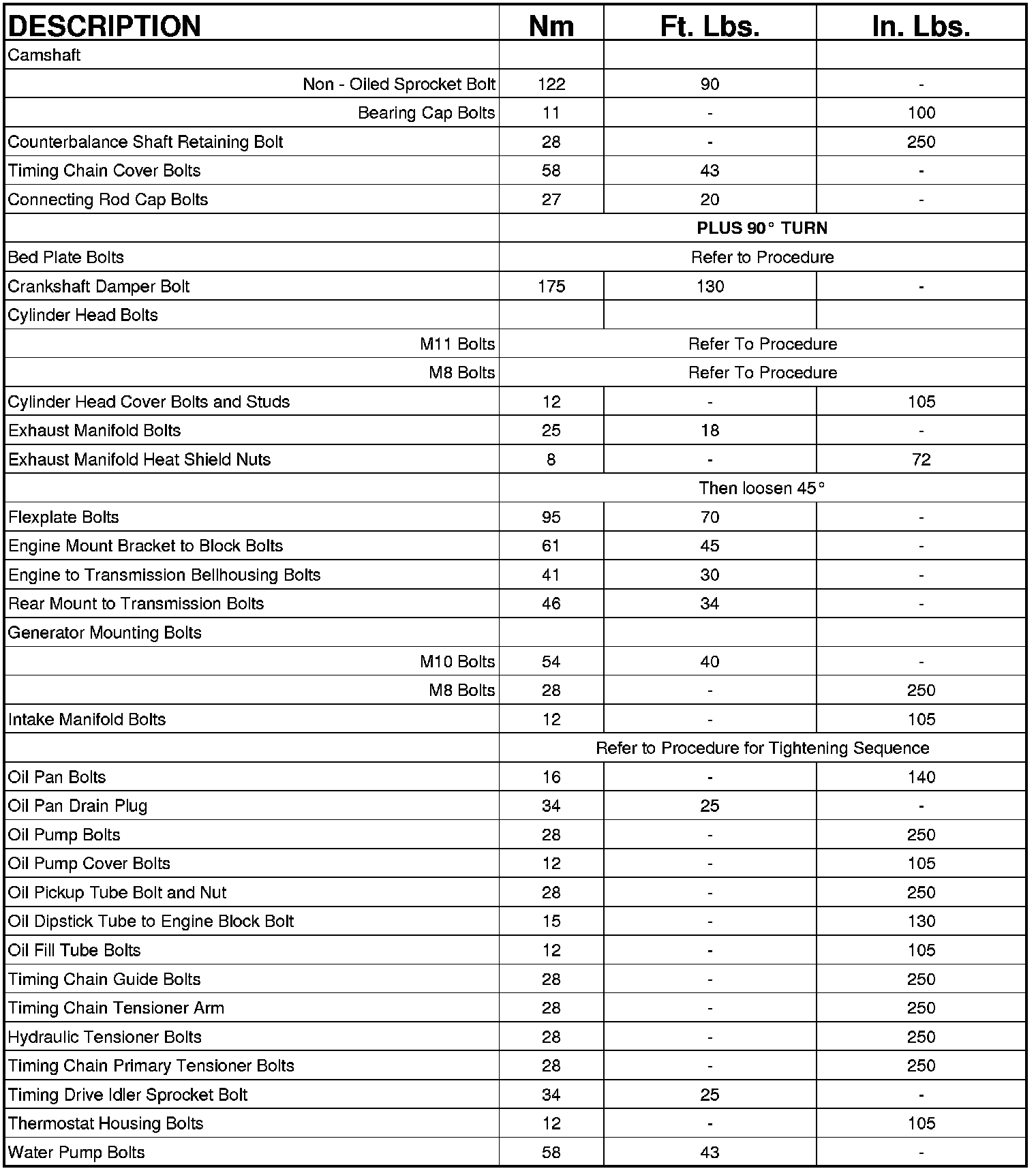

Engine Torque Specifications

TORQUE

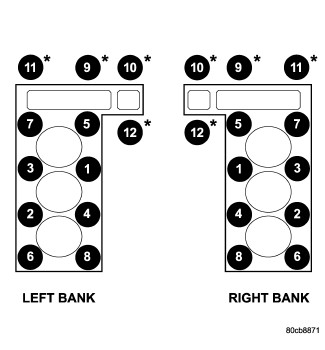

Cylinder Head Torque





Step 1: Tighten bolts 1-8 27 Nm (20 ft. lbs.).
Step 2: Verify that bolts 1-8 all reached 27 Nm (20 ft. lbs.), by repeating step 1 without loosening the bolts. Tighten bolts 9 thru 12 to 14 Nm (10 ft. lbs.).
Step 3: Tighten bolts 1-8 90 °.
Step 4: Tighten bolts 1-8 90 °, again. Tighten bolts 9-12, 26 Nm (19 ft. lbs.)

Head Bolt Reuse/Replace





The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts should be replaced.

Intake Manifold

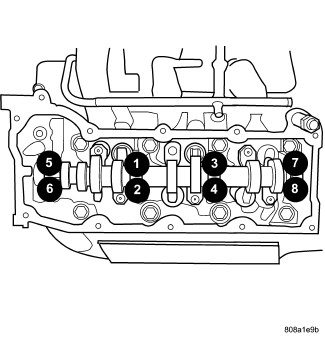

Camshaft Bearing Cap

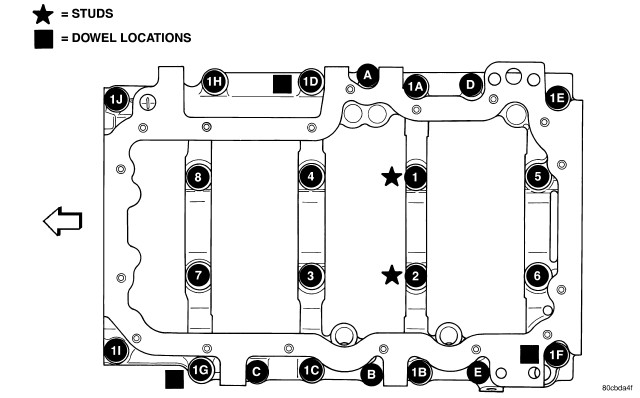

Main Bearing Cap Torque





Hand tighten bolts 1D,1G and 1F until the bedplate contacts the block.
Tighten bolts 1A - 1J 54 Nm (40 ft. lbs.)
Tighten bolts 1 - 8 7 Nm (62 in. lbs.)
Turn bolts 1 - 8 an additional 90°.
Tighten bolts A - E 27 Nm ( 20 ft. lbs.).

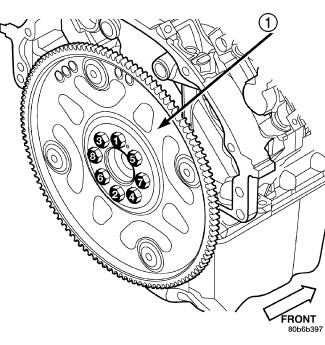

Flex Plate

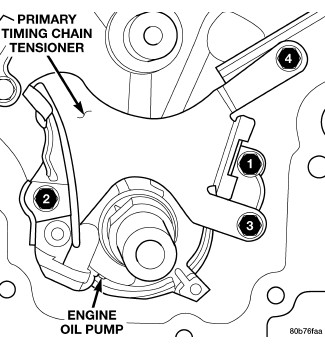

Oil Pump





Exhaust Manifold

Start at the center arm and working outward.

Water Pump
