2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
Battery: Diagrams
Component ID: 21
Component : BATTERY
Connector:

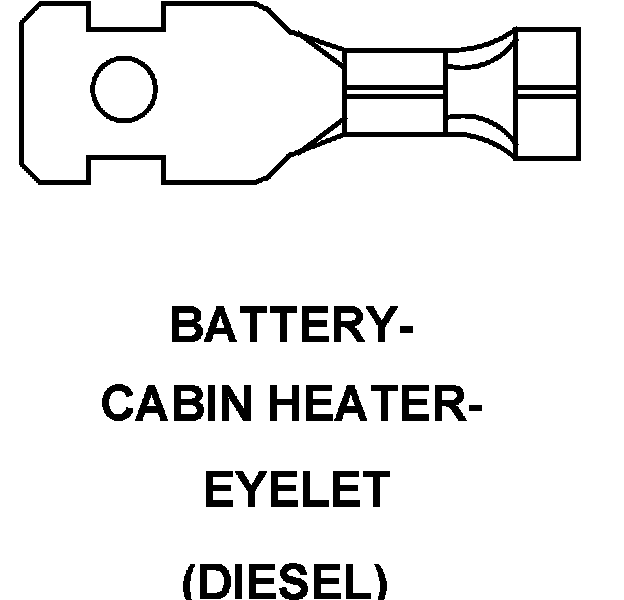

Name : BATTERY-CABIN HEATER-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL)
Pin Circuit Description
1 A2 6RD B(+)

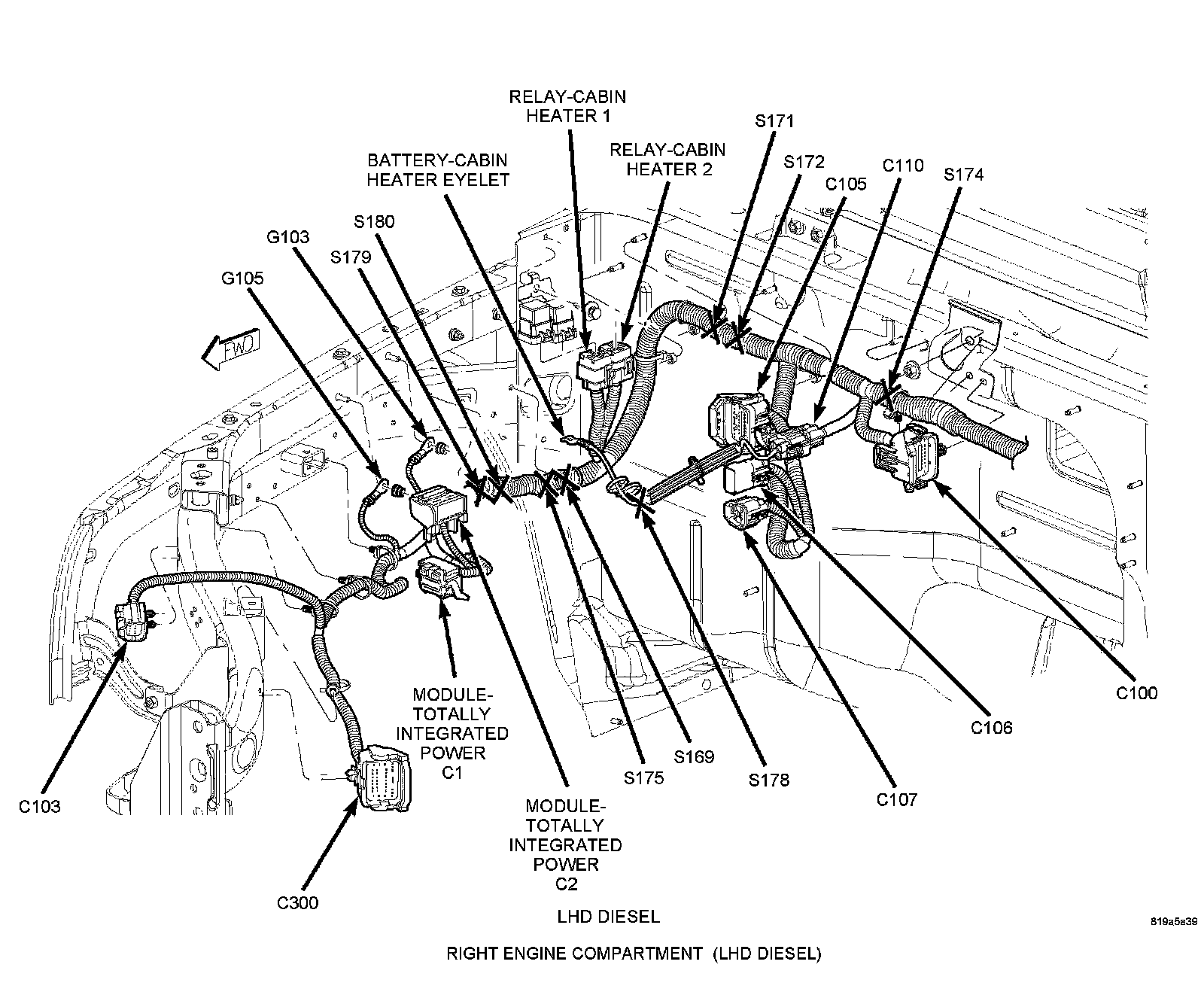

Component Location - 1

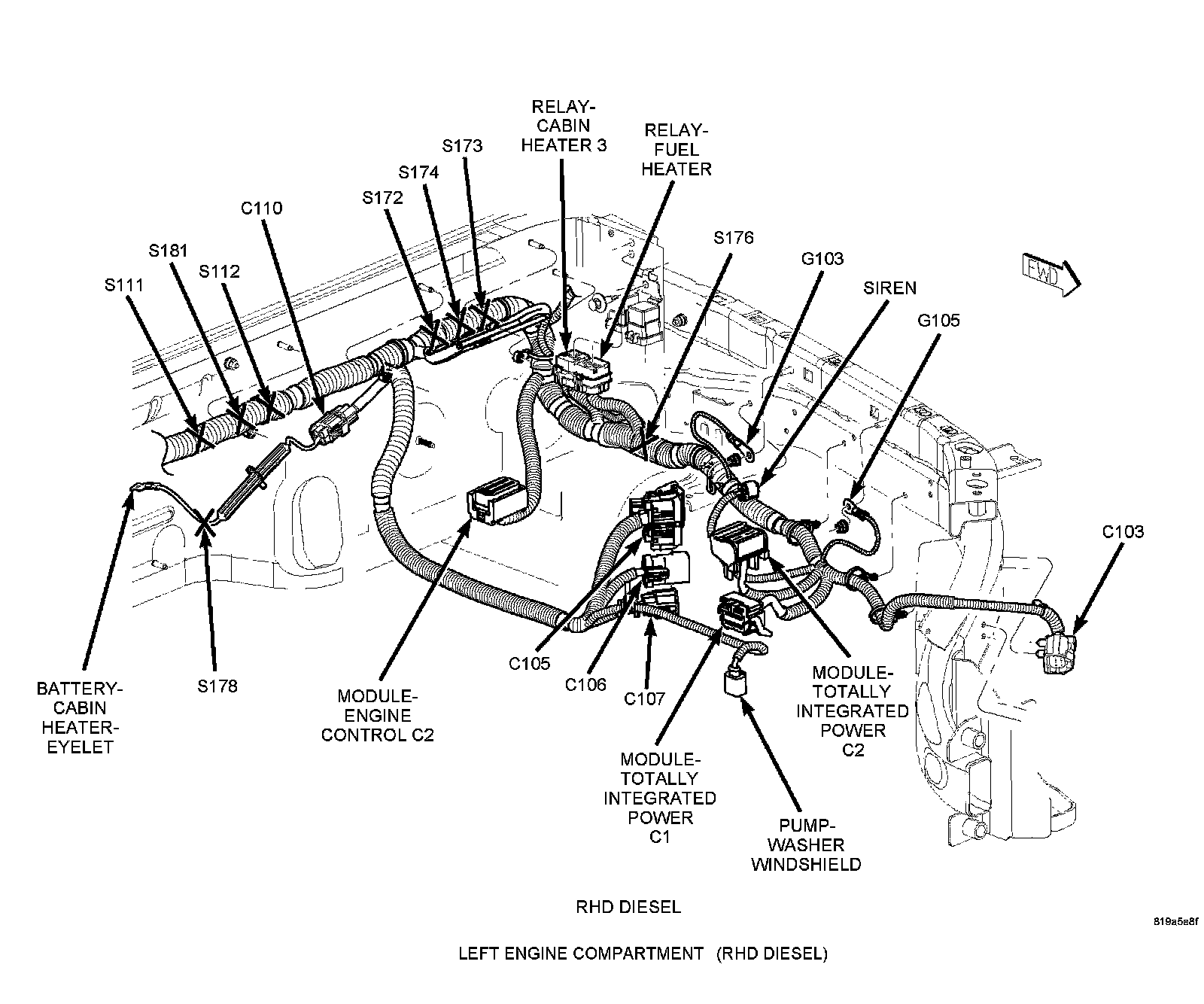

Component Location - 10
Component Location - 9
Connector:

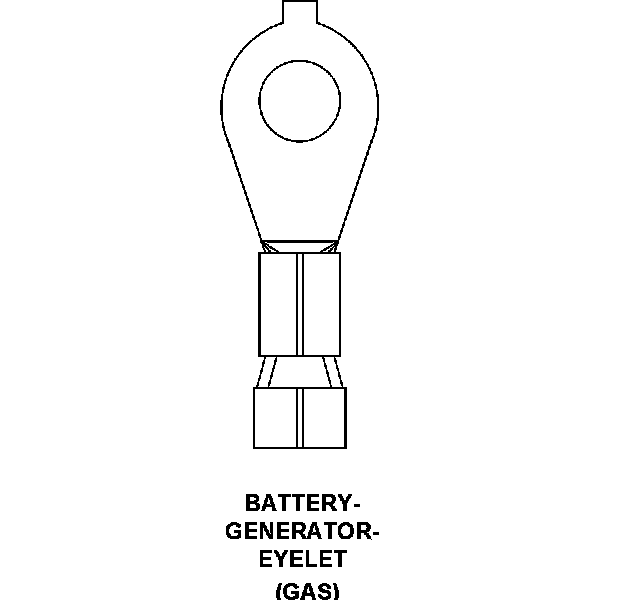

Name : BATTERY-GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (GAS)
Pin Circuit Description
1 A1 10DG B(+)
Component Location - 1
Component Location - 10
Component Location - 9

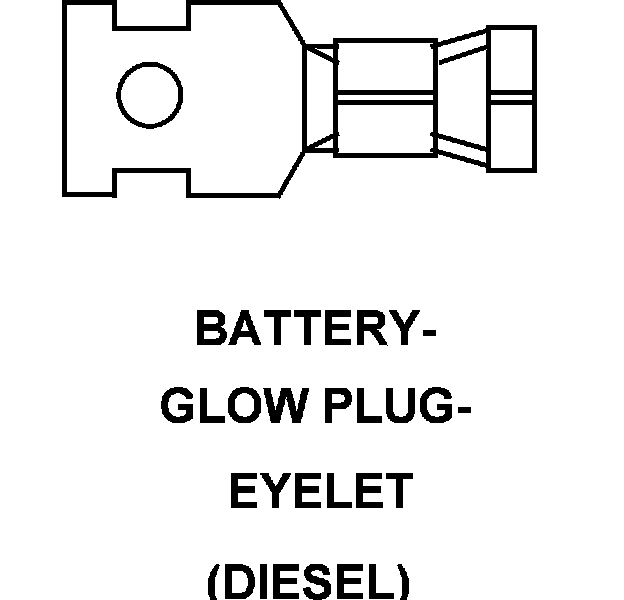

Connector:
Name : BATTERY-GLOW PLUG-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL)
Pin Circuit Description
1 A1 4RD B(+)
Component Location - 1
Component Location - 10
Component Location - 9

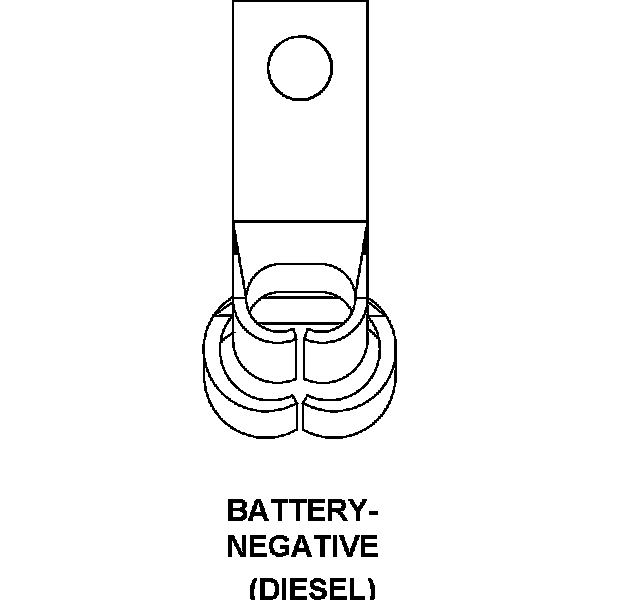

Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1
Qualifier : (DIESEL)
Pin Circuit Description
1 Z902 4BK GROUND
Pin Circuit Description
1 Z901 6BK GROUND
Component Location - 1
Component Location - 10
Component Location - 9

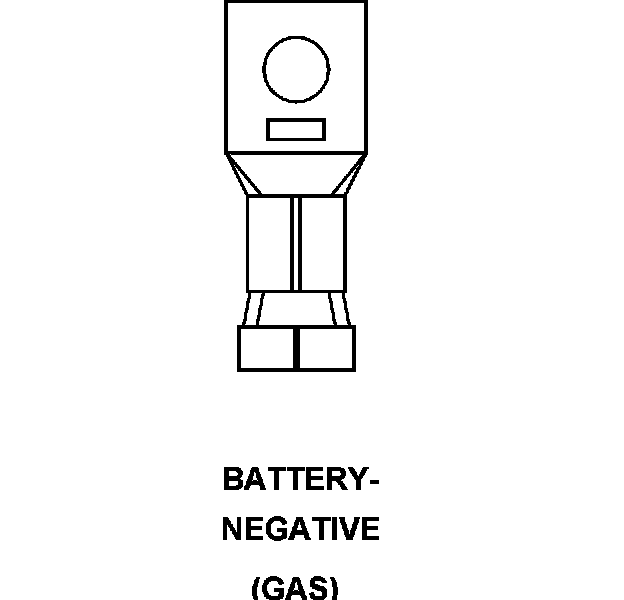

Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1
Qualifier : (GAS)
Pin Circuit Description
1 Z901 6BK GROUND
Pin Circuit Description
1 Z902 6BK GROUND

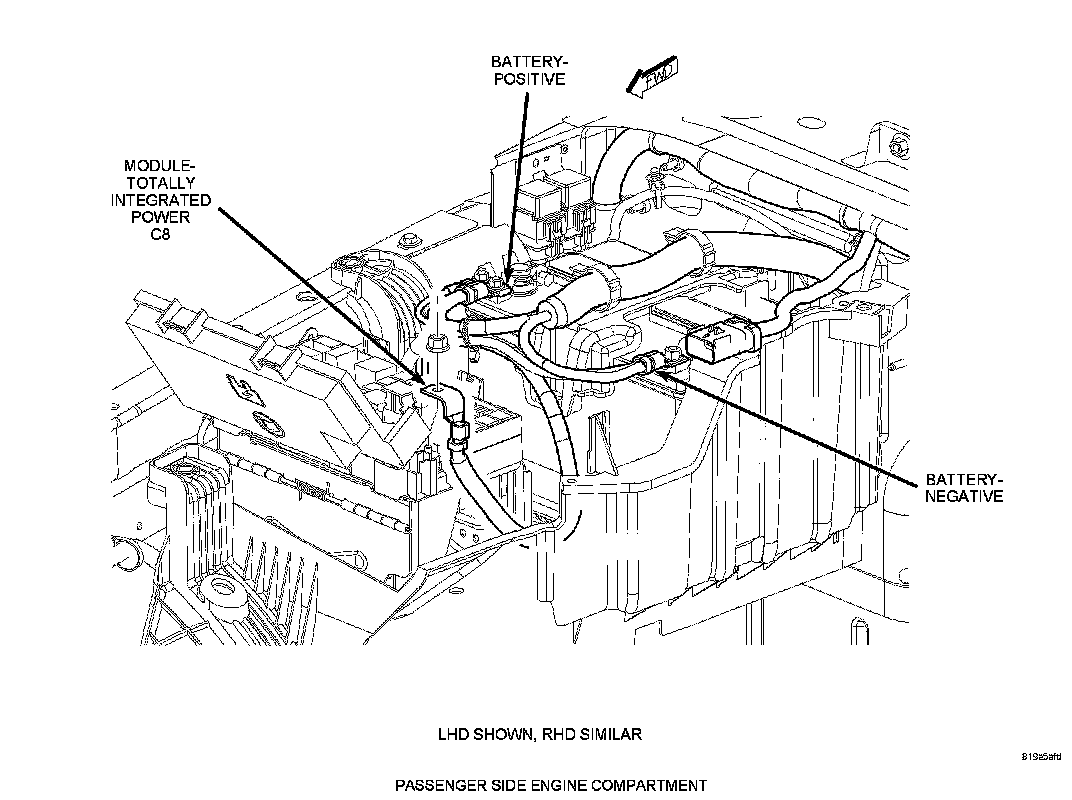

Component Location - 1
Component Location - 10
Component Location - 9
Connector:

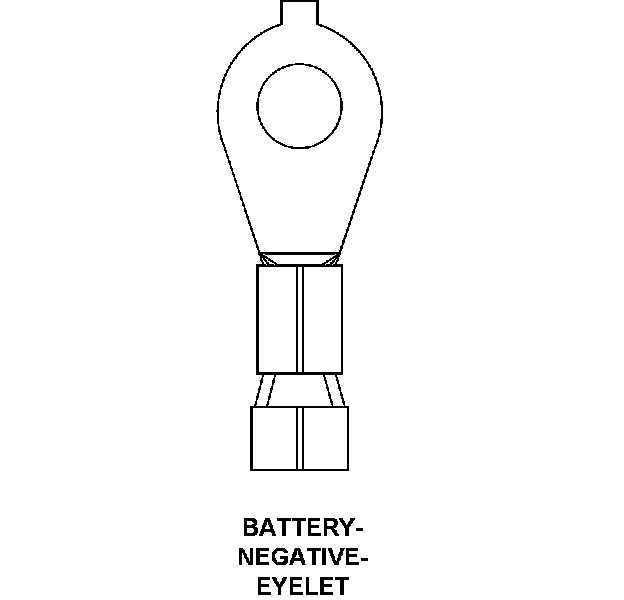

Name : BATTERY-NEGATIVE-EYELET
Color :
# of pins : 1
Pin Circuit Description
1 Z903 10BK/LG GROUND
Component Location - 1
Component Location - 10
Component Location - 9

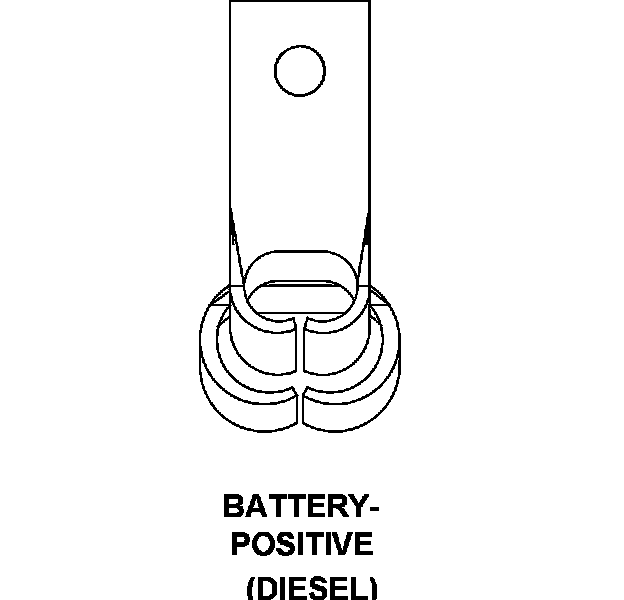

Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)
Pin Circuit Description
1 A0 2RD B(+)
Pin Circuit Description
1 A0 6RD B(+)
Pin Circuit Description
1 A1 4RD B(+)
Component Location - 1
Component Location - 10
Component Location - 9

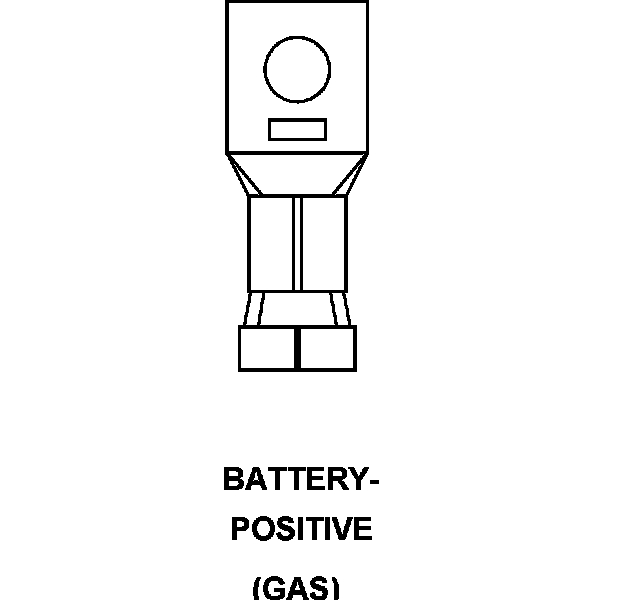

Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (GAS)
Pin Circuit Description
1 A0 4RD B(+)
Pin Circuit Description
1 A0 6RD B(+)
Component Location - 1
Component Location - 10
Component Location - 9
