2008 Jeep Wrangler 4WD V6-3.8L
Installation
2008 Jeep Wrangler 4WD V6-3.8LSECTION Installation
INSTALLATION
CAUTION: Whenever the fuel pump module is serviced, the rubber seal (gasket) must be replaced.
1. Using a new seal (gasket), position fuel pump module into opening in fuel tank.

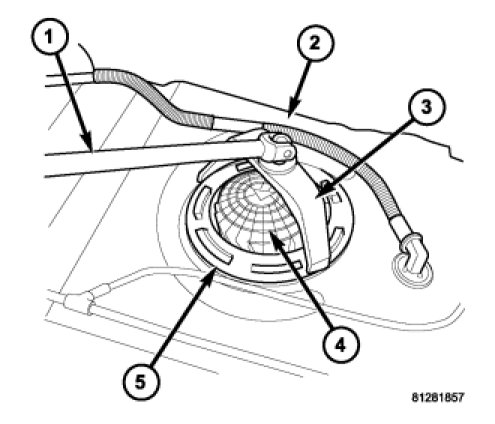

2. Position lockring (5) over top of fuel pump module.
3. Rotate module until embossed alignment arrow points to center alignment mark. This step must be performed to prevent float from contacting side of fuel tank.
4. Install Lockring Remover/Installer 9340 (3) to lockring.
5. Install 1/2 inch drive breaker (1) into Lockring Remover/Installer 9340 (3).
6. Tighten lockring (clockwise) until all seven notches have engaged.
7. Install fuel tank.
