2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
Engine Specifications
3.8L ENGINE
General Description:
Cylinder Block:
Crankshaft:
Connecting Rods:
Pistons:
Piston Pins:
Piston Rings:

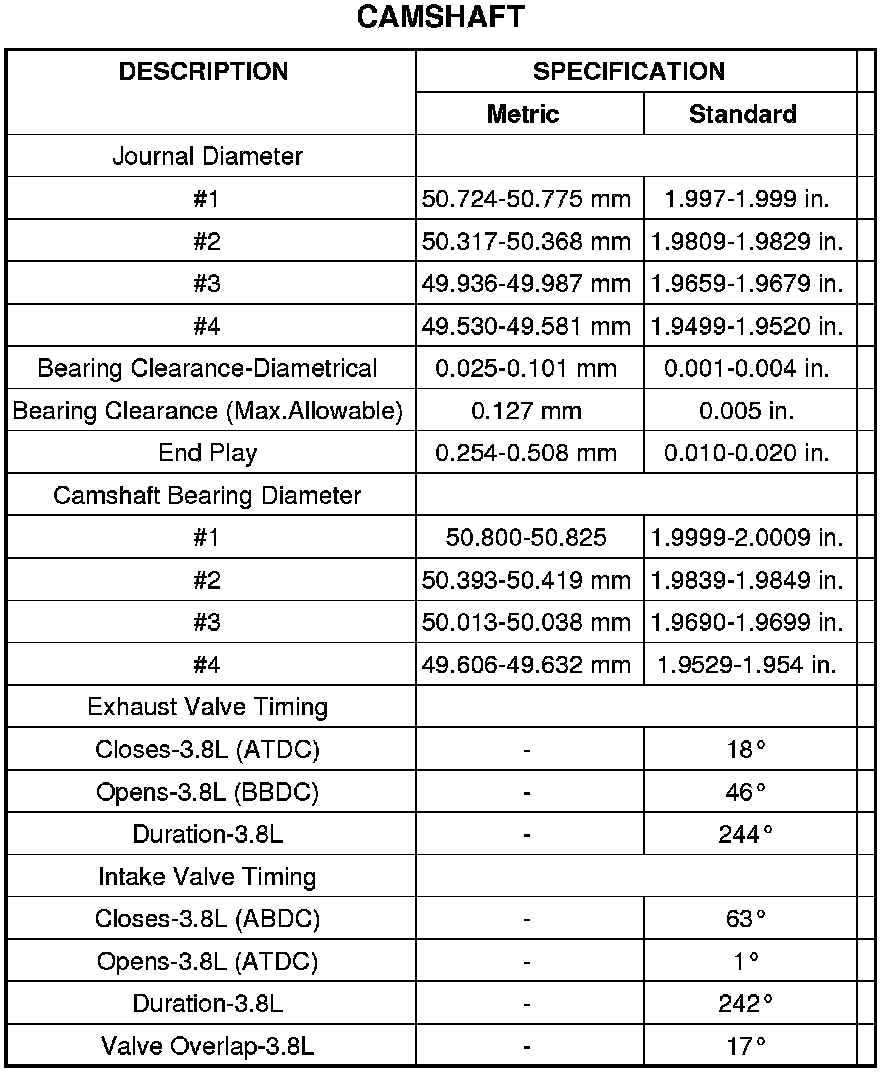

Camshaft:

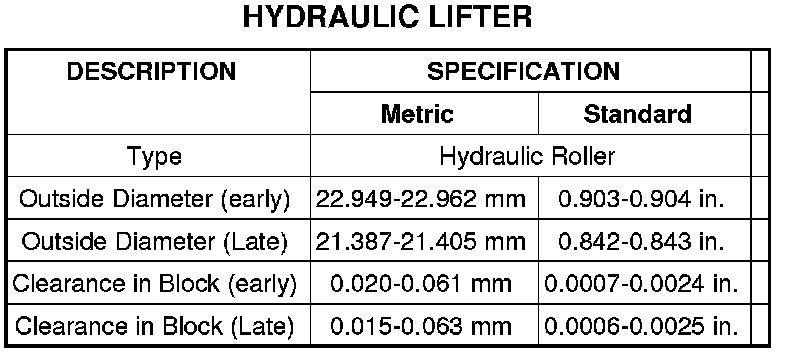

Hydraulic Lifter:

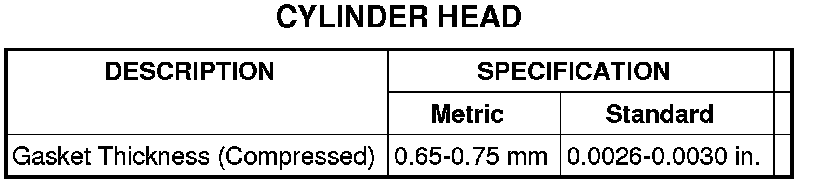

Cylinder Head:

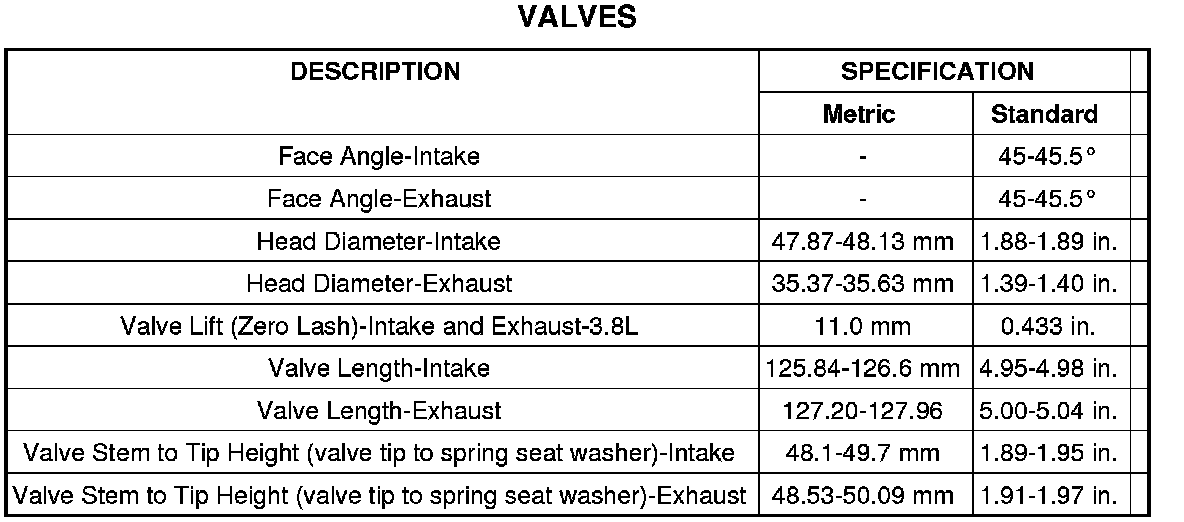

Valves:

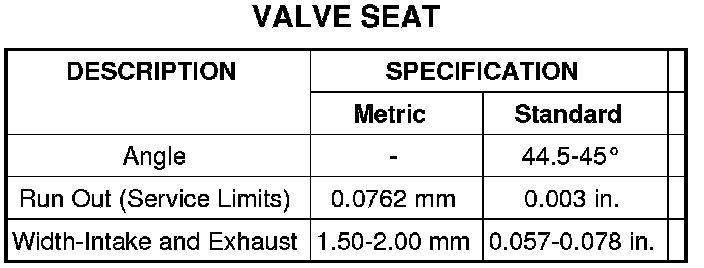

Valve Seat:

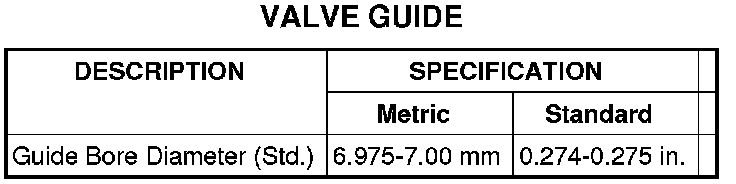

Valve Guide:

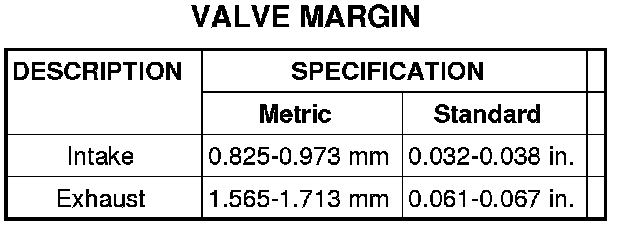

Valve Margin:

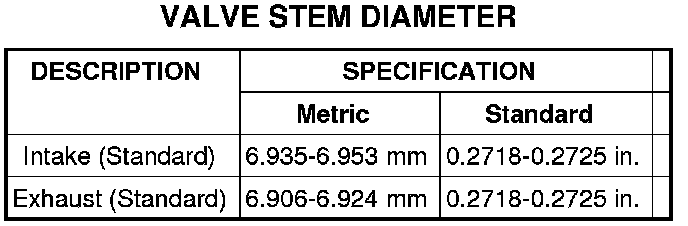

Valve Stem Diameter:

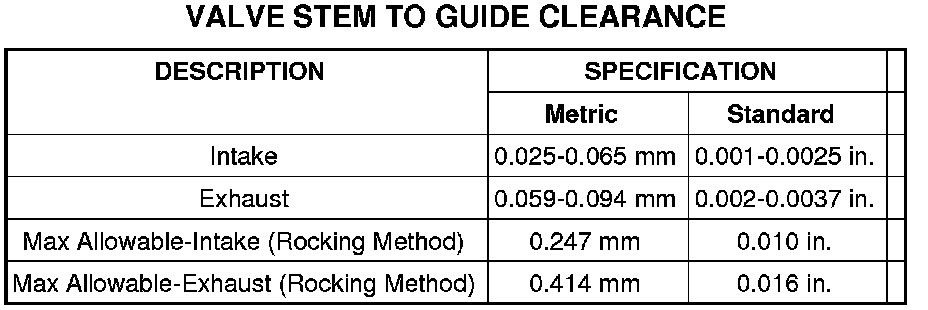

Valve Stem To Guide Clearance:

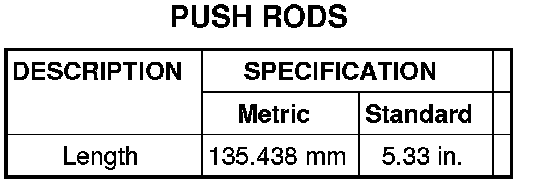

Push Rods:

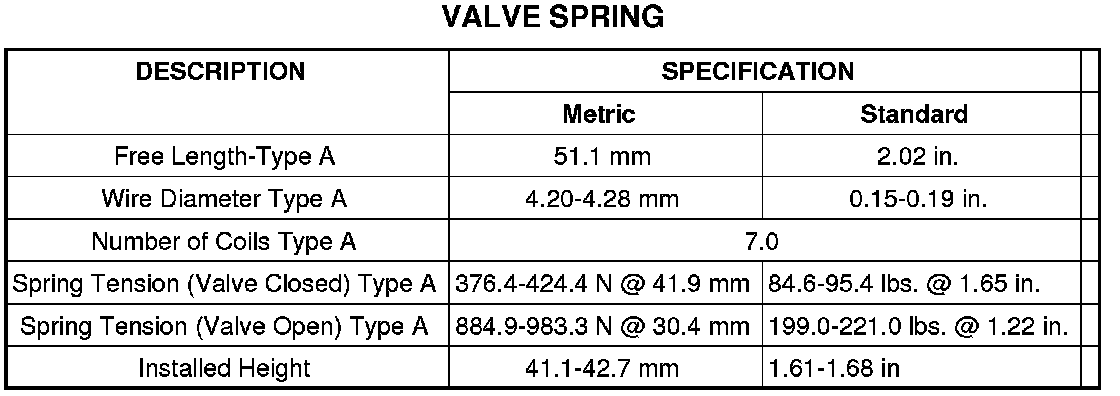

Valve Spring:

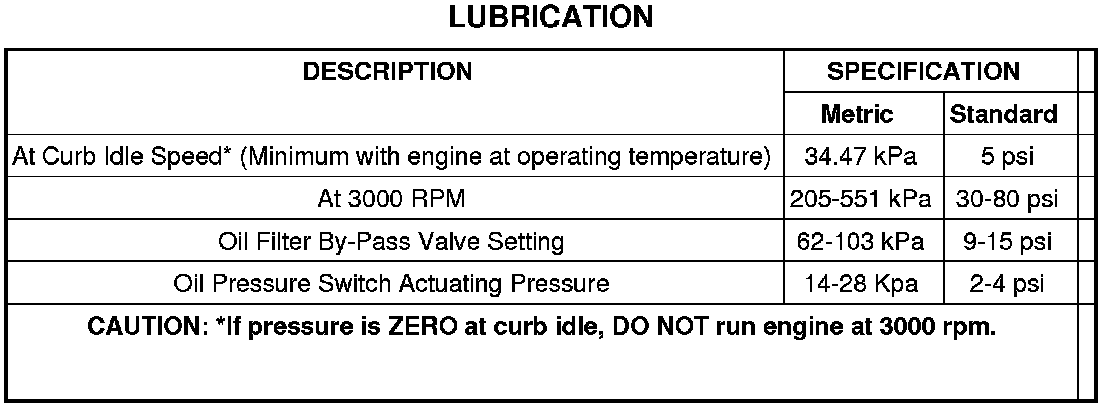

Lubrication:

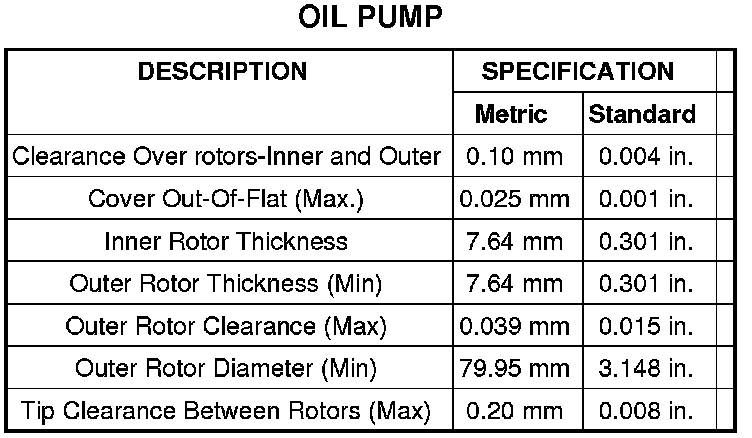

Oil Pump:
